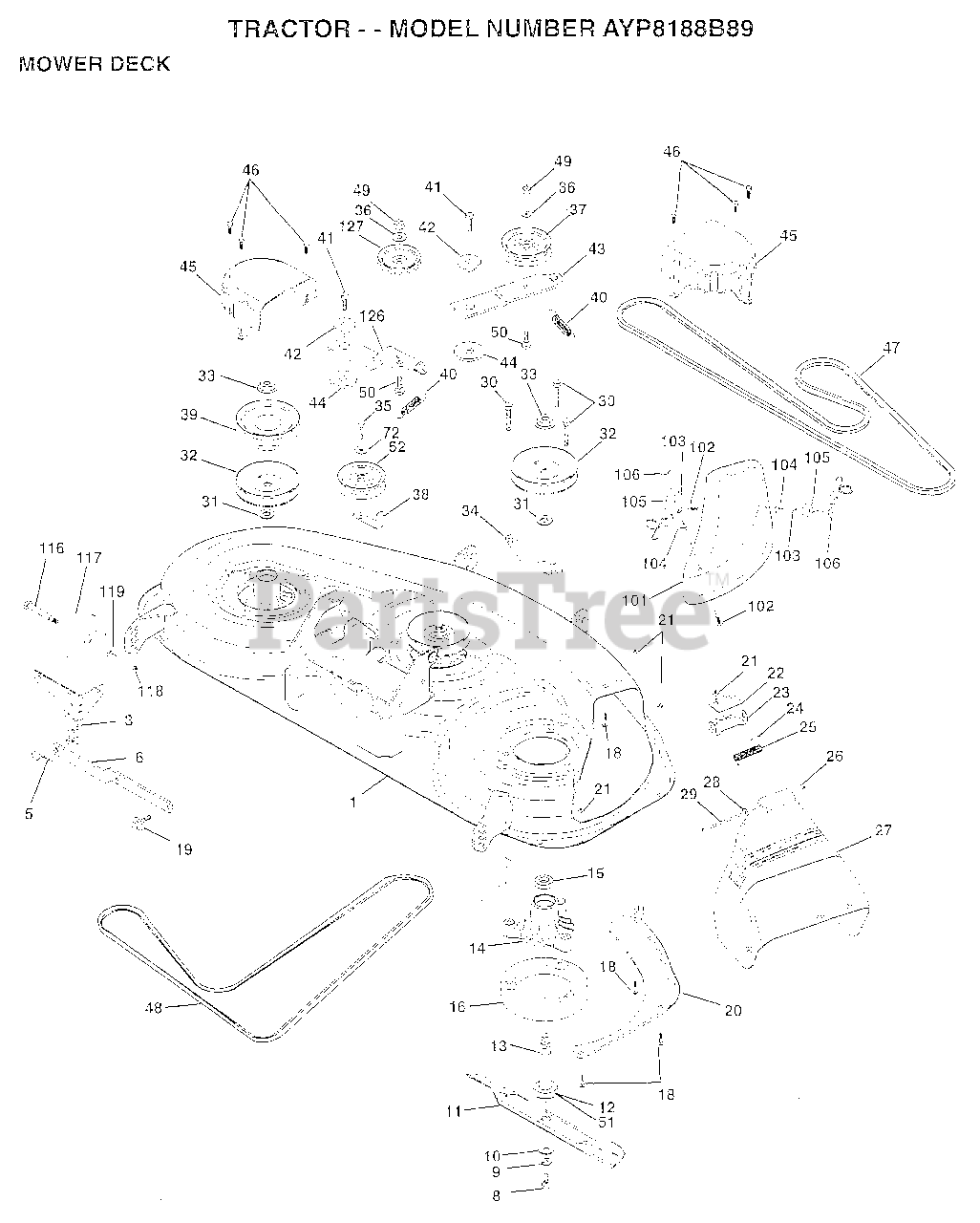

8188 B89 - Electrolux/AYP Lawn Tractor (1998) MOWER DECK Parts Diagram

Lawn Tractor

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 164210

"DECK.ASM.MOWER46"""
(Superseded to 532176026)

$

$

Not available

3

Electrolux/AYP 138457

BRKT.ASM.SW.44/50
(Superseded to 532138457)

$11.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 163819

"BLADE MULCH 46"""
(Superseded to 532152443)

$20.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137553

SHAFT.ASM.W/BRNG
(Superseded to 532137553)

$37.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 137152

HOUSING.MAND.44.V
(Superseded to 532137152)

$40.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 145055

BAFFFLE.VORTEX.46
(Superseded to 532145055)

$9.99

$

Usually ships in 3-10 days

0

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 149287

SUB= 123713X
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 157788

SHIELD DEFLECTOR
(Superseded to 532166883)

$

$

Not available

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 157722

"SCREW-THD ROLL,WA"
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 153531

PULLEY.MAND.36/46
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 144945

ANCHOR.SPRING.46
(Superseded to 532144945)

$

$

Not available

35

Electrolux/AYP 17490628

SCREW LT
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

38

Electrolux/AYP 156086

"KEEPER BELT,IDLER"
(Superseded to 532156086)

$8.99

$

In Stock, Qty 6

0

39

Electrolux/AYP 144917

PULLEY.DRV.DCK.46
(Superseded to 532144917)

$31.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 137273

"SPRING.SEC.44""VEN"
(Superseded to 532137273)

$7.99

$

In Stock, Qty 5

0

41

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

42

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 144949

ARM.IDLER.DECK.46
(Superseded to 532144949)

$

$

Not available

44

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 145059

COVER.MANDREL.46
(Superseded to 532145059)

$

$

Not available

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 144959

BELT-V.SEC.46.KEL
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 139573

BELT V PRIM 50
(Superseded to 532139573)

$51.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

52

Electrolux/AYP 156493

"PULLEY IDLER,FLAT"
(Superseded to 532173901)

$

$

Not available

72

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 145579

COVER.MULCHING.
(Superseded to 532145579)

$

$

Not available

102

Electrolux/AYP 71161010

SCREW
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 14

0

104

Electrolux/AYP 19061216

WASHER #10
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

105

Electrolux/AYP 160793

LATCH ASSY.BAGGER
(Superseded to 532160793)

$

$

Not available

106

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 137644

BOLT.SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 133957

WHEEL GAGE DONUT
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

126

Electrolux/AYP 144948

ARM.IDLER.PRIM.46
(Superseded to 532144948)

$

$

Not available

127

Electrolux/AYP 146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 143651

MANDREL SERV ASM
(Superseded to 532143651)

$102.99

$

In Stock, only 4 left!

0

Electrolux/AYP 164821

DECK.COMPLETE
(Superseded to 532166222)

$971.99

$

Usually ships in 3-10 days

0
