818001 - Gravely Non-Powered Bagger for Ikon / ZT X (SN: 000101 & Above) Bagger Mounts and Bags Parts Diagram

Non-Powered Bagger for Ikon / ZT X

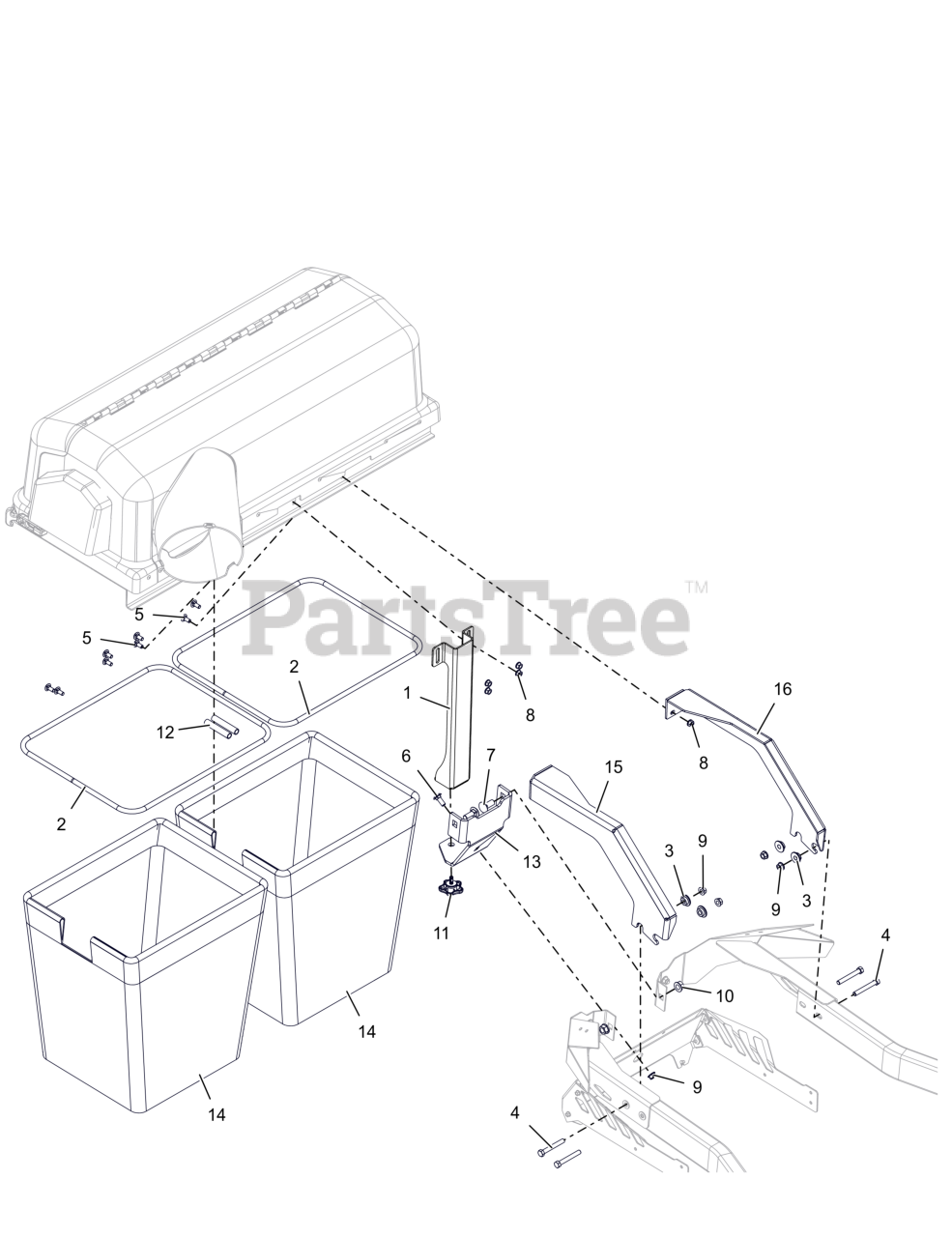

Bagger Mounts and Bags Parts Diagram

  • Title

1

Gravely 09684951

WLDMT, BAGGER HITCH MOUNT (BLACK)

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 05194800

FRAME, BAG

$45.99

$

In Stock, only 1 left!

0

3

Gravely 05501518

BUSHING, FLANGE .386X.75X1.13

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05901813

BLT, HEX .38-16X2.75 G8 ZCC

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

6

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 12

0

7

Gravely 06200325

BLT, RHSN .50-13X1.25 G5 ZCC

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 1 left!

0

12

Gravely 07500425

HOSE, VINYL

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 09689551

PLATE, HITCH (BLACK)

$34.99

$

Usually ships in 0 days

0

14

Gravely 30137900

BAG- MESH - 19 INCHES LONG

$

$

Not available

15

Gravely 30153951

BRKT- RH BAGGER FRAME MTG

$74.99

$

Usually ships in 4-12 days

0

16

Gravely 30154051

BRKT, LH BAGGER FRAME MNT (BLACK)

$83.99

$

Usually ships in 4-12 days

0
