818001 - Gravely Non-Powered Bagger for Ikon / ZT X (SN: 000101 & Above) Bagger Hood Assembly Parts Diagram

Non-Powered Bagger for Ikon / ZT X

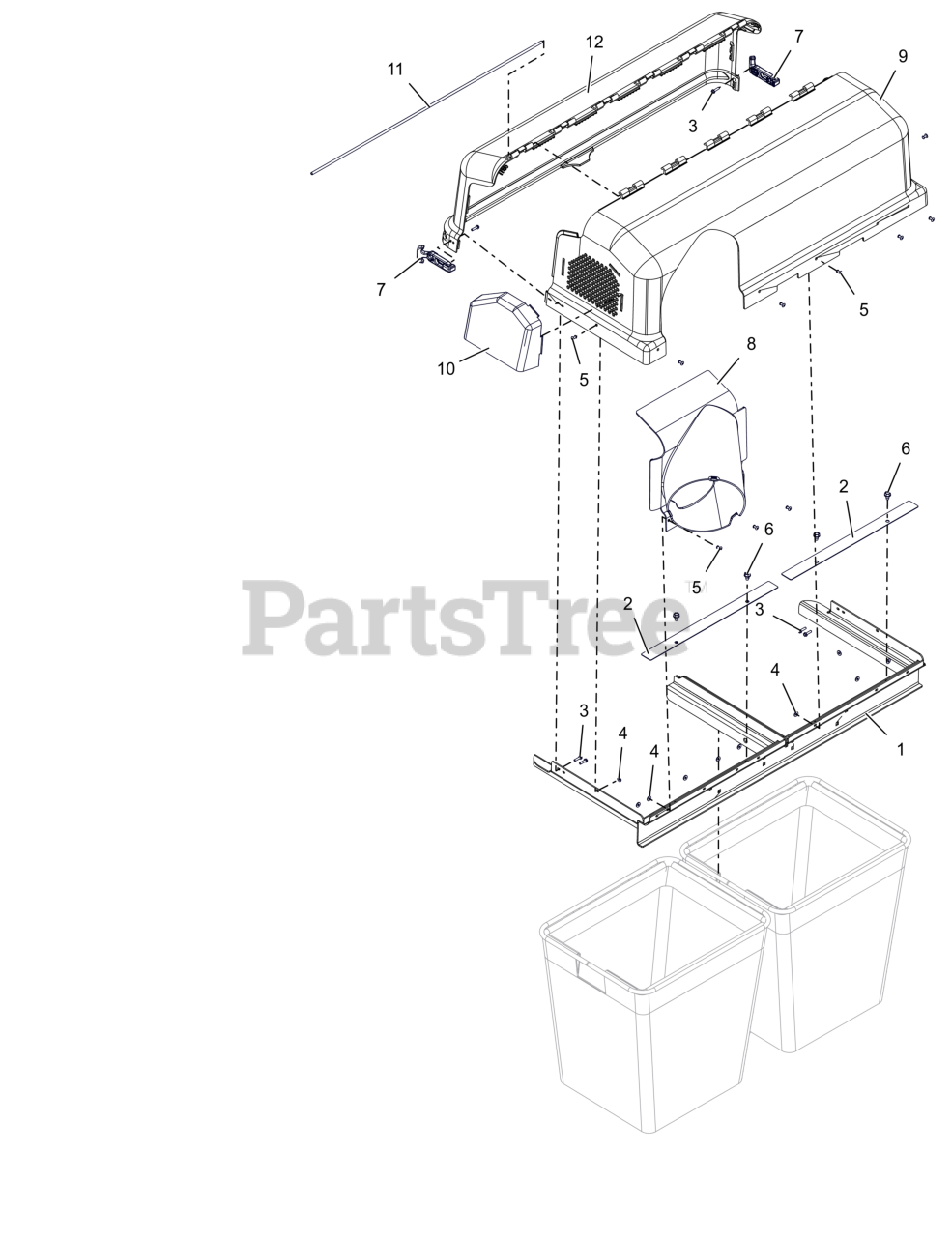

Bagger Hood Assembly Parts Diagram

  • Title

1

Gravely 09684851

WLDMT, BAGGER FRAME (BLACK)

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, only 2 left!

0

4

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$

$

Not available

5

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available

6

Gravely 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09079500

LATCH, RUBBER

$34.99

$

Usually ships in 4-12 days

0

8

Gravely 09678302

INTAKE REAR, BAGGER

$

$

Not available

9

Gravely 09684500

HOOD, REAR BAGGER

$

$

Not available

10

Gravely 09684600

HOOD, VENT BAGGER

$

$

Not available

11

Gravely 09684700

ROD, HINGE .25" X 32.5"

$

$

Not available

12

Gravely 51801900

KIT- BAGGER DOOR W/DECAL

$79.99

$

Usually ships in 4-12 days

0
