818 GT (1690622) - AGCO Garden Tractor, 18hp Transmission Group Parts Diagram

Garden Tractor, 18hp

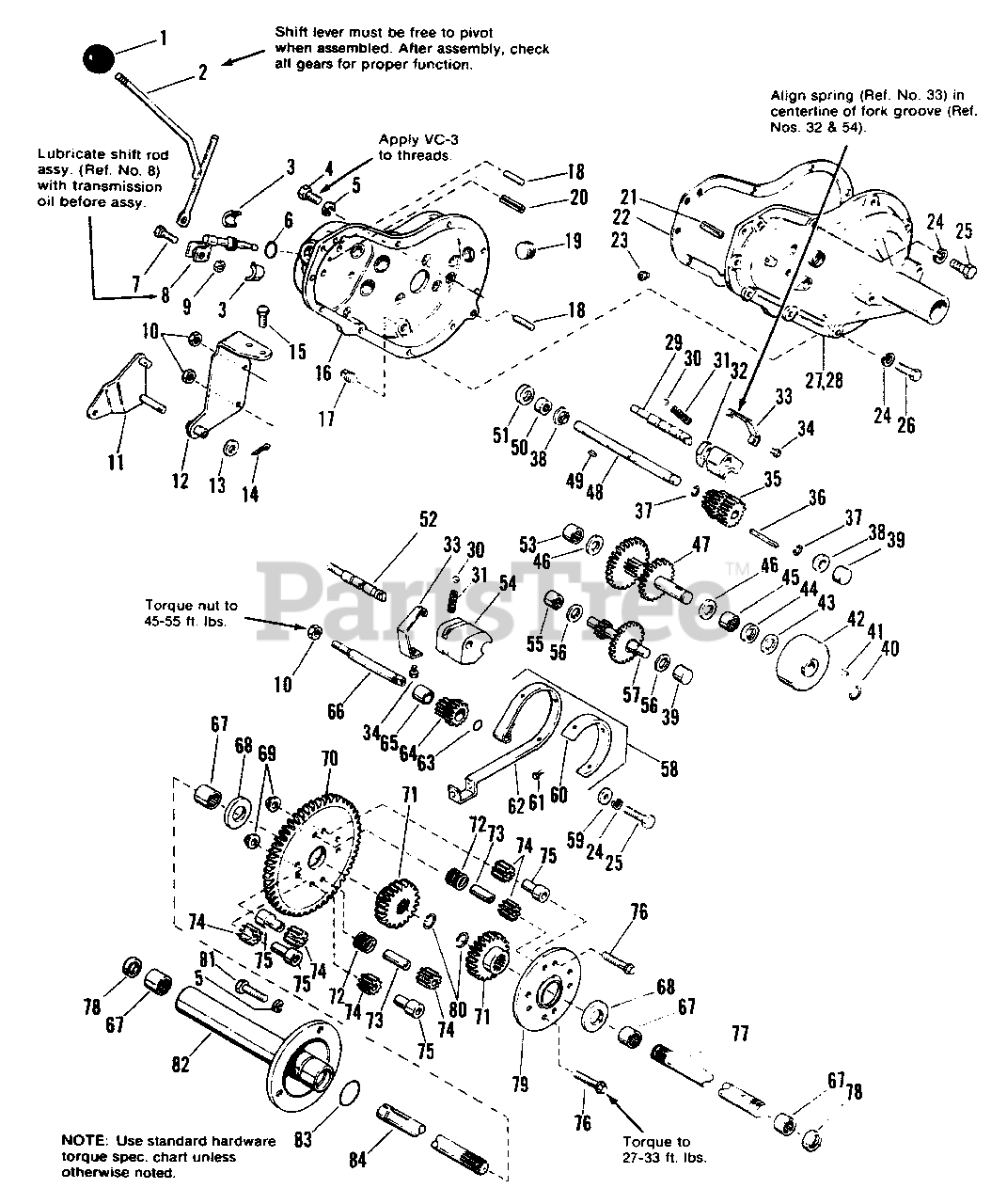

Transmission Group Parts Diagram

  • Title

1

Simplicity 1729255SM

KNOB

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 1668152SM

ROD ASSY., Shift

$

$

Not available

3

Simplicity 2101042SM

BUSHING

$

$

Not available

4

Simplicity 2822586SM

CAPSCREW, Hex, 3/8-16 x 5/8

$2.99

$

In Stock, Qty 5

0

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

6

Simplicity 1665276SM

O-RING

$

$

Not available

7

Simplicity 2821960

CAPSCREW, Hex, 1/4-20 x 1

$

$

Not available

8

Simplicity 1663233SM

ROD ASSY., Pivot

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

10

Simplicity 2835041

LOCKNUT, Hex, Flange, 7/16-14

$

$

Not available

11

Simplicity 1665014

BRACKET ASSY., Pulley

$

$

Not available

12

Simplicity 1666175

SUPPORT ASSY., Transmission

$

$

Not available

13

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

15

Simplicity 2825205

CAPSCREW, Hex, 5/16-18 x 5/8

$

$

Not available

16

Simplicity 1664833

CASE ASSY., Gear

Note: Reference No. 16 includes Ref. Nos. 3, 6, 8, 18, 20, 50, 53 & 55.

$

$

Not available

17

Simplicity 2801653

PLUG, Pipe, 3/8

$

$

Not available

18

Simplicity 2818113

PIN, Spring, 3/8 Dia. x 1

$

$

Not available

19

Simplicity 2830676SM

PLUG Pipe, 3/4

$

$

Not available

20

Simplicity 2156308SM

PIN ASSY., Roll

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 1664831

PIN ASSY., Roll

$

$

Not available

22

Simplicity 2156103SM

GASKET

$

$

Not available

23

Simplicity 2118462SM

PLUG, Vent

$

$

Not available

24

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

26

Simplicity 2821977

CAPSCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

27

Simplicity 1664832

COVER ASSY., Gear Case

Note: Reference No. 27 includes Ref. Nos. 21, 23, 28, 39, 45 & 67.

$

$

Not available

28

COVER, Gear Case

$

$

Not available

29

Simplicity 2171372SM

SHAFT, Shift, 2nd & 3rd

$96.99

$

Usually ships in 2-12 days

0

30

Simplicity 2805359

BALL, Shift Lock

$

$

Not available

31

Simplicity 2171456SM

SPRING

$8.99

$

Usually ships in 2-12 days

0

32

Simplicity 1664943

FORK, Shift, 2nd & 3rd

$

$

Not available

33

Simplicity 1657656SM

SPRING

$13.99

$

Usually ships in 2-12 days

0

34

Simplicity 1928729SM

CAPSCREW, Hex Washer Hd., 5/16-18 x 5/16

$4.99

$

In Stock, only 2 left!

0

35

Simplicity 1664882SM

PINION ASSY., Drive

$262.99

$

Usually ships in 2-12 days

0

36

Simplicity 2170453SM

KEY

$15.99

$

Usually ships in 2-12 days

0

37

Simplicity 1667621SM

RING, Retaining

$6.99

$

In Stock, only 2 left!

0

38

Simplicity 1666379SM

WASHER

$28.99

$

In Stock, only 4 left!

0

39

Simplicity 1664830SM

BEARING, Roller

$

$

Not available

40

Simplicity 2827732SM

RING, Snap
(Superseded to 703979)

$4.49

$

In Stock, Qty 10

0

41

Simplicity 2818312SM

KEY, Woodruff, 3/16 x 5/8
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

42

Simplicity 1665010SM

DRUM ASSY., Brake

$195.99

$

Usually ships in 2-12 days

0

43

Simplicity 2820120

WASHER, Plain, 25/32

$

$

Not available

44

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

45

Simplicity 2171597SM

BEARING

$28.99

$

In Stock, only 1 left!

0

46

Simplicity 1960010SM

WASHER

$15.99

$

Usually ships in 2-12 days

0

47

Simplicity 1664870SM

PINION SHAFT & GEAR CLUSTER ASSY.

$524.99

$

Usually ships in 2-12 days

0

48

Simplicity 1685175SM

SHAFT, Input

$204.99

$

Usually ships in 2-12 days

0

49

Simplicity 2830670SM

KEY, 3/16 x 3/4

$2.49

$

Usually ships in 2-12 days

0

50

Simplicity 2156072SM

BEARING

$24.99

$

In Stock, only 1 left!

0

51

Simplicity 2156084SM

SEAL, Oil

$16.99

$

Usually ships in 2-12 days

0

52

Simplicity 1713-65

SHAFT, Shift, 1st & Rev.

$

$

Not available

53

Simplicity 2171185SM

BEARING

$12.99

$

Usually ships in 2-12 days

0

54

Simplicity 1685262

FORK, Shift, 1st & Rev.

$

$

Not available

55

Simplicity 2156073SM

BEARING

$11.99

$

Usually ships in 2-12 days

0

56

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0

57

Simplicity 1664874SM

PINION SHAFT & GEAR ASSY., 1st

$179.99

$

Usually ships in 2-12 days

0

58

Simplicity 1679355SM

BAND ASSY., Brake

Note: Reference No. 58 includes Ref. Nos. 60, 61 & 62.

$90.99

$

Usually ships in 2-12 days

0

59

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

60

Simplicity 1679355SM

LINING, Brake

$90.99

$

Usually ships in 2-12 days

0

61

Simplicity 928308

RIVET

$

$

Not available

62

BAND, Brake (See Ref. No. 58)

$

$

Not available

63

Simplicity 2165006SM

O-RING

$10.99

$

Usually ships in 2-12 days

0

64

Simplicity 1658544SM

PINION ASSY., 1st & Rev.

$161.99

$

Usually ships in 2-12 days

0

65

Simplicity 1664881SM

BUSHING

$15.99

$

Usually ships in 2-12 days

0

66

Simplicity 1664865

SHAFT, 1st & Rev. Pinion

$

$

Not available

67

Simplicity 2105195SM

BEARING, Roller

$34.99

$

Usually ships in 2-12 days

0

68

Simplicity 2860200SM

WASHER

$5.49

$

In Stock, Qty 5

0

69

Simplicity 2830645

LOCKNUT, Flange, 3/8-16

$

$

Not available

70

Simplicity 1664734SM

GEAR, Drive

$359.99

$

Usually ships in 2-12 days

0

71

Simplicity 1664695

GEAR, Differential

$

$

Not available

72

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 7

0

73

Simplicity 2121083SM

SPACER, Pinion Diff

$13.99

$

In Stock, only 1 left!

0

74

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

75

Simplicity 1664740

STUD, Diff.

$

$

Not available

76

Simplicity 1664742

SCREW, Hex, Flange, 3/8-16 x 2-1/2

$

$

Not available

77

Simplicity 1665264

SHAFT, Axle, R.H.

$

$

Not available

78

Simplicity 2118118SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

79

Simplicity 1664743

PLATE, Diff.

$

$

Not available

80

Simplicity 2827320SM

RING, Snap

$8.49

$

Usually ships in 2-12 days

0

81

Simplicity 2821966

CAPSCREW, 3/8-16 x 7/8

$

$

Not available

82

Simplicity 1665269

HOUSING & BEARING ASSY, Axle (Includes Ref. No. 67)

$

$

Not available

83

Simplicity 2156099SM

O-RING

$3.49

$

In Stock, only 1 left!

0

84

Simplicity 1665263

SHAFT, Axle, L.H.

$

$

Not available
