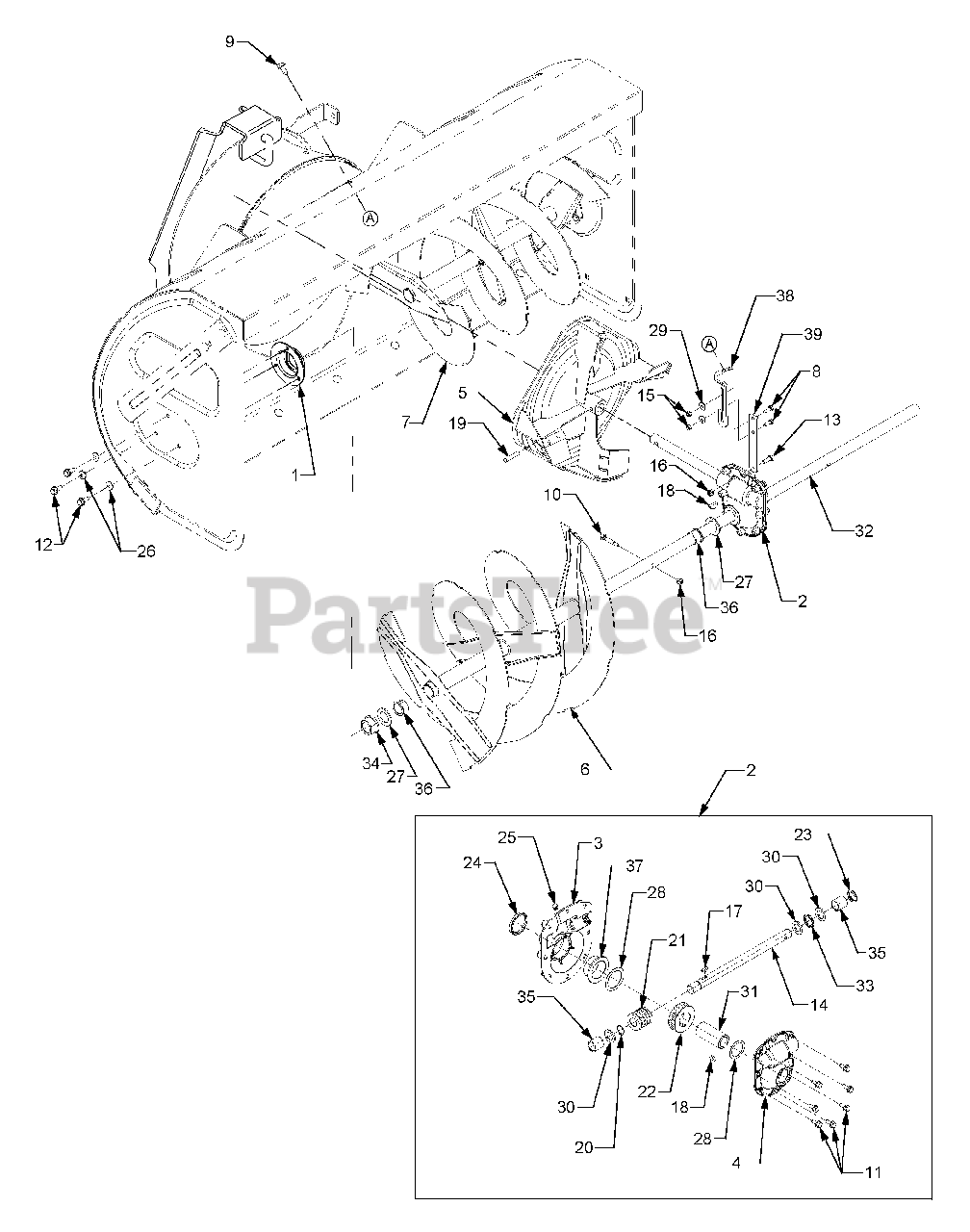

818 (590-818-100) - Cub Cadet 48" Snow Thrower Attachment Gear Box And Spiral Assembly Parts Diagram

48" Snow Thrower Attachment

Gear Box And Spiral Assembly Parts Diagram

  • Title

1

Cub Cadet 05845B-0637

Housing, Bearing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0244

Auger Gear Box Assembly
(Superseded to 918-0244)

$

$

Not available

3

Cub Cadet 618-0246

Housing, Gear - RH
(Superseded to 918-0246)

Note: (Includes Ref. Nos. 24 and 37)

$

$

Not available

4

Cub Cadet 618-0247

Housing, Gear - LH
(Superseded to 918-0247)

Note: (Includes Ref. Nos. 24 and 37)

$103.99

$

In Stock, only 1 left!

0

5

Cub Cadet 684-0069-0716

Impellar Assembly
(Superseded to 684-0069-0637)

$281.99

$

In Stock, only 1 left!

0

6

Cub Cadet 684-0072-0716

Spiral Assembly - RH
(Superseded to 684-04196-0716)

$291.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 684-0073-0716

Spiral Assembly - LH
(Superseded to 684-04197-0716)

$284.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 x .75 GR5

$5.99

$

In Stock, Qty 8

0

9

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0891

Bolt, Shear, 5/16-18 x 1.75

$7.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0604A

Screw, Hex Tap, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 711-1097A

Shaft, Input

$

$

Not available

15

Cub Cadet 712-0138

Nut, Hex, 1/4-28 GR5

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0126

Key, Hi Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 714-0135

Key, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

20

Cub Cadet 716-0111

Ring, Snap, .875 Shaft

$6.99

$

In Stock, Qty 8

0

21

Cub Cadet 717-0299

Gear, Worm
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

22

Cub Cadet 717-1425

Gear, Worm
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

23

Cub Cadet 721-0145

Seal, Oil
(Superseded to 921-0145)

$9.99

$

In Stock, only 1 left!

0

24

Cub Cadet 721-0146

Seal, Oil
(Superseded to 921-0146)

$12.99

$

In Stock, only 3 left!

0

25

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .1

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0266

Washer, Flat, 1.5 x 2.0 x .3
(Superseded to 936-0266)

$

$

Not available

29

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0291

Washer, Flat, .88 x 1.4 x .125

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-0275

Shaft, Worm Gear

$112.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-0492

Shaft, Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 741-0184

Bearing, Thrust

$16.99

$

In Stock, only 3 left!

0

34

Cub Cadet 741-0192

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

35

Cub Cadet 741-0217

Bearing, Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 10

0

36

Cub Cadet 741-0494

Bushing, Flange

$3.99

$

In Stock, only 2 left!

0

37

Cub Cadet 741-0670

Bearing, Flange

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 784-5076-0637

Bracket, Gear Housing Support

$46.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 784-5710-0637

Plate, Gear Housing Support

$8.49

$

Usually ships in 3-6 days

0

Cub Cadet 737-0168A

Grease, Alvania EP

$30.99

$

In Stock, only 1 left!

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0
