818 (590-818-100) - Cub Cadet 48" Snow Thrower Attachment att Drive Gearbox Parts Diagram

48" Snow Thrower Attachment

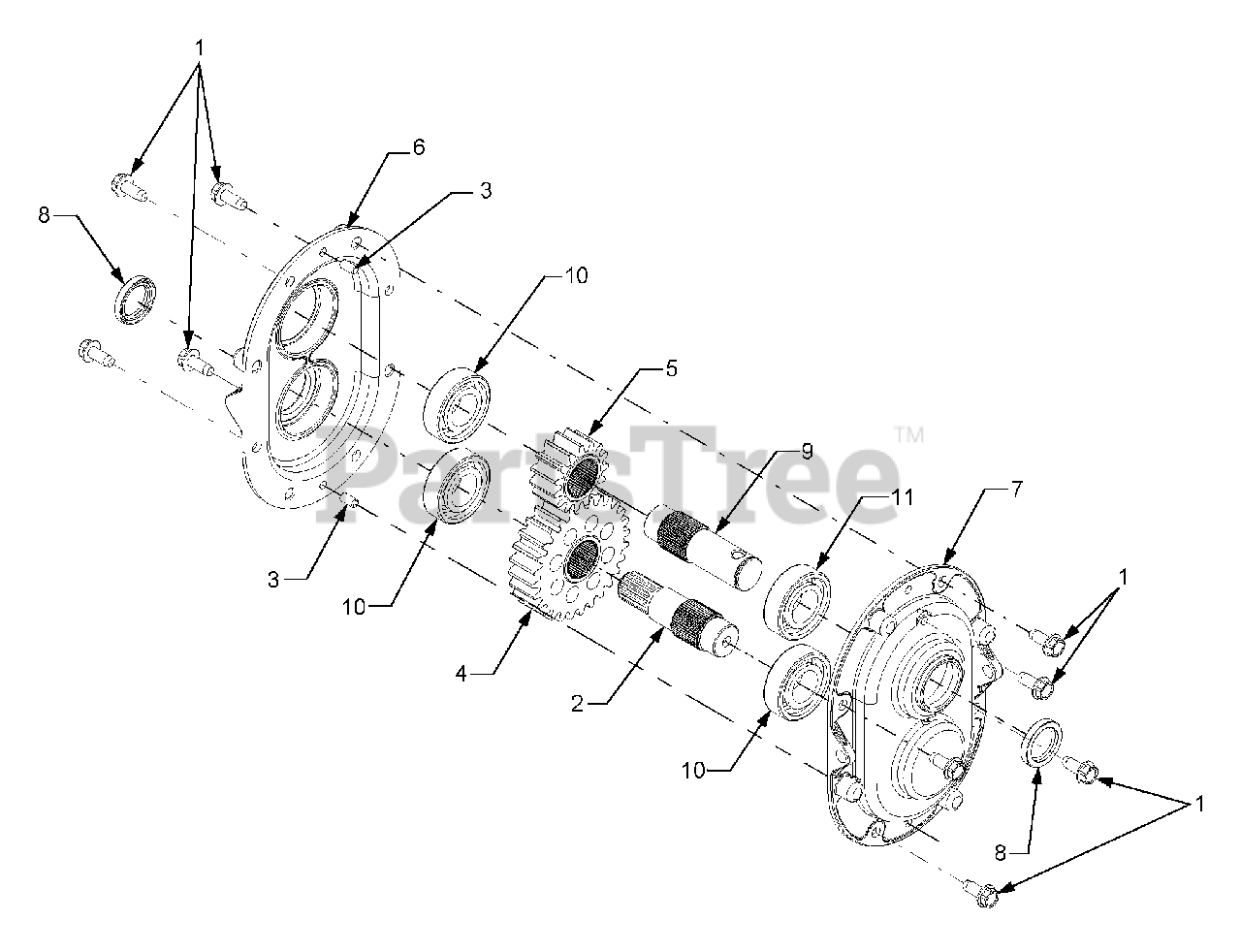

Drive Gearbox Parts Diagram

  • Title

1

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1078

Shaft, Output

$154.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 715-0154

Pin, Dowel, .25 x .5

$5.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 717-1452

Gear, Spur, 28T

$63.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 717-1453

Gear, Spur, 15T

$

$

Not available

6

Cub Cadet 719-0346

Housing, Gear

$

$

Not available

7

Cub Cadet 719-04099

Housing, Gear
(Superseded to 919-04099)

$

$

Not available

8

Cub Cadet 721-0391

Seal, Oil
(Superseded to 921-0391)

$10.99

$

In Stock, Qty 11

0

9

Cub Cadet 738-04023

Shaft, Input
(Superseded to 938-04023)

$

$

Not available

10

Cub Cadet 741-0301

Bearing, Ball
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

11

Cub Cadet 741-0681

Bearing, Ball

$

$

Not available

Cub Cadet 737-0300

Grease, Benalene 5 oz.
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0
