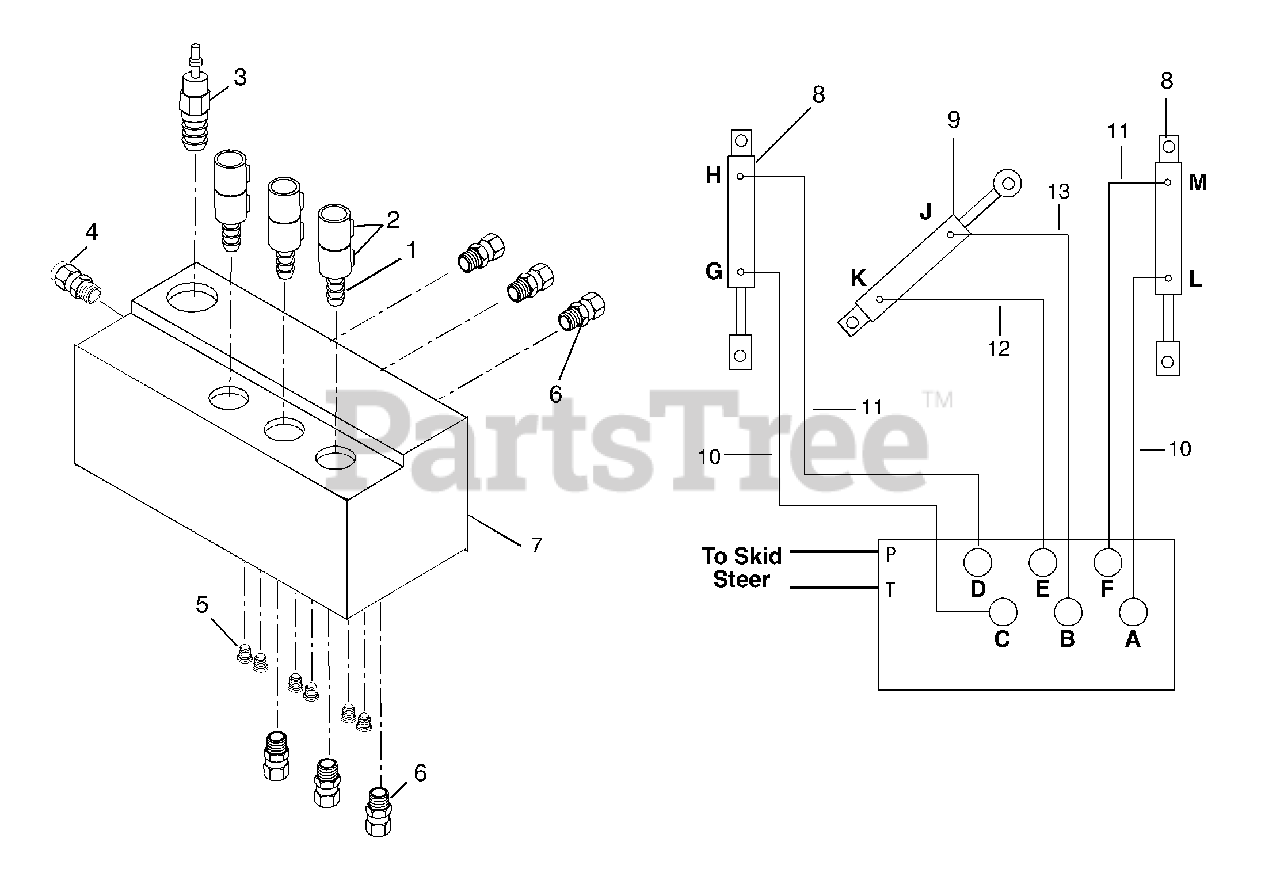

817006 - Gravely Grader Brush (SN: 000101 & Above) Hydraulic Valve/Hydraulic Schematic Parts Diagram

Grader Brush

Hydraulic Valve/Hydraulic Schematic Parts Diagram

  • Title
1

Gravely 01705400

4-Way Cartridge - 10 size

$

$

Not available

2

Gravely 01705500

Leadwire Coil w/ Connector

$

$

Not available

3

Gravely 01705800

Compensator Cartridge

$

$

Not available

4

Gravely 01705700

Flow Control Cartridge

$

$

Not available

5

Gravely 01705900

Sense Check

$

$

Not available

6

Gravely 01705600

P.O. Check Cartridge

$

$

Not available

7

Gravely 01700700

Hydraulic Valve

Note: (Includes items 1 - 6)

$

$

Not available

8

Gravely 01701000

Cylinder 16"

$

$

Not available

9

Gravely 01701100

Cylinder 8" Blade Pitch

$

$

Not available

10

Gravely 01702400

Hydraulic Hose Leveling .250 X 24.5"

$

$

Not available

11

Gravely 01702000

Hydraulic Hose Leveling .250 X 15.5"

$

$

Not available

12

Gravely 01702200

Hydraulic Hose Blade Pivot .250 X 44.5"

$

$

Not available

13

Gravely 01702100

Hydraulic Hose Pivot .250 X 49.5"

$

$

Not available
