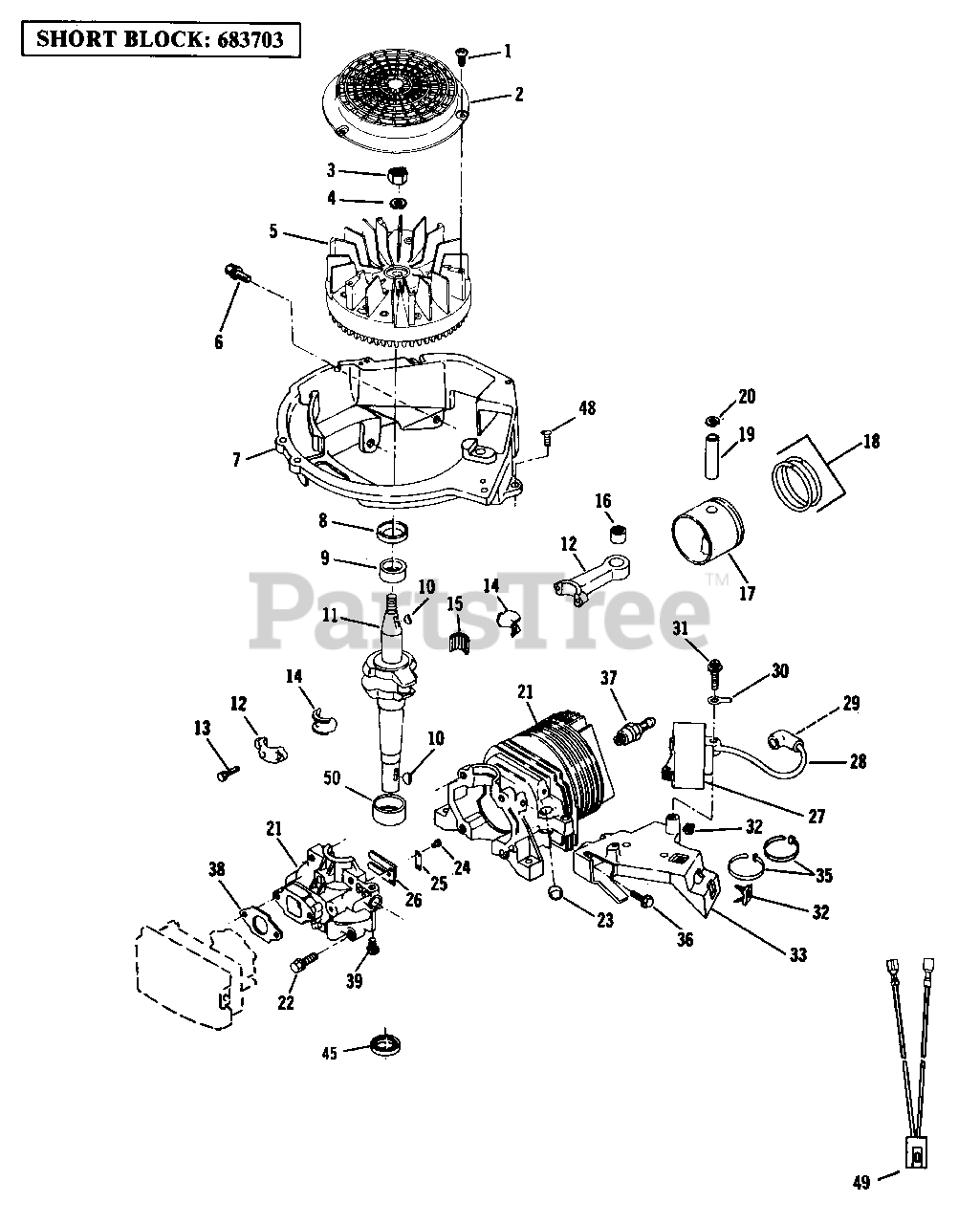

8157 - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) ENGINE GROUP MODELS: 8157 Parts Diagram

Walk-Behind Mower

ENGINE GROUP MODELS: 8157 Parts Diagram

  • Title

1

Lawn-Boy 606537

Screw-Flywheel Screen

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

2

Lawn-Boy 611375

Screen-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 303807

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 316959

Lockwasher
(Superseded to 325-36)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4656 and 8157.

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 682766

Flywheel Assembly
(Superseded to 683855)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683855

Flywheel Assembly

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4656 and 8157.

$

$

Not available

6

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 683043

Base-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$173.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 611190

Base-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4656 and 8157.

$

$

Not available

8

Lawn-Boy 605020

Oil Seal-Upper
(Superseded to 611396)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 5

0

9

Lawn-Boy 681830

Bearing-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$41.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 607199

Key-Flywheel and Clutch

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 9

0

11

Lawn-Boy 612159

Crankshaft
(Superseded to 94-5723)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 682677

Piston and Connecting Rod Ass'y.
(Superseded to 92-4925)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 682970

Connecting Rod Assembly
(Superseded to 92-4921)

Note: Important Note: Replacement parts may not always be available in matching colors.

$241.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 611393

Screw Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 677982

Liner-Split

Note: Important Note: Replacement parts may not always be available in matching colors.

$46.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 677963

Needle Bearing Set
(Superseded to 683911)

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, Qty 5

0

16

Lawn-Boy 679144

Bearing Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 682986

Piston and Ring Set
(Superseded to 92-4923)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 681737

Ring Set

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 606608

Wrist Pin
(Superseded to 94-5774)

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 303712

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 11

0

21

Lawn-Boy 683702

Cylinder and Crankcase Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 610372

Sealant

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 609918

Screw-Cover to Crankcase

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 609123

Plug

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 303761

Screw-Reed to C'case Cover
(Superseded to 612872)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 5

0

25

Lawn-Boy 602587

Plate-Reed Hold Down

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 602588

Reed

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 683215

C.D. Ignition Module and Lead Assembly
(Superseded to 100-2948)

Note: Important Note: Replacement parts may not always be available in matching colors.

$125.99

$

In Stock, only 1 left!

0

Lawn-Boy 318535

Adhesive

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

28

Lawn-Boy 681678

High Tension Lead and Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$24.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 510231

Spring Terminal
(Superseded to 684698)

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 609651

Terminal-Ground Lead

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607526

Screw-C.D. Mounting
(Superseded to 32105-12)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 605120

Grommet-C.D. Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 9

0

33

Lawn-Boy 609609

Bracket-Ignition Mtg.

Note: Important Note: Replacement parts may not always be available in matching colors.

$96.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

36

Lawn-Boy 307028

Screw
(Superseded to 614343)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 4 left!

0

37

Lawn-Boy 605885

Spark Plug
(Superseded to 614009)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

38

Lawn-Boy 612574

Gasket-Carb. to Crankcase Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 13

0

39

Lawn-Boy 611073

Set Screw-Starter Assembly
(Superseded to 3274-10)

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

In Stock, Qty 13

0

45

Lawn-Boy 611396

Oil Seal-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 5

0

48

Lawn-Boy 609808

Screw-Shd. Base to C.D. Brk't.

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 683105

Wire Harness-Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 681831

Bearing-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$24.99

$

In Stock, only 1 left!

0
