8157 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) HOUSING AND SHROUD GROUP MODEL: 8157 Parts Diagram

Walk-Behind Mower

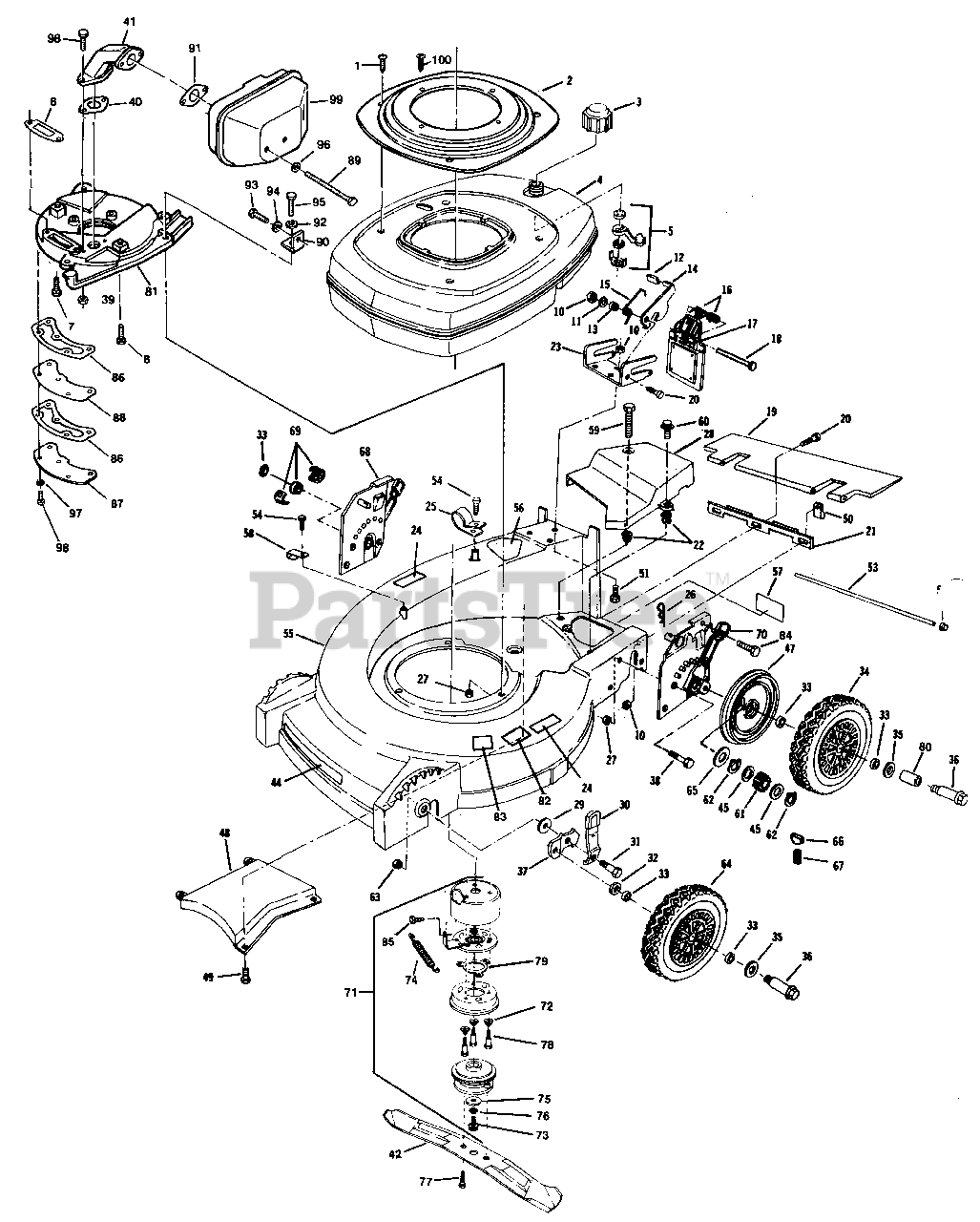

HOUSING AND SHROUD GROUP MODEL: 8157 Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

1

Lawn-Boy 612526

Screw
(Superseded to 611381)

Note: Important Note: Replacement parts may not always be available in matching colors. 8157 Only.

$1.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 611463

Cover-Shroud

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 683639

Starter Base & Nut Assy.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 683550

Shroud-Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$643.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 683851

Shroud Tank & Valve Assy.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683077

Fuel Shut-Off Assemby

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 609994

Screw-MuMer to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607601

Screw-Muffler Plate to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 602315

Nut-Latch Brk't. and Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 611485

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 612658

Knob-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611484

Stepped Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611486

Catch-Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611491

Spring-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611480

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 683039

Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611493

Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611495

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$49.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 609892

Screw-Latch Bracket and Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 612363

Bracket-Bag Hanger

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 611496

Hinge Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 612071

Decal-Ht. Adj.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 612233

Clamp-Cable and Primer Hose to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 605803

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

Nut-Ht. Adj. to Hous. and Muff. Plate to Hous.

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 611848

Cover Belt
(Superseded to 684055)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 608834

Washer-Wheel Ht. Adj.

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 681229

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 603620

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605255

Washer-Felt

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 683626

Wheel and Tire Assembly 8" S.P.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 605256

Washer-Wheel Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 603441

Bolt-Shoulder Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 608833

Bracket-Wheel Ht. Adj.
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 610404

Bolt-Height Adjuster Assembly
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612602

Gasket-Exhaust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683679

Pipe-Exhaust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 683587

Blade-20"
(Superseded to 612541-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611581

Decal-Clutch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 612068

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 611805

Cover-Wheel
(Superseded to 613512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611497

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 611602

Clamp-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 611499

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 609975

Nut-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611503

Screw-Clamp to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 683797

Housing-20" Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

57

Lawn-Boy 611533

Decal-Caution

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 611504

Clamp-Cable to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611849

Screw-Hex Hd.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 612055

Screw-Shoulder Idler

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 612064

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

63

Lawn-Boy 603773

Nut-Wheel Ht. Adj.

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 683179

Wheel and Tire Assembly 8"

Note: Important Note: Replacement parts may not always be available in matching colors.

$104.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 612066

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

67

Lawn-Boy 612067

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

68

Lawn-Boy 683538

Height Adjuster Assem.-R.H
(Superseded to 683686)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 683195

Bearing and Retainer Ass'y.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 683541

Height Adjuster Assem.-L.H.
(Superseded to 683688)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 683489

Clutch Assembly
(Superseded to 684092)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 611416

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

73

Lawn-Boy 611417

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 611415

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$67.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 611412

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

76

Lawn-Boy 611413

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

77

Lawn-Boy 611398

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

78

Lawn-Boy 611399

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

79

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

80

Lawn-Boy 145439

Bushing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

81

Lawn-Boy 612601

Mounting Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

82

Lawn-Boy 609961

Starting Pad

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

83

Lawn-Boy 145252

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

84

Lawn-Boy 611205

Bolt
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

85

Lawn-Boy 611318

Bolt-Cable to Arm

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

86

Lawn-Boy 612271

Gasket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

87

Lawn-Boy 612272

Cover Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

88

Lawn-Boy 612273

BaMe

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

89

Lawn-Boy 612275

Screw
(Superseded to 321-34)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

90

Lawn-Boy 612282

Bracket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

91

Lawn-Boy 612290

Gasket-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

92

Lawn-Boy 612291

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

93

Lawn-Boy 609947

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0

94

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

95

Lawn-Boy 612640

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

96

Lawn-Boy 607693

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

97

Lawn-Boy 302376

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

98

Lawn-Boy 612603

Screw-Locking

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

99

Lawn-Boy 683491

Muffler
(Superseded to 683861)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

100

Lawn-Boy 612428

Screw-Starter Mounting

Note: Important Note: Replacement parts may not always be available in matching colors. 8157 Only.

$2.49

$

In Stock, only 4 left!

0
