8157 A - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) Carburetor Group Models: 4275, 5070, 6222, 8440, 8440ae And 8157a Parts Diagram

Walk-Behind Mower

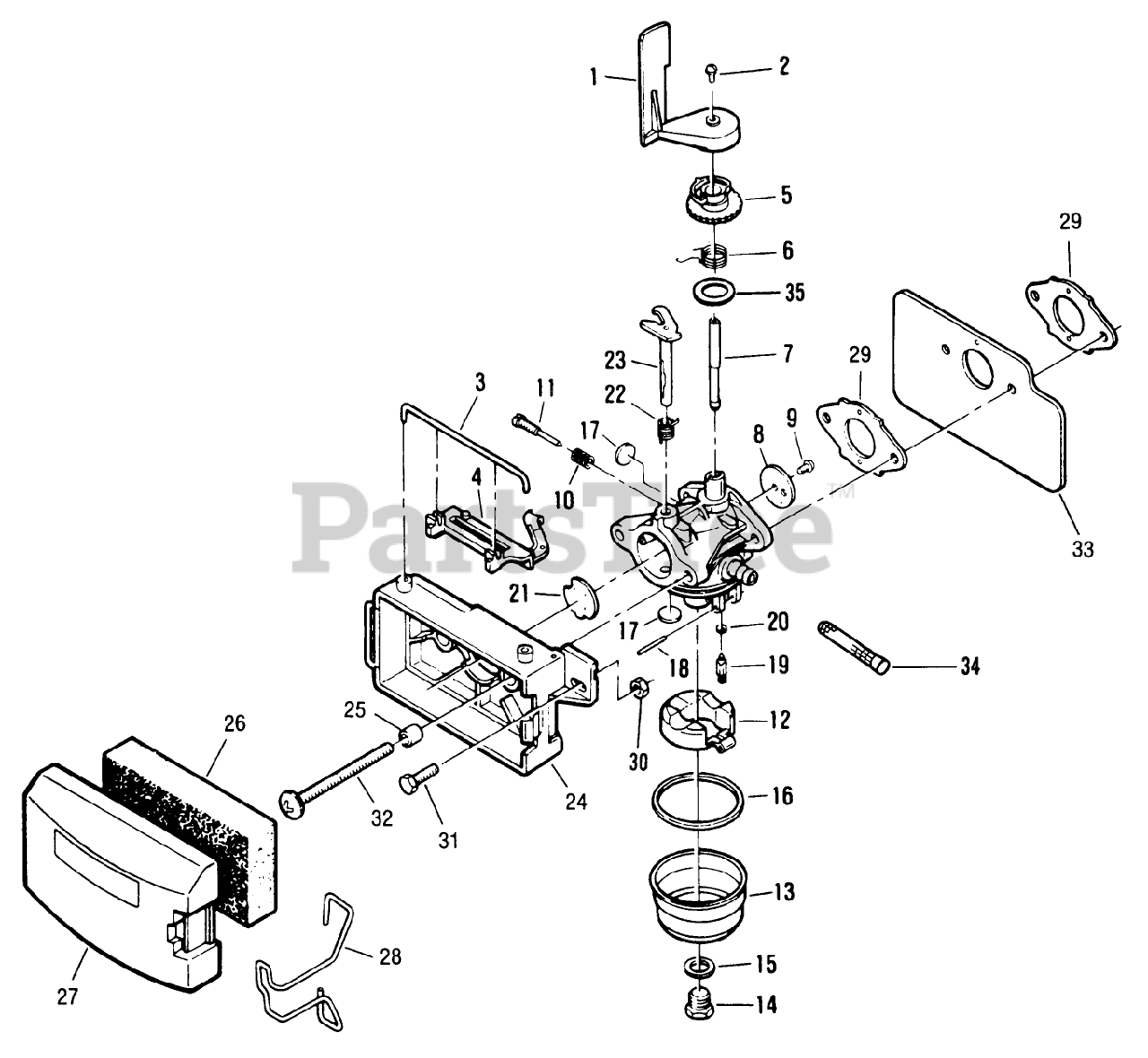

Carburetor Group Models: 4275, 5070, 6222, 8440, 8440ae And 8157a Parts Diagram

  • Title

Lawn-Boy 683632

Carburetor and Air Vane Asy.
(Superseded to 684352)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$360.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 612505

AIR VANE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605522

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

RETAINER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 15

0

4

Lawn-Boy 612502

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 612757

COLLAR A/VAVE F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 613142

THROTTLE SPR E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, only 1 left!

0

Lawn-Boy 683780

THROTTLE KIT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Shaft-Throttle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Valve-Throttle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Screw-Throttle Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683779

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Spring-Idle Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Needle-Idle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 683783

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683782

BOWL KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$62.99

$

Usually ships in 3-6 days

0

13

Bowl-Fuel

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Screw-Bowl Retainer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683778

GASKET KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

Usually ships in 3-6 days

0

15

Gasket-Bowl Retainer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Gasket-Fuel Bowl

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683777

REPAIR KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Plug-Welch

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Shaft-Float

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Valve-Inlet Needle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Seat-Valve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Kit-Gasket

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683781

CHOKE KIT S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

21

Valve-Choke

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Spring-Choke Return

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Shaft-Choke

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 612504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 612503

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

26

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 610742

See Supercession: 93-1231
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 610742

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on MODELS 4275, 5070 and 8440AE.

$

$

Not available

27

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

Note: Used on MODELS 6222 and 8440.

$

$

Not available

27

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 612799

Cover-Air Filter

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

28

Lawn-Boy 610383

RETAINER-COVER, FILTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$9.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 612574

GASKET CARB S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 13

0

30

Lawn-Boy 328712

See Supercession: 3217-26
(Superseded to 3217-26)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 314576

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

32

Lawn-Boy 612507

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 4 left!

0

33

Lawn-Boy 612790

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 612974

SCREEN FUEL PITTS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 10

0

35

Lawn-Boy 308052

WASHER VF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 3 left!

0

Lawn-Boy 612780

GAS LINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, Qty 5

0

Lawn-Boy 612780

GAS LINE

Note: Used on MODELS 4275, 5070 and 8440AE.

$10.99

$

In Stock, Qty 5

0

Lawn-Boy 612784

GAS LINE

Note: Used on MODELS 6222 and 8440.

$10.99

$

Usually ships in 3-6 days

0

Lawn-Boy 612784

GAS LINE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

Usually ships in 3-6 days

0
