8157 A - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) STARTER GROUP MODEL: 8157A Parts Diagram

Walk-Behind Mower

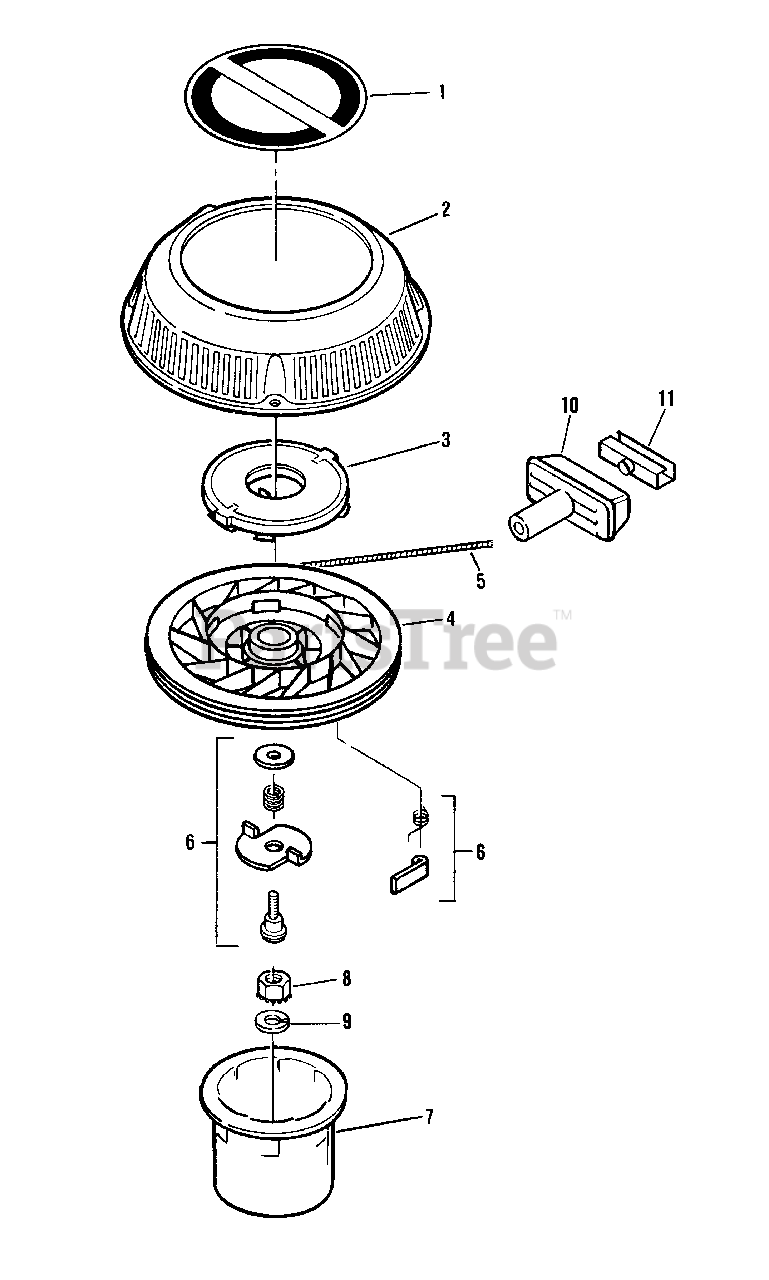

STARTER GROUP MODEL: 8157A Parts Diagram

  • Title

Lawn-Boy 683895

Starter Assembly
(Superseded to 684622)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

1

Lawn-Boy 612914

Decal
(Superseded to 614172)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 683898

Starter Housing and Shaft
(Superseded to 684567)

Note: Important Note: Replacement parts may not always be available in matching colors.

$140.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 683897

Recoil Spring and Keeper
(Superseded to 684622)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 612950

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$28.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 612887

Rope
(Superseded to 613773)

Note: Important Note: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 683899

Dog Kit Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$91.99

$

In Stock, Qty 7

0

7

Lawn-Boy 612949

Starter Hub

Note: Important Note: Replacement parts may not always be available in matching colors.

$49.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 130743

Nut-Flywheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 6

0

9

Lawn-Boy 316959

Lockwasher-Flywheel
(Superseded to 325-36)

Note: Important Note: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612824

Clip-Rope Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 10

0
