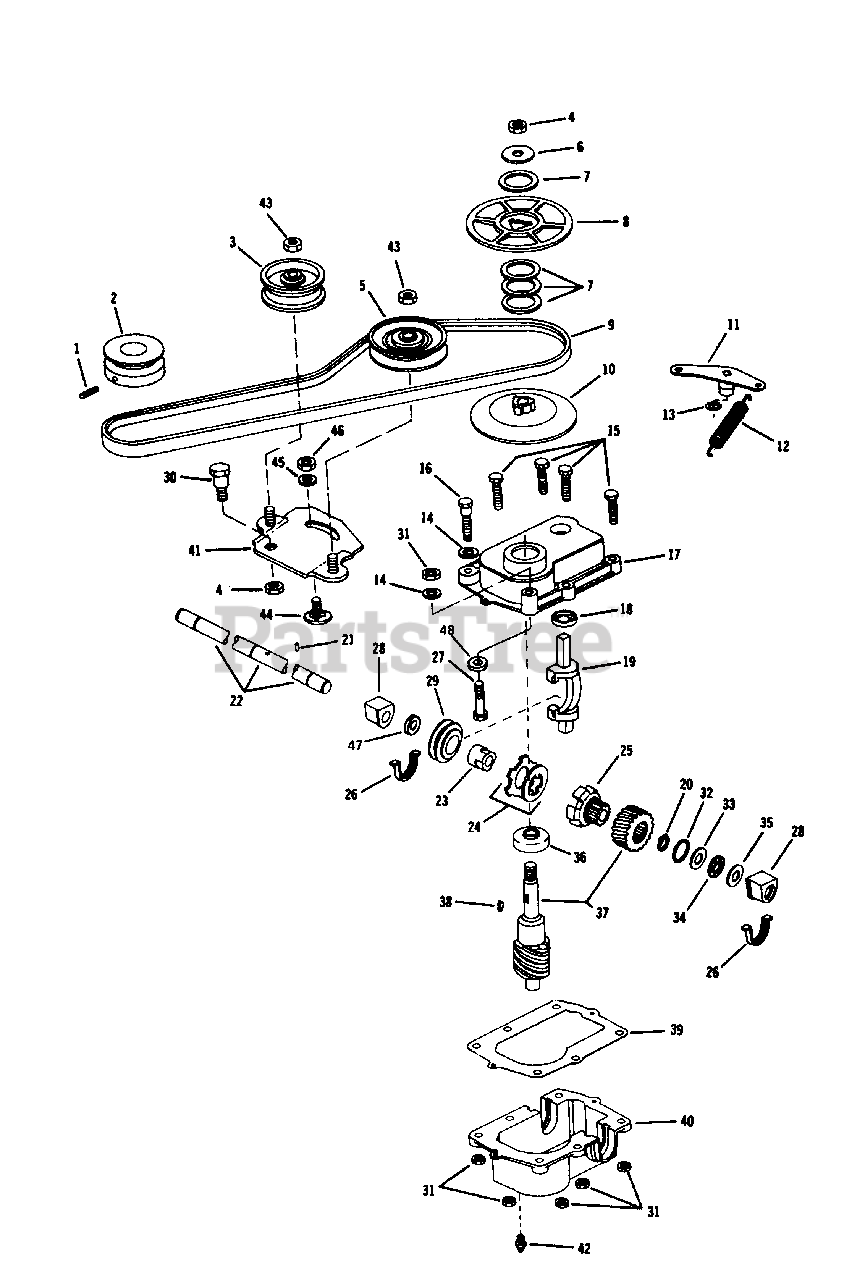

8157 A - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) DRIVE GROUP MODEL: 8157A Parts Diagram

Walk-Behind Mower

DRIVE GROUP MODEL: 8157A Parts Diagram

  • Title

1

Lawn-Boy 610345

Set Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.49

$

In Stock, Qty 5

0

2

Lawn-Boy 609976

Pulley-Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$109.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 611845

Pulley-Idler Variable Speed

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 603773

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 8

0

5

Lawn-Boy 611846

Idler-V-Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611839

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611838

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611836

Pulley Half-Upper

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 612652

V-Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611837

Pulley Half-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611841

Shift Arm

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 145935

Spring-Extension

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611835

O-Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, only 1 left!

0

14

Lawn-Boy 316676

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 609892

Screw-Hex Head Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611833

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 611828

Gear Case-Upper
(Superseded to 683624)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611834

Seal Guide

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611825

Fork-Shift

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 683344

Shaft and Plate Kit Assembly
(Superseded to 684490)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1118.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 607676

Ring-Retaining

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

21

Lawn-Boy 611814

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 612063

Drive Shaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611815

Driven Sleeve

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683183

Disc Clutch Kit
(Superseded to 684684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611821

Driver

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611830

Packing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 612065

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 683186

Bearing and Seal Asy.-Gearcase

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611819

Collar
(Superseded to 684684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 611847

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 602315

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 611822

Washer-Thrust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611878

Washer-Thrust

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 381791

Bearing-Thrust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 608030

Washer-Thrust

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 683187

Bearing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 683343

Worm Wheel and Shaft Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 611840

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 611827

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612406

Gear Case-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 683189

Idler Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 611831

Lubrication Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

43

Lawn-Boy 610358

Nut-Thin

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

44

Lawn-Boy 800358

Bolt-Square Neck
(Superseded to 3230-22)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

45

Lawn-Boy 306359

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

47

Lawn-Boy 612534

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 306488

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
