8155 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) HANDLE AND REAR CATCHER GROUP MODEL: 8155 Parts Diagram

Walk-Behind Mower

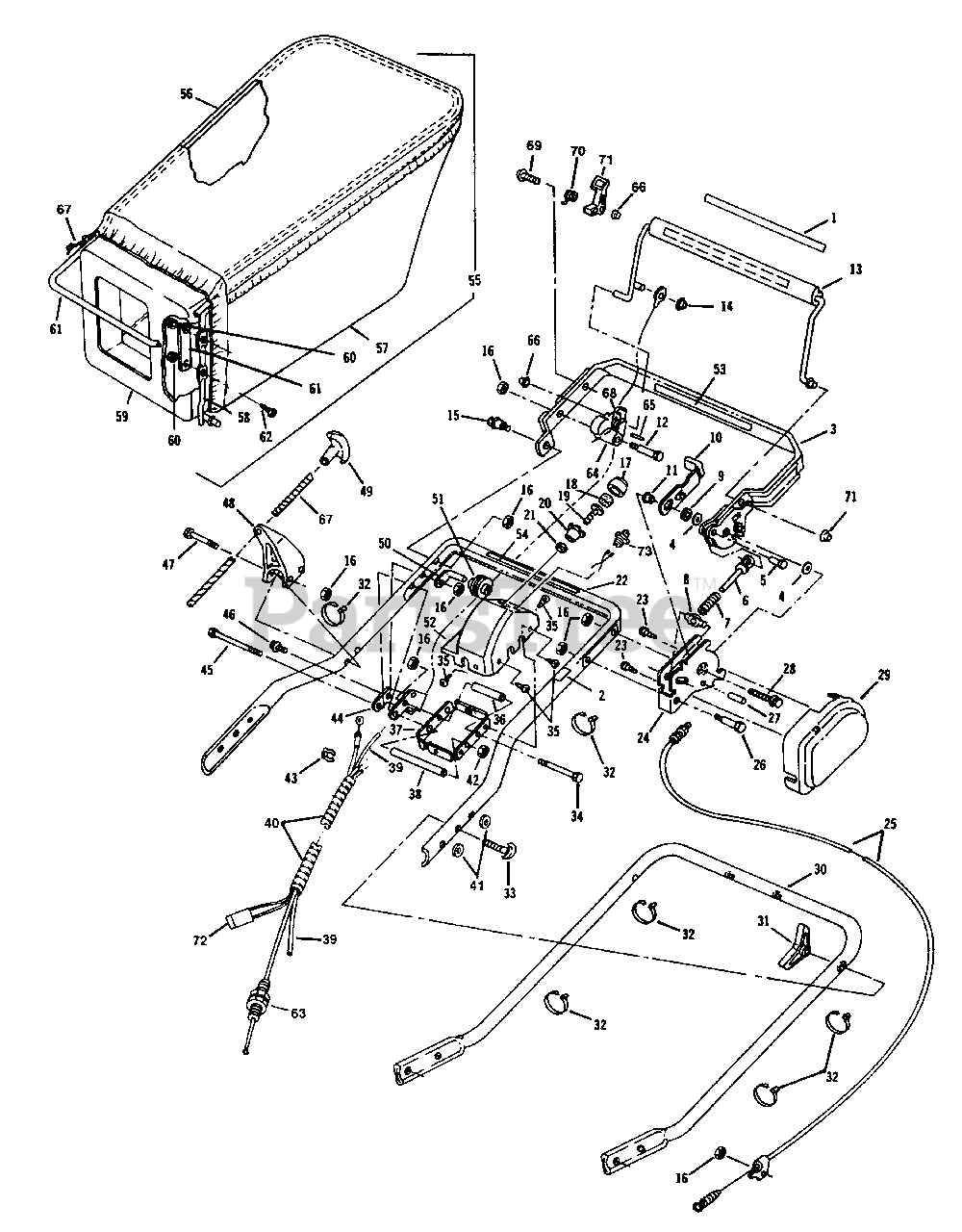

HANDLE AND REAR CATCHER GROUP MODEL: 8155 Parts Diagram

  • Title

1

Lawn-Boy 611335

Decal-Engine/ Blade

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611236

Decal-Drive Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683553

Top Handle and Grip Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 303254

Washer-Spring
(Superseded to 121-4605)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

5

Lawn-Boy 611873

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611867

Rod-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611871

Spring-Compression

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611870

Pivot Pin-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 306359

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611864

Lever Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 611865

Spacer-Flanged

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611222

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 683429

Control Lever and Nut Assem.
(Superseded to 683728)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 611202

Bolt Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 611072

Primer Bulb

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611114

Filter

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 607311

Primer Base

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 611242

Cup

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 608027

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 6

0

22

Lawn-Boy 611863

Handle Section-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 609807

Screw-Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 611872

Bracket-Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 683199

Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$121.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611876

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 611866

Roll Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 611874

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 611875

Cover-Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 612157

Handle-Lower

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 607544

Knob-Folding Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

33

Lawn-Boy 611205

Screw
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 611246

Screw-Hex Hd. Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 606537

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

36

Lawn-Boy 611223

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 611226

Plate-Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 611225

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612232

Tube-Primer
(Superseded to 611231)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 611460

Spiral Tubing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 609739

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

42

Lawn-Boy 611245

Jam-Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 611224

Retaining Ring-Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 611196

Bracket-Clutch Cable

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611228

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$16.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 609891

Screw-Clutch Cable Brk't.
(Superseded to 700138)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 682684

Rope Guide Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 609477

Handle-Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 611194

Pivot Bracket-Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 611195

Pulley
(Superseded to 612564)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 611299

Cover-Primer Housing and Switch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 611237

Decal-Drive Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611316

Decal-Start Instruct

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 682922

Grass Catcher and Bag Assembly
(Superseded to 683796)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 611530

Hanger Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$131.99

$

In Stock, only 2 left!

0

57

Lawn-Boy 682982

Grass Bag Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 683536

Latch Bar Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611500

Bag Adaptor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 602315

Nut-Bag Adaptor

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

61

Lawn-Boy 611501

Bar-Reinforcing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 611499

Screw-Bar Adaptor

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 683552

Control Cable Assem.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 683430

Cam and Roll Pin Assem.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 309301

Roll Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

66

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

67

Lawn-Boy 607874

Rope

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

68

Lawn-Boy 612163

Cam

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

69

Lawn-Boy 612379

Screw-Pivot

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

70

Lawn-Boy 611797

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 611798

Stop Latch Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 611334

Decal Latch Lever

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown.

$

$

Not available

Lawn-Boy 611311

Decal ON/OFF

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown.

$

$

Not available

72

Lawn-Boy 683555

Wiring Harness

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

73

Lawn-Boy 682750

Rotary Switch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
