815154 - Gravely 42", 48", 54" Bagger (SN: 000101 & Above) Blower Mounting (48 and 54 Inch Decks) Parts Diagram

42", 48", 54" Bagger

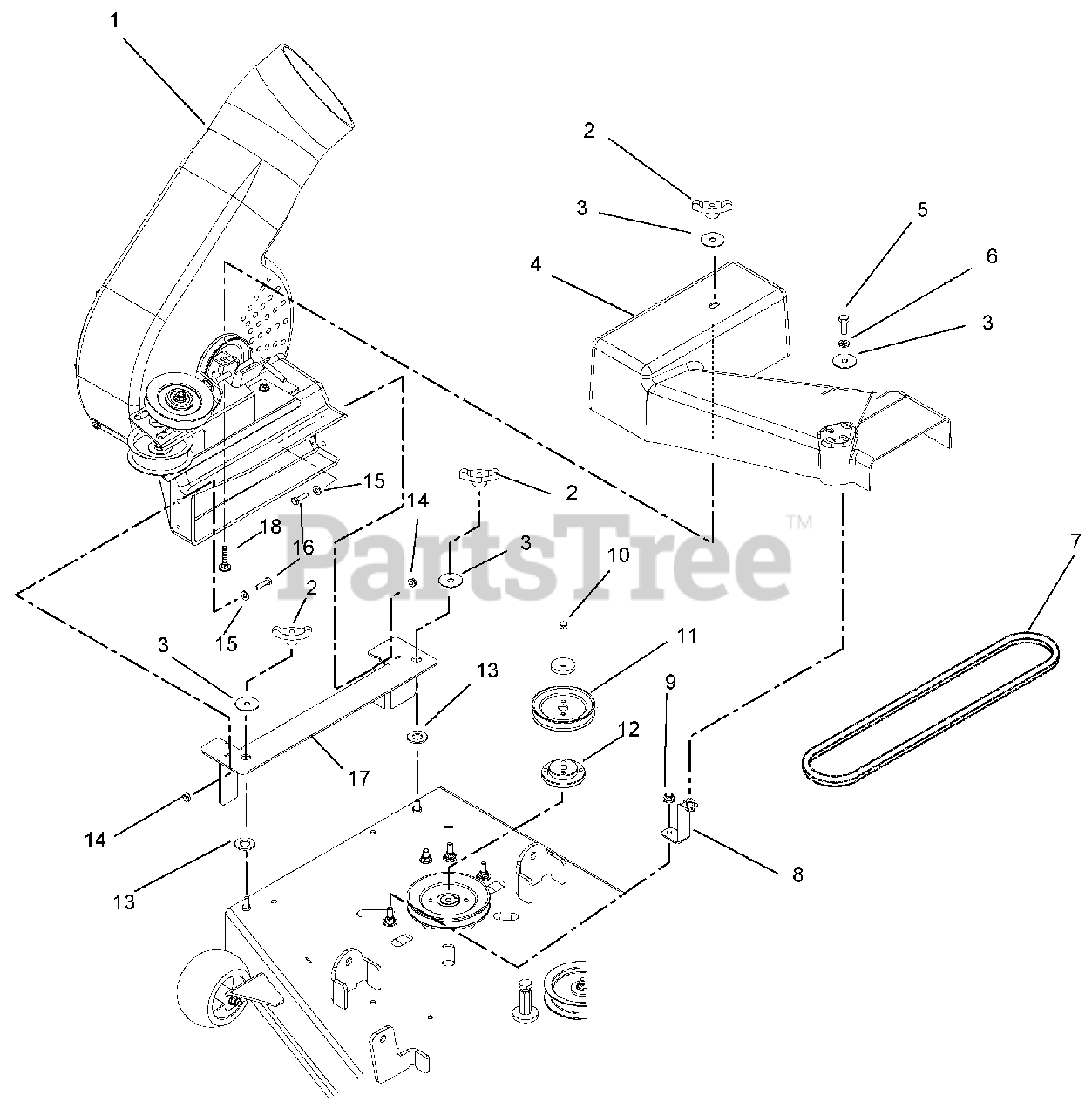

Blower Mounting (48 and 54 Inch Decks) Parts Diagram

  • Title

1

Gravely 51514700

Housing, Blower

$853.99

$

Usually ships in 4-12 days

0

2

Gravely 07534800

Knob, Wing, .312-18

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06439300

Washer, Flat, Steel, .38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 51511600

Belt Cover, with Decal

$165.99

$

Usually ships in 4-12 days

0

5

Gravely 05948700

Bolt, Hex, .38-16 x 1.00 – Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308800

Washer, Lock, .38
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 07216300

V-Belt, 4L Raw Laminated (48-Inch Decks)

Note: (48-Inch Decks)

$42.99

$

In Stock, only 4 left!

0

Gravely 07223700

V-Belt, HA Wrapped (54-Inch Decks)

Note: (54-Inch Decks)

$37.99

$

Usually ships in 4-12 days

0

8

Gravely 03375400

Standoff, XL Blower Cover

$64.99

$

Usually ships in 4-12 days

0

9

Gravely 06545400

Nut, Nylon Lock, .312
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05980600

Bolt, Hex, .38-16 x 1.75 – Grade 8

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 00169600

Sheave, 4.00 Diameter

$20.99

$

In Stock, only 1 left!

0

12

Gravely 00169800

Assembly, Sheave Adapter

$143.99

$

In Stock, only 2 left!

0

13

Gravely 06430300

Washer, Flat, Steel, .656 x 1.25 x .10

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06500012

Nut, Locking-Top-Flange, .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

15

Gravely 06437300

Washer, Flat, Steel, .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05947700

Bolt, Hex, .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

17

Gravely 03373251

Bracket, Blower Weldment

$72.99

$

In Stock, only 1 left!

0

18

Gravely 06212100

Bolt, Round Head Square Neck, .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0
