815154 - Gravely 42", 48", 54" Bagger (SN: 000101 & Above) Bagger Cover Parts Diagram

42", 48", 54" Bagger

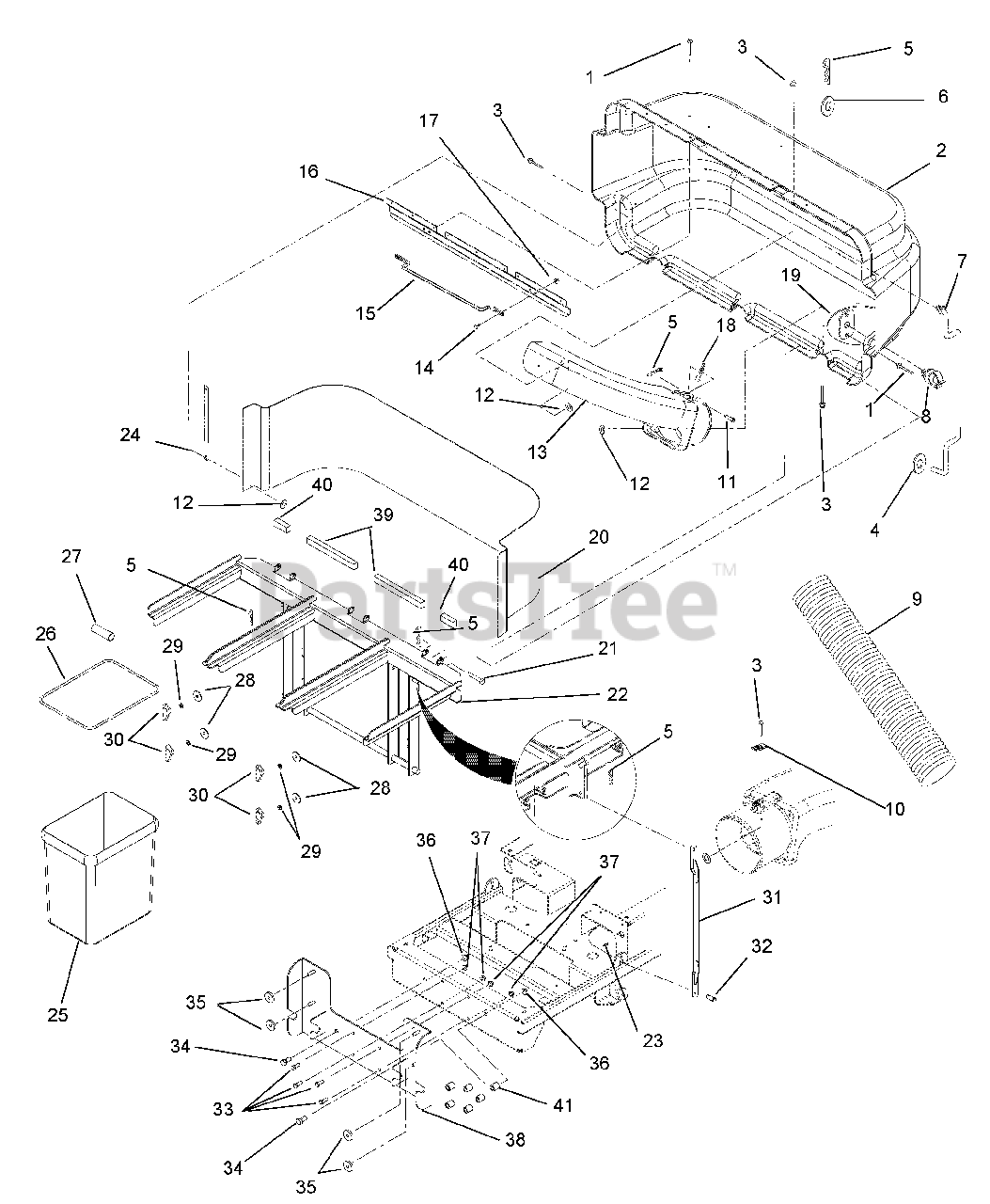

Bagger Cover Parts Diagram

  • Title

1

Gravely 06802500

Rivet, Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

2

Gravely 61556800

Cover, Bagger with Decal

$

$

Not available

3

Gravely 06807600

Rivet, Pop .187 x .375

$

$

Not available

4

Gravely 00548400

Retainer, .38 Push-On

$1.49

$

In Stock, only 2 left!

0

5

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06436200

Washer-Flat-Steel .046 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00292600

Prop Rod, Bagger

$58.99

$

Usually ships in 4-12 days

0

8

Gravely 07534100

Clip .38

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 04222900

Bagger Hose 45"

$129.99

$

In Stock, Qty 10

0

10

Gravely 07000026

Thumb Latch

$9.49

$

In Stock, only 2 left!

0

11

Gravely 06815300

Pin, Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06442700

Washer, Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 00165900

Boot, Upper

$121.99

$

Usually ships in 4-12 days

0

14

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 00453000

Bagger Handle

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 00450851

Latch, Cover

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00168300

Indicator, Flow

$24.99

$

In Stock, only 1 left!

0

19

Gravely 00294400

Plate, Rod Clip

$13.99

$

In Stock, only 1 left!

0

20

Gravely 00166900

Screen, Bagger

$

$

Not available

21

Gravely 02747500

Pin, Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 1 left!

0

22

Gravely 03372951

Weldment, XL Bagger Frame

$563.99

$

Usually ships in 4-12 days

0

23

Gravely 06714900

Pin, Hair, External- #16

$0.99

$

In Stock, Qty 20+

0

24

Gravely 00174851

Strap, Cover

$13.99

$

Usually ships in 4-12 days

0

25

Gravely 03370700

Bag, Mesh

$91.99

$

Usually ships in 4-12 days

0

26

Gravely 00663200

Frame, Bag

$40.99

$

Usually ships in 4-12 days

0

27

Gravely 00677000

Hose, .38 x .50 x 3.00 Vinyl

$

$

Not available

28

Gravely 06441700

Washer, Flat Steel .390 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06308800

Washer, Lock .38 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 07500109

Knob, Wing .38-16

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 04720151

Strap, Bagger

$43.99

$

Usually ships in 4-12 days

0

32

Gravely 06814800

Pin, Clevis .38 x .75

$3.99

$

In Stock, only 4 left!

0

33

Gravely 05958400

Bolt, Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 05966600

Bolt, Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

35

Gravely 06400006

Washer, Flat Steel .406 x 1.50 .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

36

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 04719151

Mount, Rear Bagger

$180.99

$

Usually ships in 4-12 days

0

39

Gravely 03752800

Grass Block, 10.5-In. Foam

$20.99

$

In Stock, only 2 left!

0

40

Gravely 03752900

Grass Block, 4-In. Foam

$20.99

$

Usually ships in 4-12 days

0

41

Gravely 04724300

Spacer

$13.99

$

Usually ships in 4-12 days

0
