815134 - Gravely 34" Bagger (SN: 001468 & Above) Bagger Frame Parts Diagram

34" Bagger

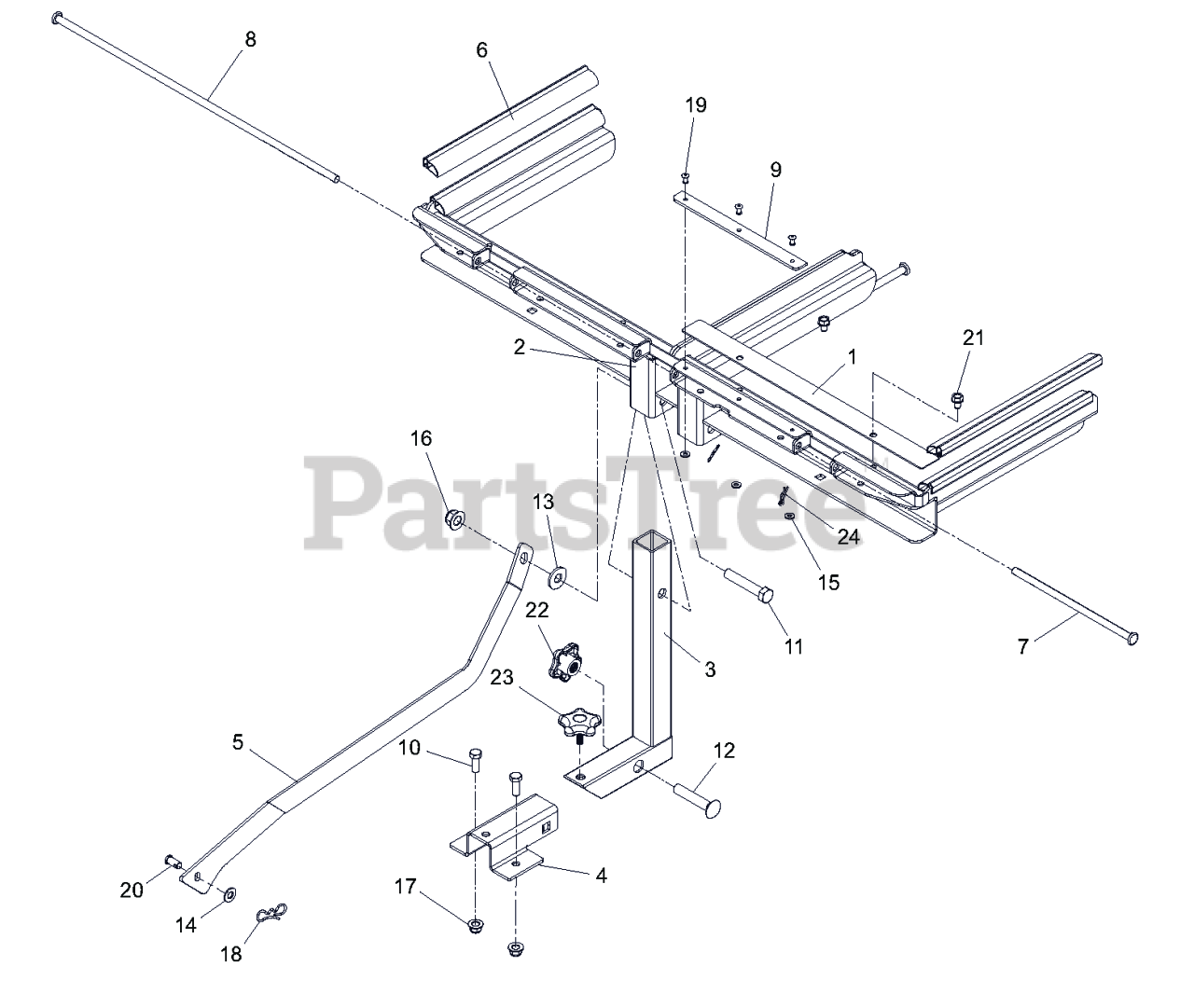

Bagger Frame Parts Diagram

  • Title
1

Gravely 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 04795751

WLDMT, BAGGER MOUNT POST(2BKT)

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 04409751

BRKT, RECEIVER SLEEVE INSERT

$41.99

$

In Stock, only 2 left!

0

4

Gravely 04409851

BRKT, RECEIVER LOWER

$34.99

$

In Stock, only 1 left!

0

$53.99

$

In Stock, only 1 left!

0

6

Gravely 04439500

SEAL, BULK

$12.99

$

In Stock, only 2 left!

0

7

Gravely 04443400

PIN, BAGGER HINGE (L)

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 04443500

PIN, BAGGER HINGE (R)

$7.99

$

Usually ships in 4-12 days

0

9

Gravely 04446700

SEAL, HINGE

$

$

Not available

10

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06225700

@BLT-RDHDSQNK .50-13X2.75 G5YZ
(Superseded to 06200327)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

21

Gravely 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07500225

KNOB, WING

$21.99

$

Usually ships in 4-12 days

0

23

Gravely 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

24

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0
