815052 - Gravely 52" Edge/ZT Bagger (SN: 000101 & Above) Bagger Hood Assembly Parts Diagram

52" Edge/ZT Bagger

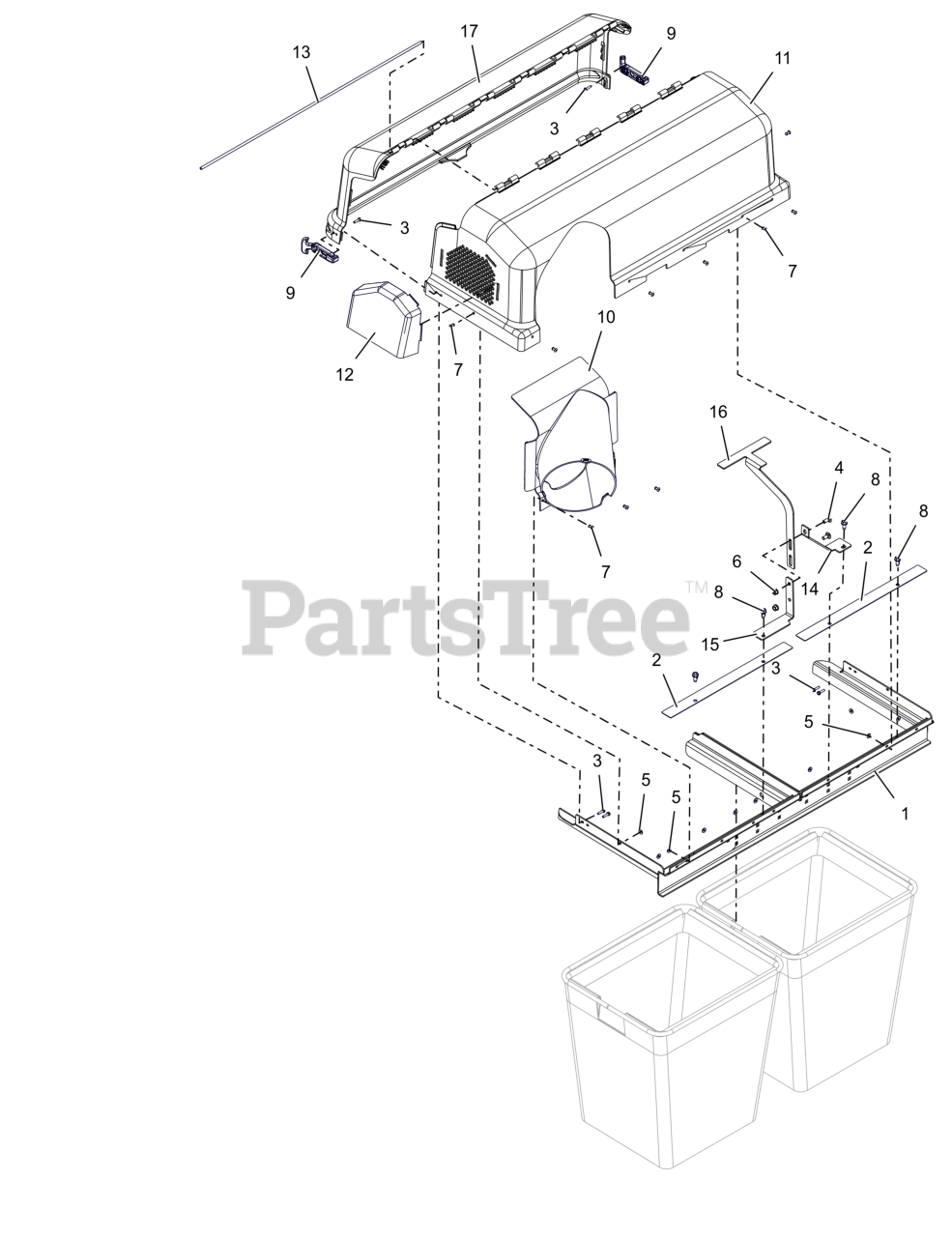

Bagger Hood Assembly Parts Diagram

  • Title

1

Gravely 09684851

WLDMT, BAGGER FRAME (BLACK)

$193.99

$

Usually ships in 4-12 days

0

2

Gravely 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

4

Gravely 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06401029

WSHR-FL-STL .196X.50X.06 ZC120

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06800107

RIVET, #66 STEEL POP PD BLACK

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

9

Gravely 09079500

LATCH, RUBBER

$34.99

$

In Stock, Qty 20+

0

10

Gravely 09678302

INTAKE REAR, BAGGER

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 09684500

HOOD, REAR BAGGER

$

$

Not available

12

Gravely 09684600

HOOD, VENT BAGGER

$11.99

$

Usually ships in 4-12 days

0

13

Gravely 09684700

ROD, HINGE .25" X 32.5"

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 09733951

BRKT, SUPPORT ARM (BLACK)

$

$

Currently unavailable

15

Gravely 09736351

BRKT, BAGGER TOP (BLACK)

$

$

Currently unavailable

16

Gravely 09737351

RIB, BRKT BAGGER (BLACK)

$

$

Currently unavailable

17

Gravely 51801900

KIT- BAGGER DOOR W/DECAL

$79.99

$

Usually ships in 4-12 days

0
