815048 - Gravely 48" Power Bagger (SN: 000101 & Above) Pump Mount and Cover 48" Parts Diagram

48" Power Bagger

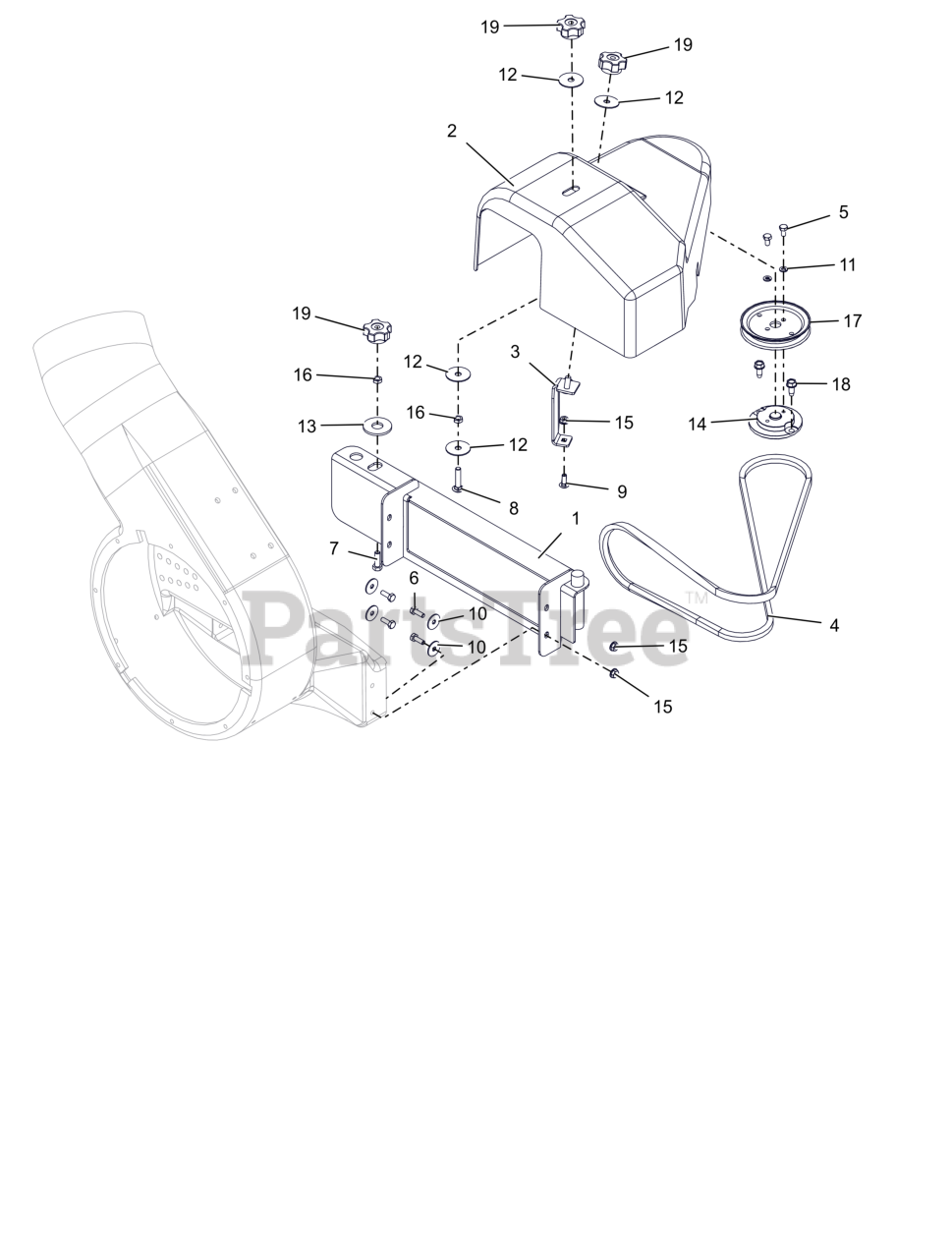

Pump Mount and Cover 48" Parts Diagram

  • Title

1

Gravely 05274251

WLDMT, PUMP MOUNTING (BLACK)
(Superseded to 51530000)

$153.99

$

Usually ships in 4-12 days

0

2

Gravely 51536400

KIT, COVER W/DECAL

$129.99

$

Usually ships in 4-12 days

0

3

Gravely 04865451

WLDMT, BAGGER BELT COVER BRKT

$24.99

$

Usually ships in 4-12 days

0

4

Gravely 07200905

V-BELT, 48"

$77.99

$

Usually ships in 4-12 days

0

5

Gravely 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Gravely 05901802

BLT, HEX .31-18X1.00 G8 ZCC

$1.49

$

In Stock, Qty 7

0

8

Gravely 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06401020

WSHR,FLT .281X1.000X.063 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06401009

WSHR,LK-REG .250X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06401032

WSHR,FLT .688X1.75X.134 ZCC

$1.49

$

In Stock, Qty 5

0

14

Gravely 05273100

ADAPTOR, BAGGER SHEAVE

$89.99

$

Usually ships in 4-12 days

0

15

Gravely 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Gravely 07344900

SHEAVE, SPINDLE (4.25 HA )

$18.99

$

Usually ships in 4-12 days

0

18

Gravely 07400127

SCR,TAP .312-18X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 12

0

19

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0
