815046 - Ariens 42" Edge Bagger Kit (SN: 000101 & Above) Bagger Hood Assembly Parts Diagram

42" Edge Bagger Kit

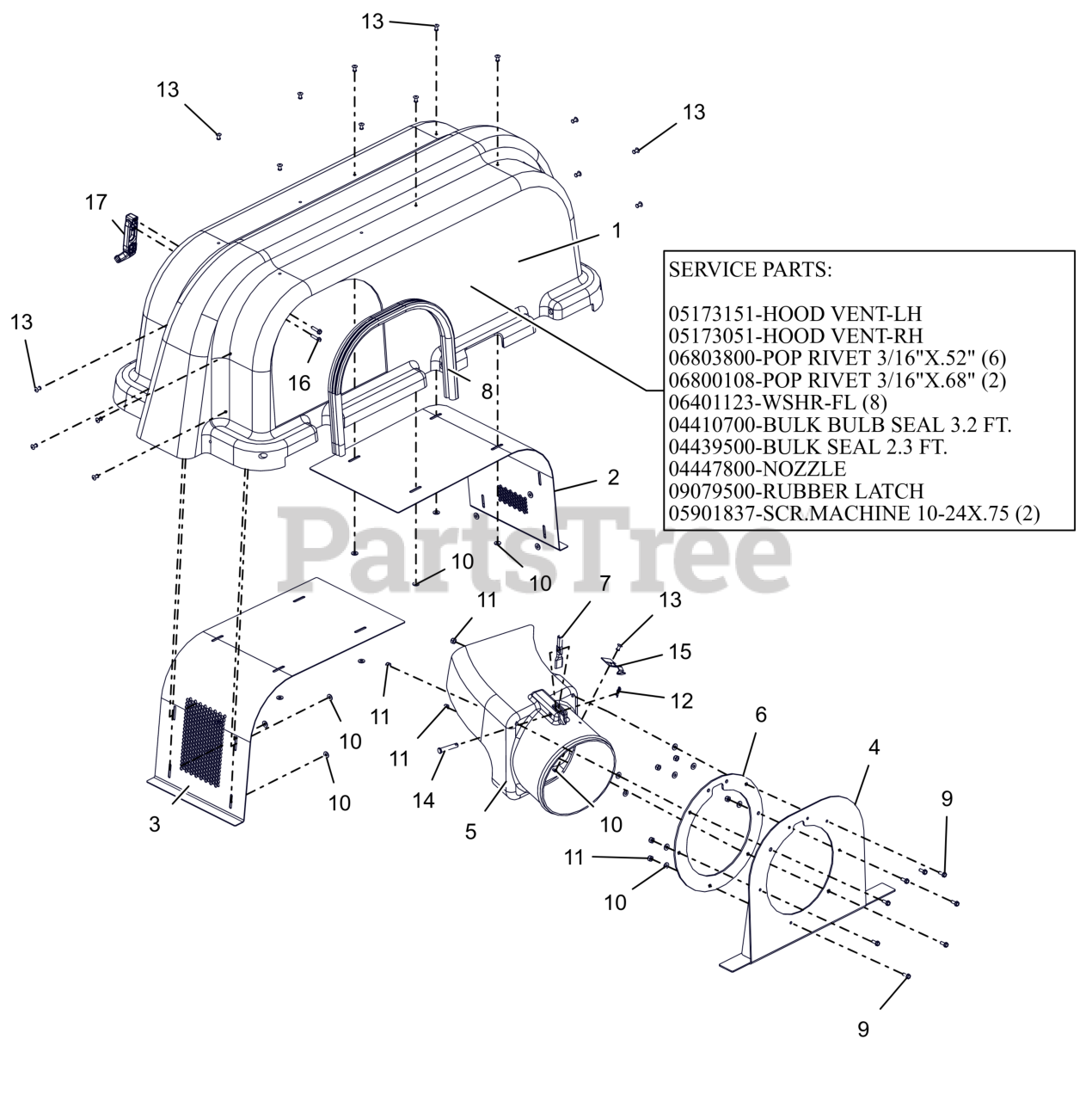

Bagger Hood Assembly Parts Diagram

  • Title

1

Ariens 51577800

KIT, HOOD ASSEMBLY

$

$

Not available

2

Ariens 05173151

VENT, BAGGER LH HOOD

$35.99

$

Usually ships in 4-12 days

0

3

Ariens 05173051

VENT, BAGGER RH HOOD

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 04439751

WLDMT, TUBE SUPPORT

$59.99

$

Usually ships in 4-12 days

0

5

Ariens 04446800

BOOT, UPPER

$116.99

$

Usually ships in 4-12 days

0

6

Ariens 04409900

SEAL, UPPER BOOT

$

$

Not available

7

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

8

Ariens 04439500

SEAL, BULK

Note: sold per foot, order 3ft

$12.99

$

In Stock, only 2 left!

0

8

Ariens 04410700

SEAL, BULB - BAGGER HOOD

Note: sold per foot, order 4 ft

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 05901825

BLT, HWH #10-24X.50 ZCC

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06401123

WSHR, FLT .219X.500X.049 ZCC

$0.99

$

Usually ships in 4-12 days

0

11

Ariens 06500915

NUT-LK-NYL #10-24 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 07000026

THUMB LATCH

$9.49

$

In Stock, only 2 left!

0

16

Ariens 05901837

BLT, HWH #10-24X.75 ZCC

$2.49

$

In Stock, Qty 15

0

17

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0
