815045 - Ariens 42", 52" Power Bagger (SN: 000101 & Above) Bagger Frame Assembly Parts Diagram

42", 52" Power Bagger

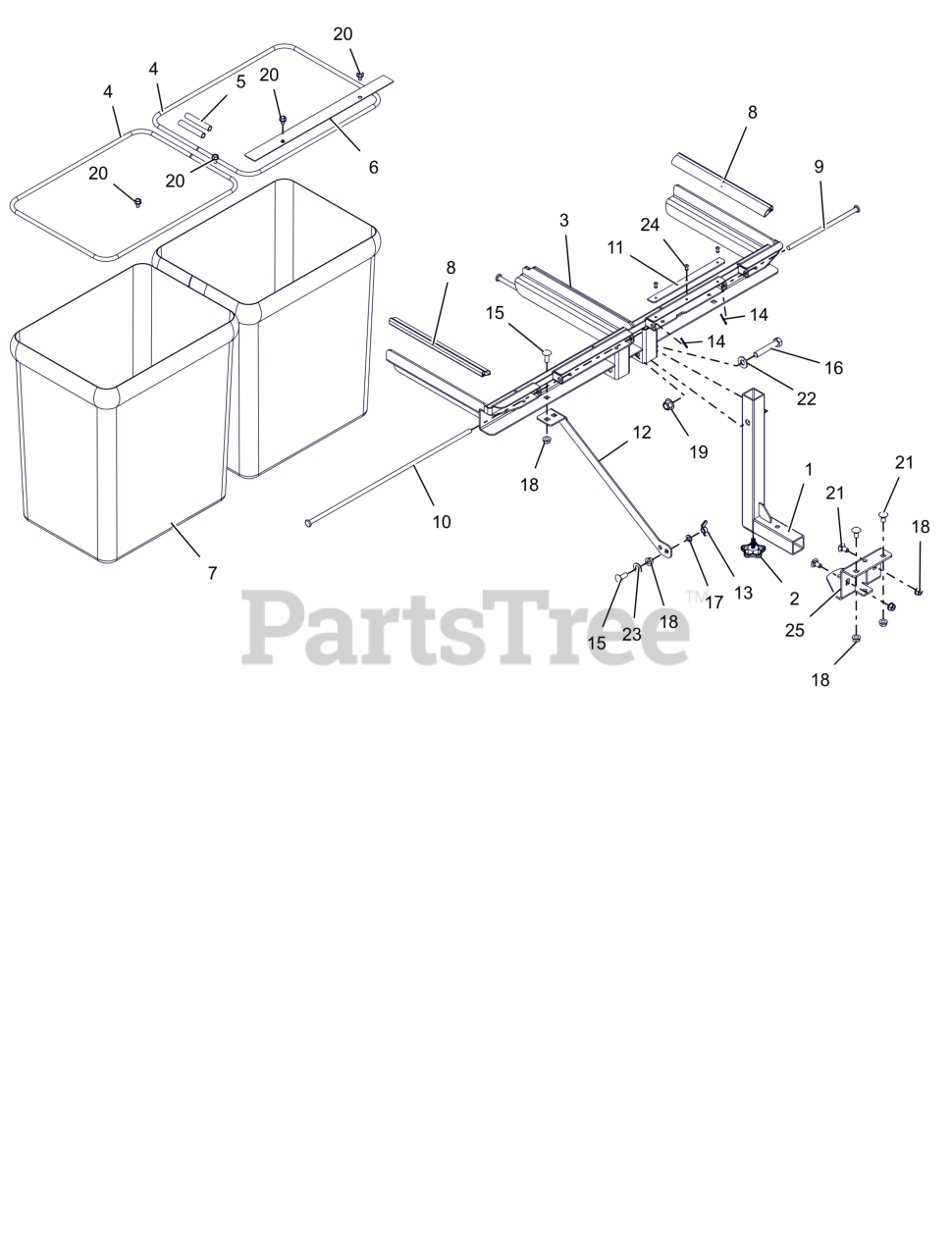

Bagger Frame Assembly Parts Diagram

  • Title
1

Ariens 04795751

WLDMT, BAGGER MOUNT POST(2BKT)

$90.99

$

Usually ships in 4-12 days

0

2

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

3

Ariens 04409551

ASS'Y, BAGGER FRAME UPPER

$220.99

$

Usually ships in 4-12 days

0

4

Ariens 00663200

FRAME, ZOOM BAG

$40.99

$

Usually ships in 4-12 days

0

5

Ariens 00677000

HOSE, .38 X.50 X 3.00 VINYL

$

$

Not available

6

Ariens 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 03862900

BAG, MESH ZOOM

$56.99

$

In Stock, only 2 left!

0

8

Ariens 04439500

SEAL, BULK

$12.99

$

In Stock, only 2 left!

0

9

Ariens 04443400

PIN, BAGGER HINGE (L)

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 04443500

PIN, BAGGER HINGE (R)

$7.99

$

Usually ships in 4-12 days

0

11

Ariens 04446700

SEAL, HINGE

$

$

Not available

12

Ariens 05172651

BRACKET, BAGGER SUPPORT (EXT)

$19.99

$

In Stock, only 1 left!

0

13

Ariens 06502300

NUT-WING .375-16 ZCC

$3.99

$

In Stock, Qty 5

0

14

Ariens 06700223

PIN, HAIR #225 .072X1.09

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05901836

BLT, HEX .50-13X2.75 G8 ZCC

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06200312

BLT, RHSN .38-16X.750 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

22

Ariens 06401128

WSHR, FLT .531X1.250X.100 ZCC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06401112

WSHR, FLT .505X1.00X.062 ZCC

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

25

Ariens 04835351

BRKT, HITCH TONGUE

$64.99

$

Usually ships in 4-12 days

0
