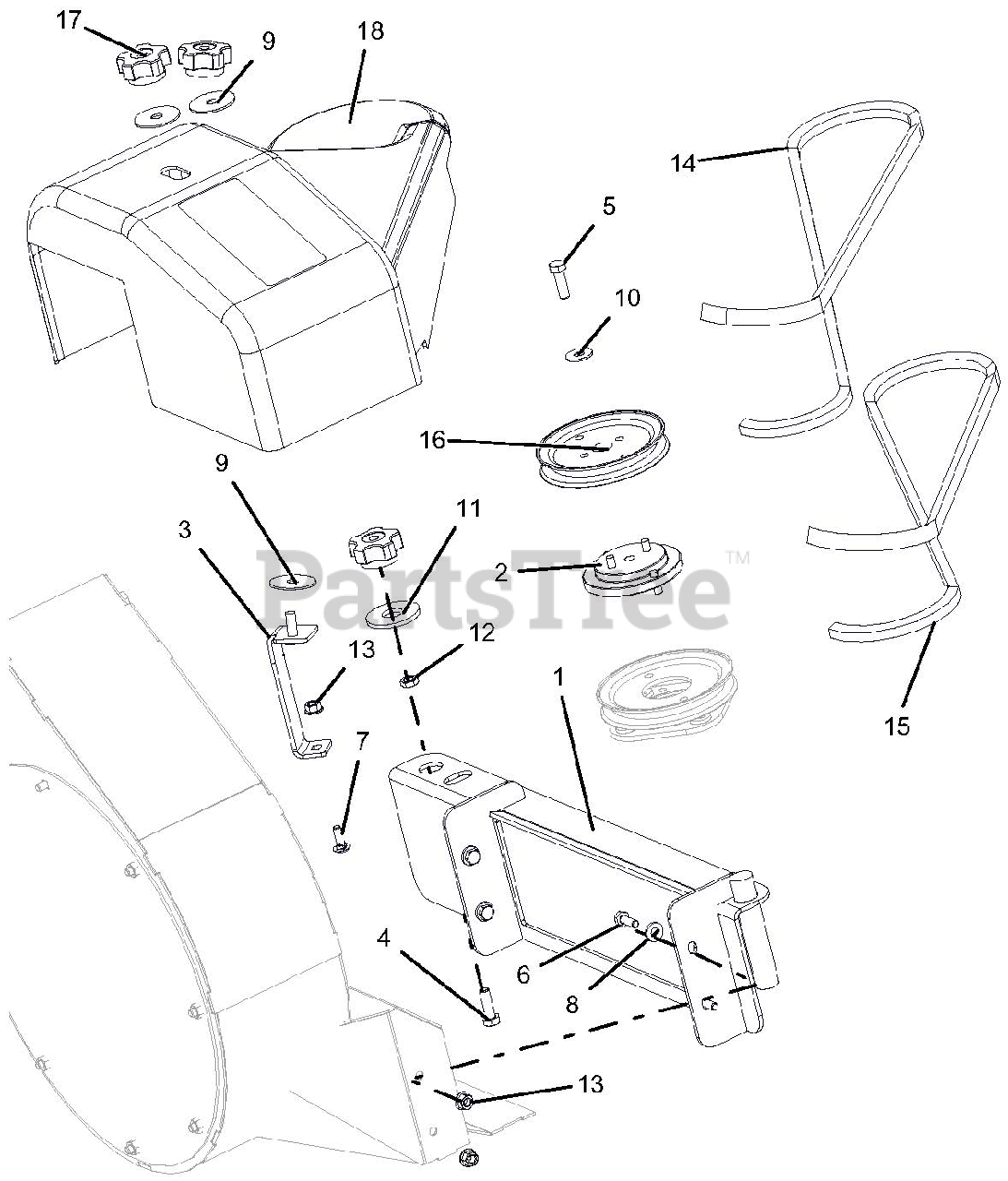

815043 - Gravely 42", 52", 60" Powered Bagger (SN: 000101 - 002999) Belts And Covers Parts Diagram

42", 52", 60" Powered Bagger

Belts And Covers Parts Diagram

  • Title

1

Gravely 04754851

WLDMT, PUMP MOUNT

Note: (BLACK)

$129.99

$

Usually ships in 4-12 days

0

2

Gravely 04774700

ASM, BLOWER SHEAVE ADAPTER
(Superseded to 51536600)

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 04865451

WLDMT, BAGGER BELT COVER BRKT

Note: (BLACK)

$24.99

$

Usually ships in 4-12 days

0

4

Gravely 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

5

Gravely 05901603

BLT-HEX .31-18X1.00 GR8 EP30 YWZC
(Superseded to 05901833)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5 YWZC
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06446300

WSHR-FL-STL .34 X 1.125 X .135 YWZ
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

12

Gravely 06536100

NUT, JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 07200042

BELT, BAGGER 52"

$51.99

$

In Stock, only 1 left!

0

15

Gravely 07210200

V-BELT, 42"

$51.99

$

In Stock, only 1 left!

0

16

Gravely 07344900

PULLEY, V-4.25 OD X .68 ID YWZC

$18.99

$

Usually ships in 4-12 days

0

17

Gravely 07534800

KNOB, CLAMPING

$3.49

$

In Stock, Qty 20+

0

18

Gravely 51586500

COVER, BAGGER BELT-W/DECAL

$

$

Not available
