815043 - Gravely 42", 52", 60" Powered Bagger (SN: 000101 - 002999) Bagger Frame Assembly Parts Diagram

42", 52", 60" Powered Bagger

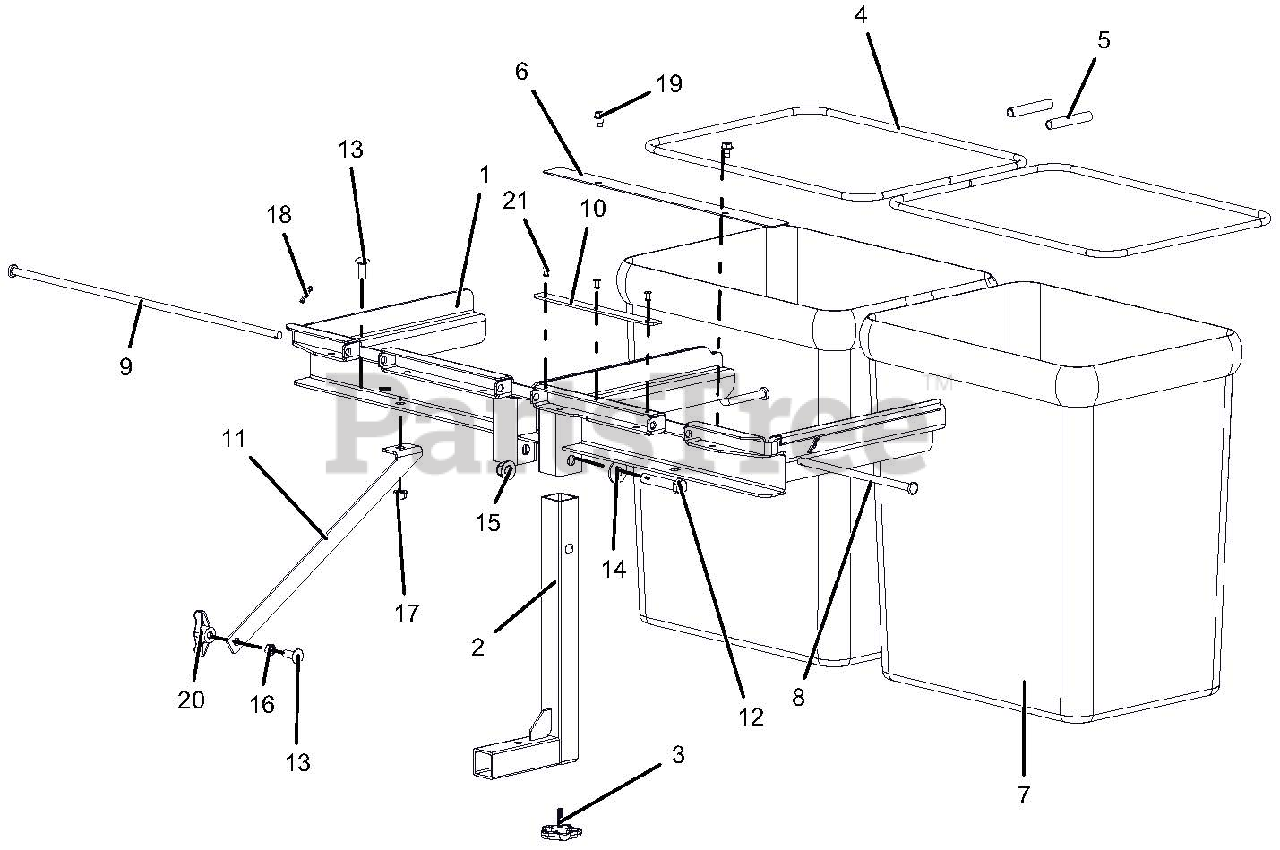

Bagger Frame Assembly Parts Diagram

  • Title

1

Gravely 04409551

ASM, BAGGER FRAME UPPER

Note: (BLACK)

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 04795751

WLDMT, BAGGER MOUNT POST

Note: (2BRKT) (BLACK)

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

4

Gravely 00663200

FRAME, BAG

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 00677000

HOSE, .38 X .50 X 3.00 VINYL

$1.49

$

Usually ships in 4-12 days

0

6

Gravely 03844151

BRKT, BAG OVERLAP

Note: (BLACK)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 03862900

BAG, MESH /ZOOM

$56.99

$

In Stock, only 2 left!

0

8

Gravely 04443400

PIN, BAGGER HINGE (L)

Note: (L)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 04443500

PIN, BAGGER HINGE (R)

Note: (R)

$7.99

$

Usually ships in 4-12 days

0

10

Gravely 04446700

SEAL, HINGE

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 04862551

STRAP, BAGGER SUPPORT
(Superseded to 05172651)

Note: (BLACK)

$19.99

$

In Stock, only 1 left!

0

12

Gravely 05953500

BLT-HEX .50-13X2.75 GR8 YWZC
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06430200

WSHR-FL-STL .531X1.250X.100 YWZC
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06535900

NUT, JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07500109

KNOB, WING .38-16 UNC NYL/TALC

$4.99

$

In Stock, only 1 left!

0

21

Gravely 06803800

RVT-POP .187x.527 DOME

$1.49

$

In Stock, Qty 20+

0
