815043 - Ariens 42", 52" Bagger (SN: 003000 & Above) Belt & Covers Parts Diagram

42", 52" Bagger

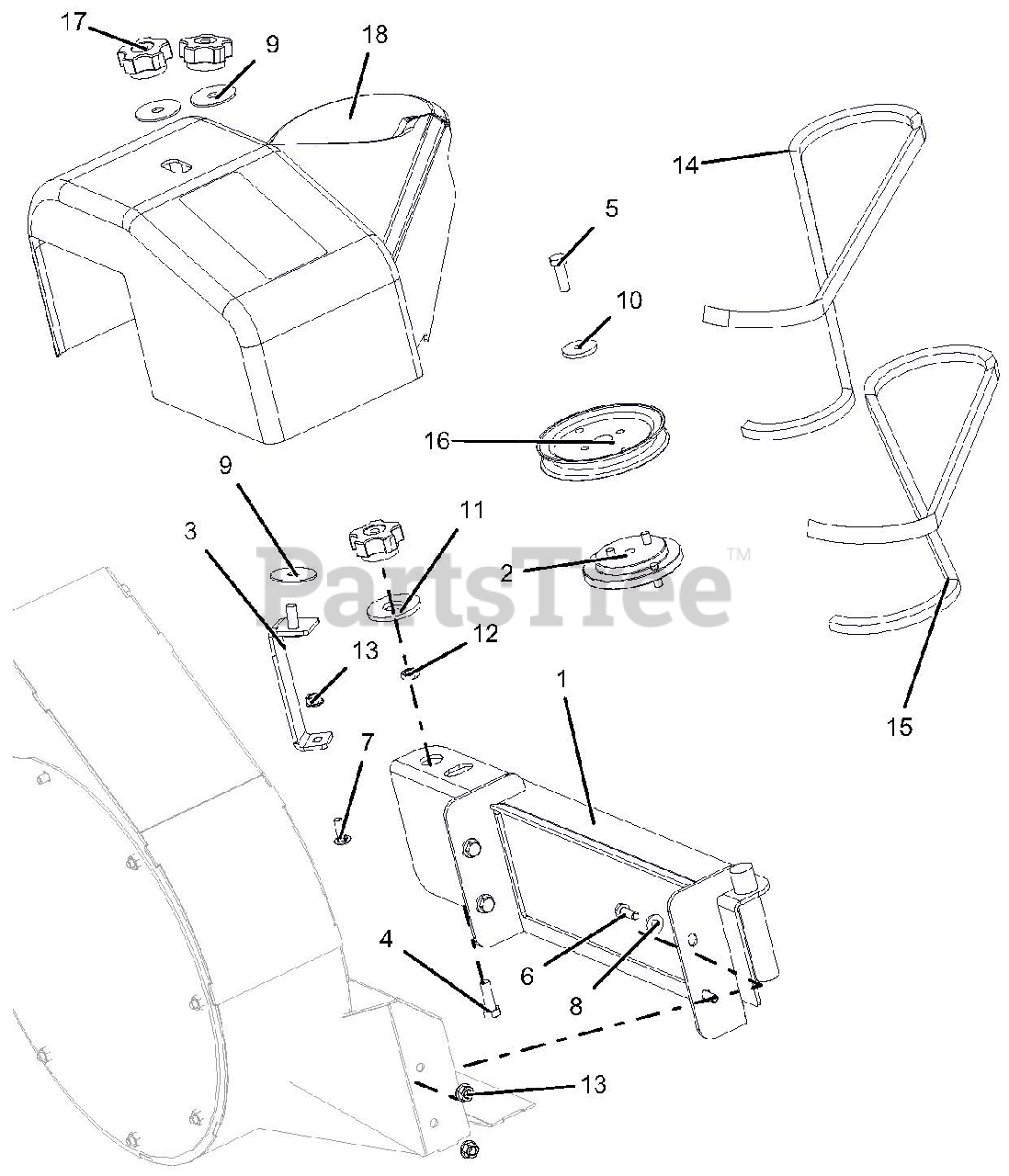

Belt & Covers Parts Diagram

  • Title

1

Ariens 04754851

WLDMT, GRASS PUMP MOUNT

$129.99

$

Usually ships in 4-12 days

0

2

Ariens 04774700

ASM, BAGGER SHEAVE ADAPTER
(Superseded to 51536600)

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 04865451

WLDMT, BAGGER BELT COVER BRKT

$24.99

$

Usually ships in 4-12 days

0

4

Ariens 05901311

BLT-HEX .31-18X1.00 GR8 YWZC
(Superseded to 05901802)

$1.49

$

In Stock, Qty 6

0

5

Ariens 05901603

BLT-HEX .31-18X1.00 GR8 M-EPYZ
(Superseded to 05901833)

$3.99

$

In Stock, only 3 left!

0

6

Ariens 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

10

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 06442900

WSHR-FL-STL.688X1.75X.134 YWZ
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

12

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07200042

V-BELT, 4L-RAW EDGE

$51.99

$

In Stock, only 1 left!

0

15

Ariens 07210200

V-BELT, HA-WRAPPED

$51.99

$

In Stock, only 1 left!

0

16

Ariens 07344900

SHEAVE, SPINDLE (4.25 HA )YWZC

$18.99

$

Usually ships in 4-12 days

0

17

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

18

Ariens 51586500

COVER, BAGGER BELT -W/DECAL

$

$

Not available
