815043 - Ariens 42", 52" Bagger (SN: 003000 & Above) Bagger Frame Assembly Parts Diagram

42", 52" Bagger

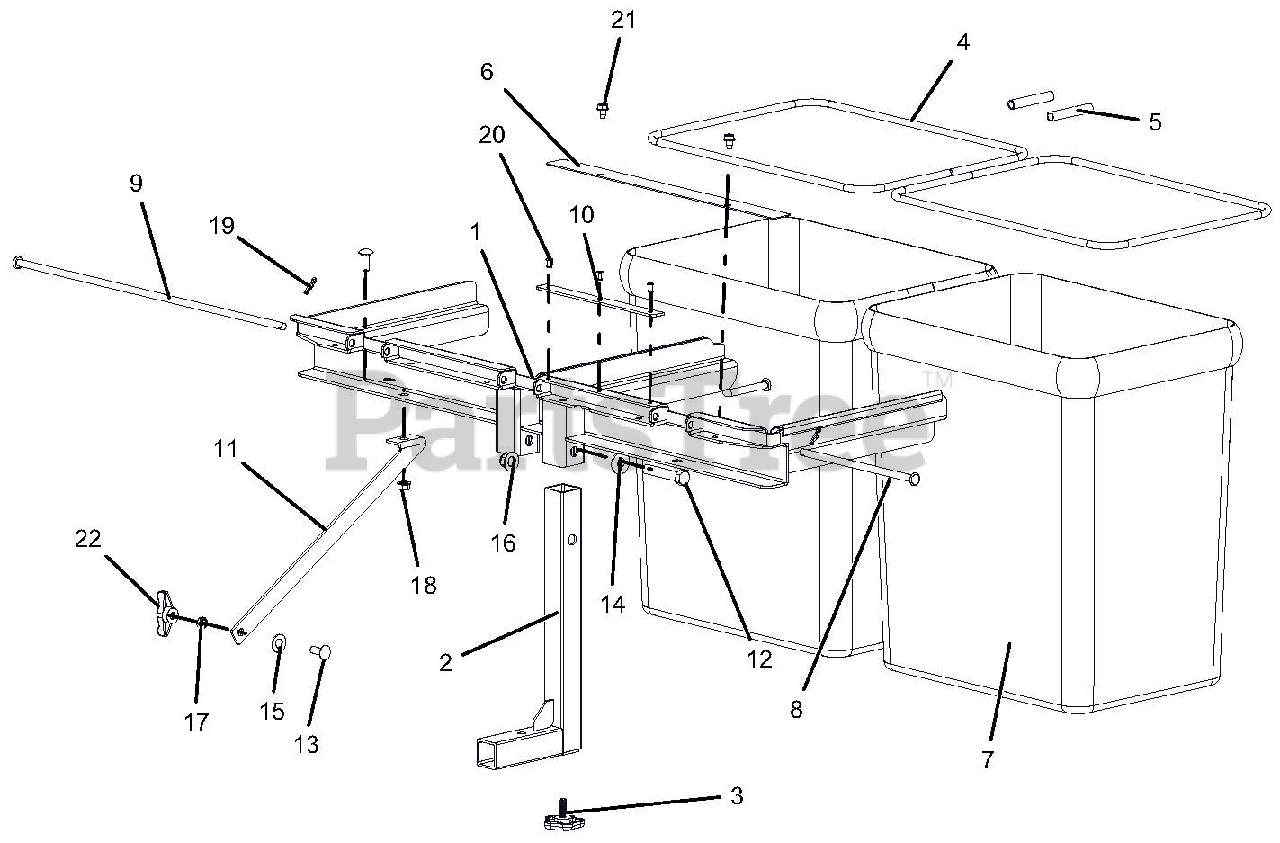

Bagger Frame Assembly Parts Diagram

  • Title

1

Ariens 04409551

ASS'Y, BAGGER FRAME UPPER

$220.99

$

Usually ships in 4-12 days

0

2

Ariens 04795751

WLDMT, BAGGER MOUNT POST(2BKT)

$90.99

$

Usually ships in 4-12 days

0

3

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

4

Ariens 00663200

FRAME, ZOOM BAG

$40.99

$

Usually ships in 4-12 days

0

5

Ariens 00677000

HOSE, .38 X.50 X 3.00 VINYL

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 03862900

BAG, MESH ZOOM

$56.99

$

Usually ships in 4-12 days

0

8

Ariens 04443400

PIN, BAGGER HINGE (L)

$7.49

$

Usually ships in 4-12 days

0

9

Ariens 04443500

PIN, BAGGER HINGE (R)

$7.99

$

Usually ships in 4-12 days

0

10

Ariens 04446700

SEAL, HINGE

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 04862551

STRAP, SUPPORT (BAGGER)
(Superseded to 05172651)

$19.99

$

In Stock, only 1 left!

0

12

Ariens 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500109

KNOB,WING .38-16 UNC NYL/TALC

$4.99

$

In Stock, only 1 left!

0
