815043 - Ariens 42", 52" Bagger (SN: 000101 - 002999) Belt Drive Assembly Parts Diagram

42", 52" Bagger

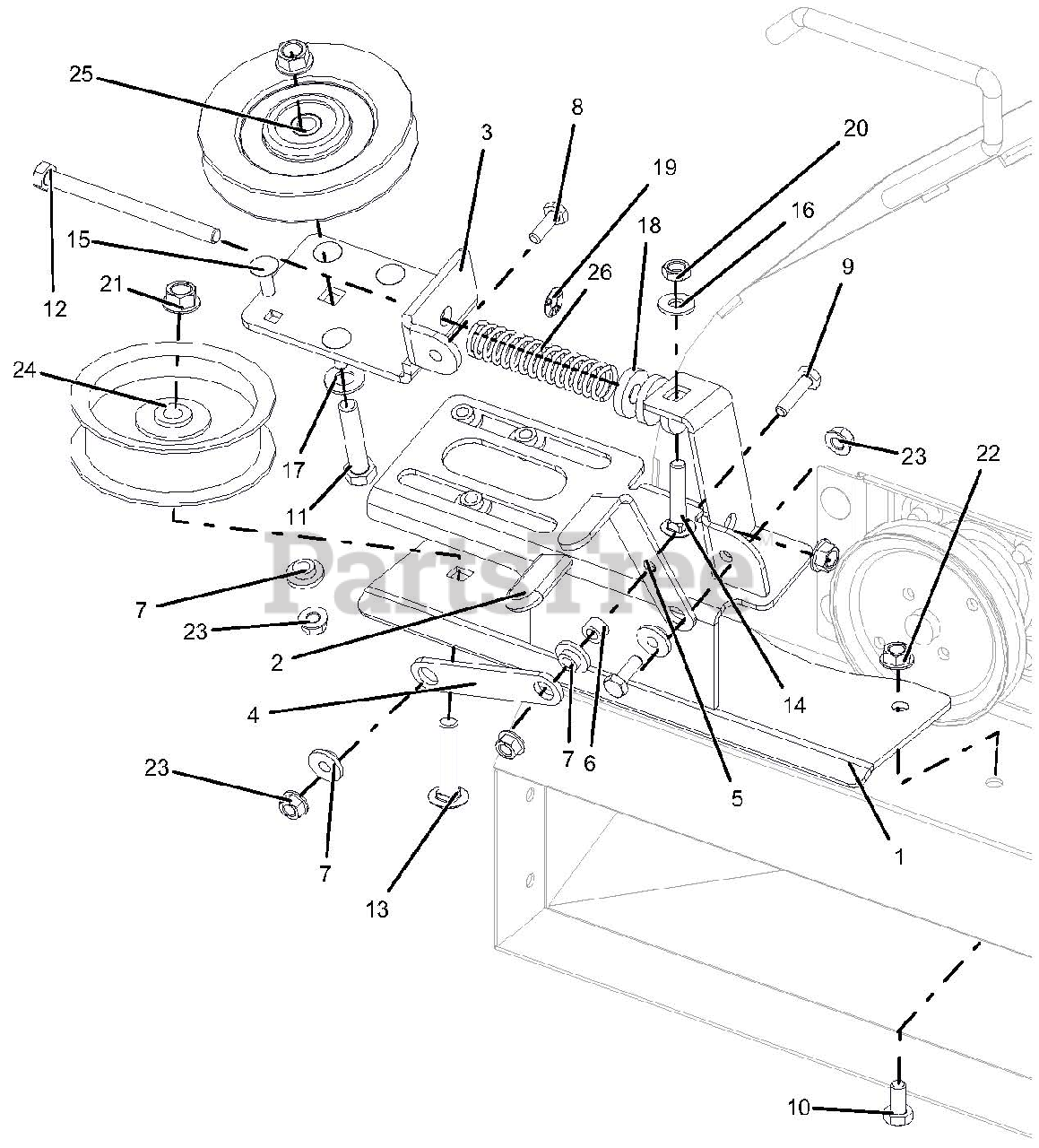

Belt Drive Assembly Parts Diagram

  • Title

1

Ariens 00853300

WELDMENT, IDLER MOUNT -2015

$77.99

$

Usually ships in 4-12 days

0

2

Ariens 04396600

GRIP, SEAT LEVER, GREY

$

$

Not available

3

Ariens 04766200

BRACKET, ADJ. PULLEY IDLER

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 04773951

LINK, TENSIONER

Note: (BLACK)

$

$

Not available

5

Ariens 04774051

HANDLE, TENSIONER

Note: (BLACK)

$

$

Not available

6

Ariens 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

7

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

Ariens 05952200

BLT-HEX .31-18X.63 GR5 YWZC
(Superseded to 05901832)

$

$

Not available

11

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06200111

@BLT-RHDSSQNK .38-16X1.75 G5YZ
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

14

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07300028

IDLER, FLG .38ID X 3.50

$39.99

$

In Stock, Qty 20+

0

25

Ariens 07327600

V-IDLER, 4.00X.38

$38.99

$

In Stock, Qty 20+

0

26

Ariens 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, Qty 6

0
