815043 - Ariens 42", 52" Bagger (SN: 000101 - 002999) Bagger Hood Assembly Parts Diagram

42", 52" Bagger

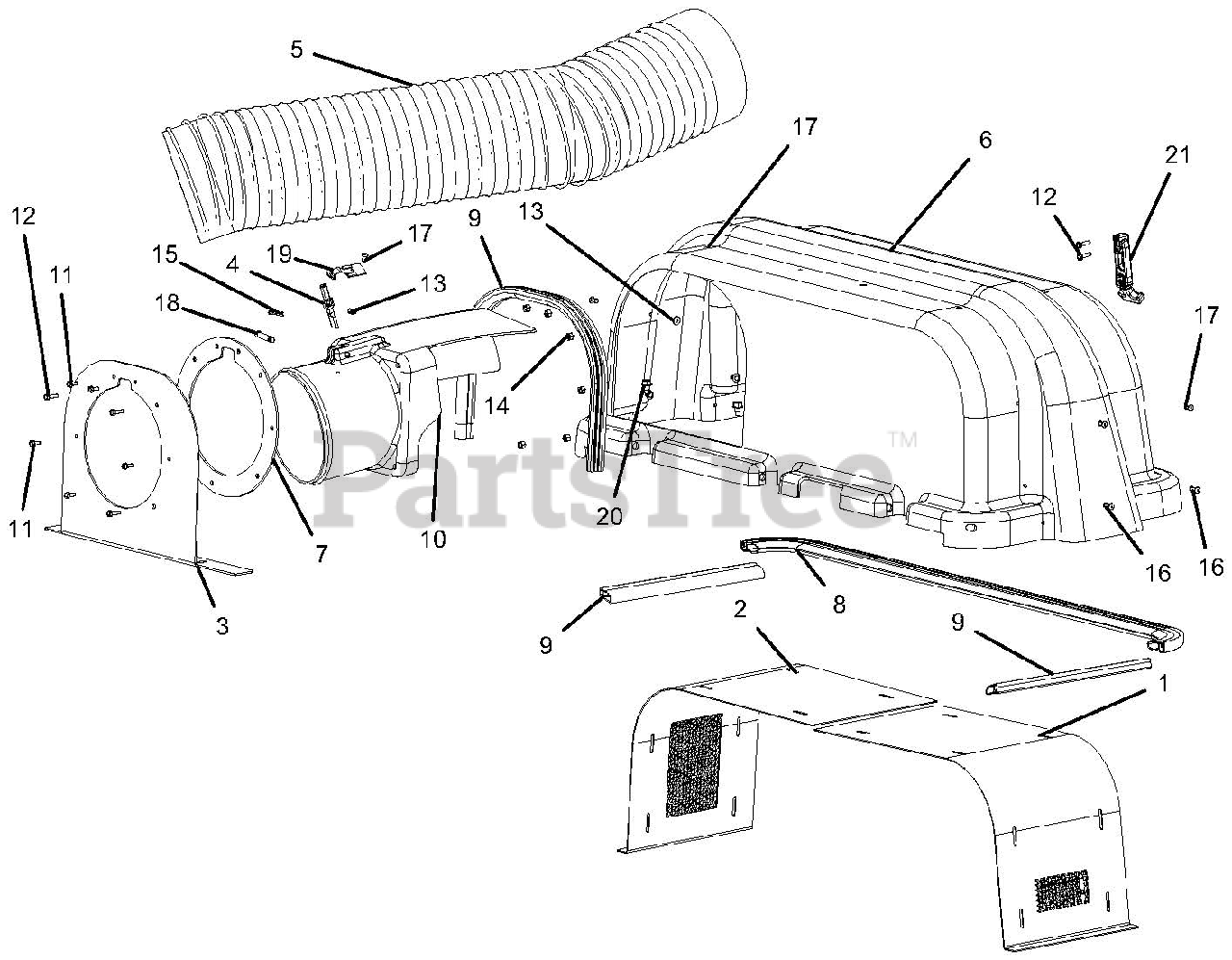

Bagger Hood Assembly Parts Diagram

  • Title
1

Ariens 04410051

WMT-BAGGER HOOD VENT, LH

Note: (BLACK)

$180.99

$

Usually ships in 4-12 days

0

2

Ariens 04431051

WMT-BAGGER HOOD VENT, RH

Note: (BLACK)

$61.99

$

Usually ships in 4-12 days

0

3

Ariens 04439700

WLDMT, TUBE SUPPORT

$

$

Not available

4

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

5

Ariens 04222900

HOSE, FLEXIBLE-47"

$129.99

$

In Stock, Qty 9

0

6

Ariens 04409600

COVER, 2-BUCKET BAGGER

$227.99

$

Usually ships in 4-12 days

0

7

Ariens 04409900

SEAL, UPPER BOOT

$

$

Not available

8

Ariens 04410700

SEAL, BULB - BAGGER HOOD

Note: SOLD IN BULK QTY OF 1FT. 3.125' IS NEEDED. ORDER QTY 4

$11.99

$

In Stock, only 1 left!

0

9

Ariens 04439500

SEAL, BULK

Note: SOLD IN BULK QTY OF 1FT. 2.310' IS NEEDED. ORDER QTY 3

$12.99

$

In Stock, only 2 left!

0

10

Ariens 04446800

BOOT, UPPER

$116.99

$

Usually ships in 4-12 days

0

11

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

13

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

14

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06800108

.187X.6835 DOME ST

$3.99

$

Usually ships in 4-12 days

0

17

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 07000026

THUMB LATCH

$9.49

$

In Stock, only 2 left!

0

20

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0
