815040 - Gravely 34" Bagger (SN: 000001 & Above) Bagger Hood Parts Diagram

34" Bagger

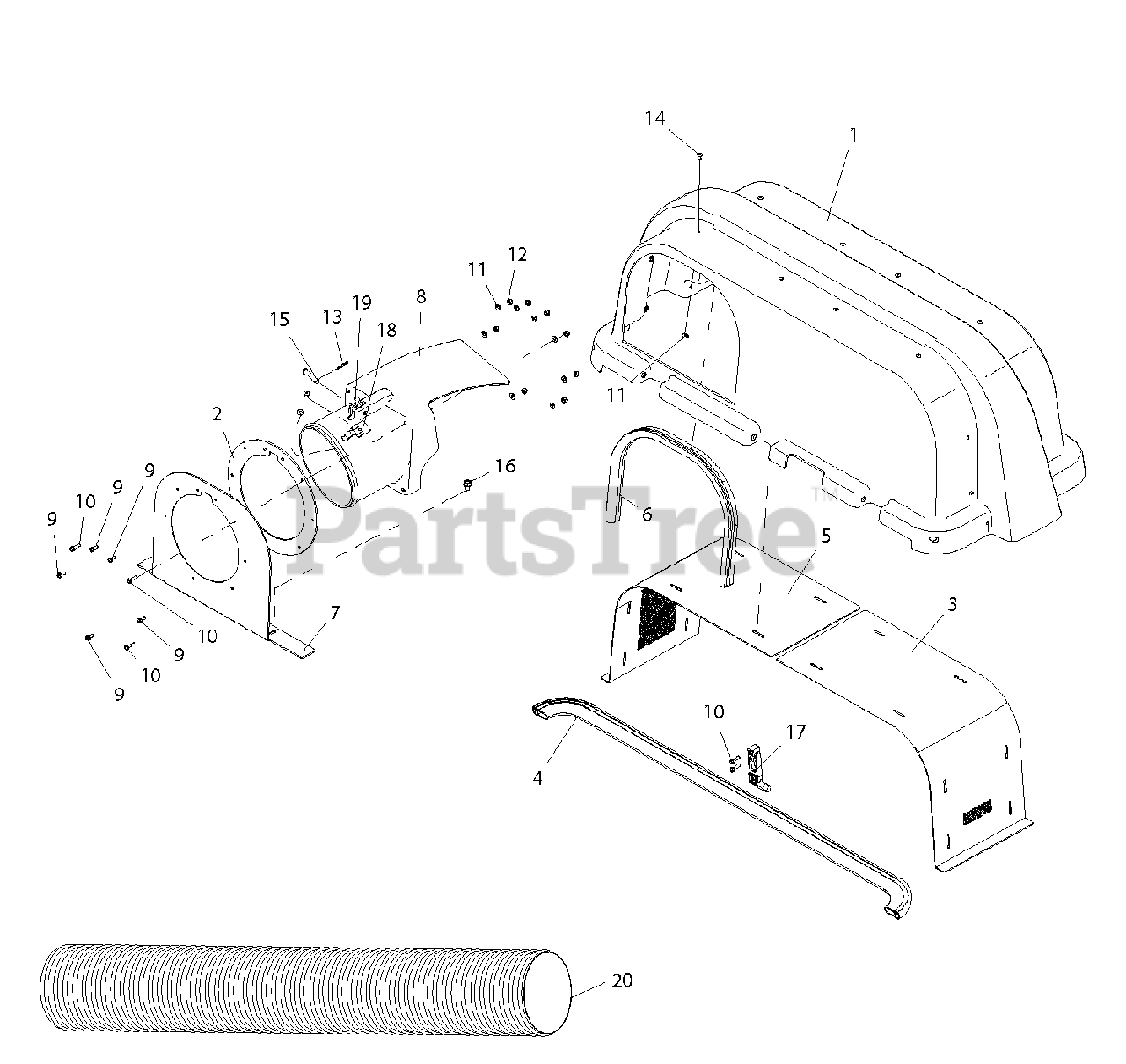

Bagger Hood Parts Diagram

  • Title

1

Gravely 04409600

COVER, 2-BUCKET BAGGER

$227.99

$

Usually ships in 4-12 days

0

2

Gravely 04409900

SEAL, UPPER BOOT

$

$

Not available

3

Gravely 04410051

WLDMT, BAGGER HOOD VENT, LH

$180.99

$

Usually ships in 4-12 days

0

4

Gravely 04410700

SEAL, BULB-BAGGER HOOD

$11.99

$

Usually ships in 4-12 days

0

5

Gravely 04431051

WLDMT, BAGGER HOOD VENT, RH

$61.99

$

Usually ships in 4-12 days

0

6

Gravely 04439500

SEAL, BULB

$12.99

$

In Stock, only 2 left!

0

7

Gravely 04439751

WLDMT, TUBE SUPPORT

$59.99

$

Usually ships in 4-12 days

0

8

Gravely 04446800

BOOT, UPPER

$116.99

$

Usually ships in 4-12 days

0

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

11

Gravely 06442700

WSHR-FL-STL
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06536000

NUT-LK-NYL #10-24 YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06800108

RVT-POP .187X.375

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06815300

PIN, CLEV .309X1.62 YWZC

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR TWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09079500

LATCH, RUBBER

$34.99

$

Usually ships in 4-12 days

0

18

Gravely 07000026

LATCH, THUMB

$9.49

$

In Stock, only 2 left!

0

19

Gravely 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

20

Gravely 04445600

BAGGER TUBE (815040)

Note: (815040)

$107.99

$

In Stock, only 1 left!

0

Gravely 04222900

BAGGER TUBE (815041, 042)

Note: (815041, 042)

$129.99

$

In Stock, Qty 10

0
