815040 - Ariens 34" Bagger (SN: 000001 & Above) Bagger Frame Parts Diagram

34" Bagger

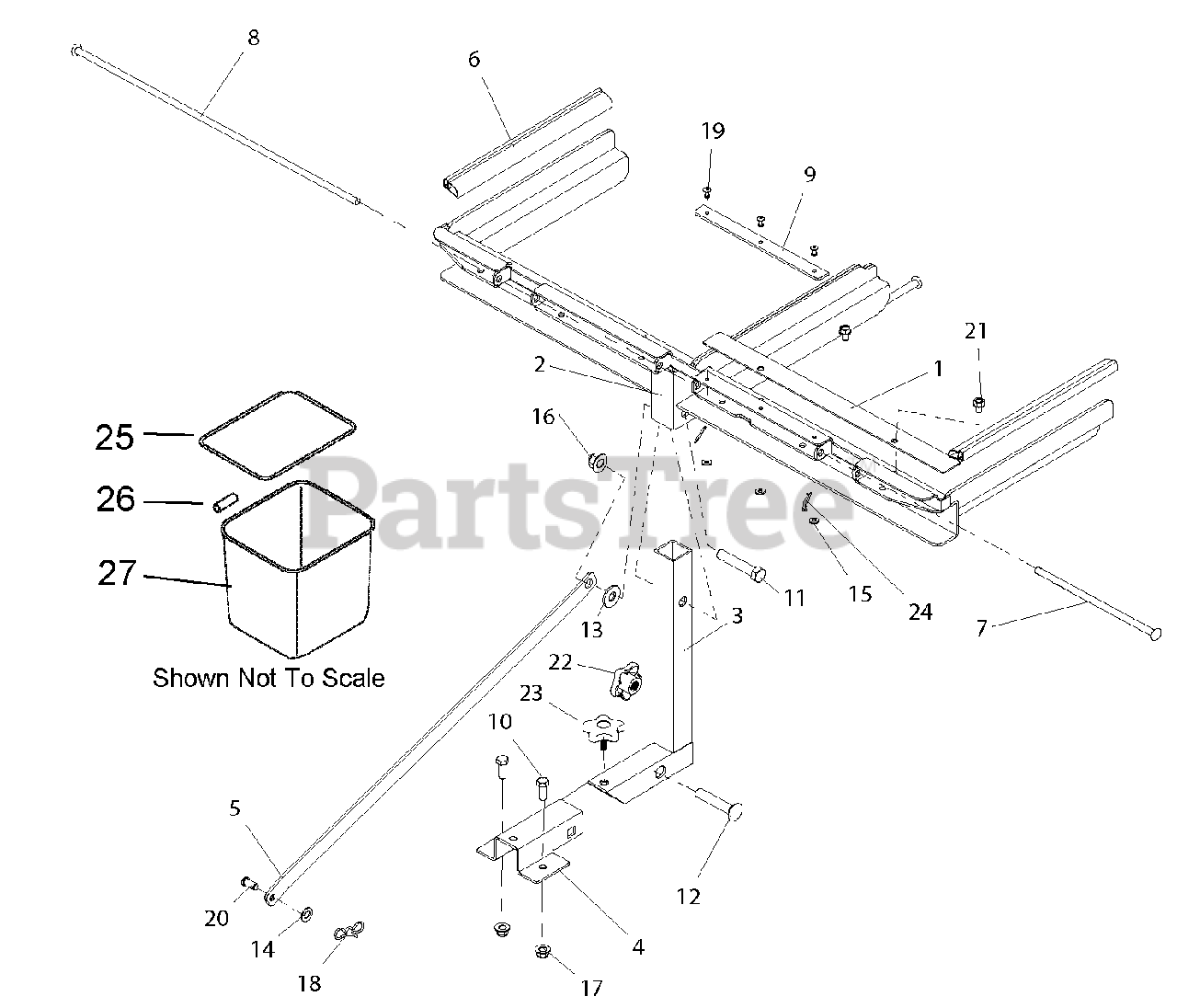

Bagger Frame Parts Diagram

  • Title
1

Ariens 03844151

BRKT-BAGGER OVERLAP

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 04409551

ASS'Y, BAGGER FRAME UPPER

$220.99

$

Usually ships in 4-12 days

0

3

Ariens 04409751

BRKT, RECEIVER SLEEVE INSERT

$41.99

$

In Stock, only 2 left!

0

4

Ariens 04409851

BRKT, RECEIVER LOWER

$34.99

$

In Stock, only 1 left!

0

5

Ariens 04410551

BRKT, BAG FRAME SUPPORT BAR

$30.99

$

Usually ships in 4-12 days

0

6

Ariens 04439500

SEAL, BULK

$12.99

$

In Stock, only 2 left!

0

7

Ariens 04443400

PIN, BAGGER HINGE (L)

Note: (L)

$7.49

$

Usually ships in 4-12 days

0

8

Ariens 04443500

PIN, BAGGER HINGE (R)

Note: (R)

$7.99

$

Usually ships in 4-12 days

0

9

Ariens 04446700

SEAL, HINGE

$

$

Not available

10

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06225700

BLT-RDHDSQNK .50-13X2.75 G5YZ
(Superseded to 06200327)

$9.49

$

Usually ships in 4-12 days

0

13

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

19

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06814800

PIN-CLEV .38X.75 YWZC

$3.99

$

In Stock, only 4 left!

0

21

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07500225

KNOB, WING

$21.99

$

Usually ships in 4-12 days

0

23

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 2 left!

0

24

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 00663200

FRAME, ZOOM BAG

$40.99

$

Usually ships in 4-12 days

0

26

Ariens 00677000

HOSE, .38 X.50 X 3.00 VINYL

$

$

Not available

27

Ariens 03862900

BAG, MESH ZOOM

$56.99

$

In Stock, only 2 left!

0
