815036 - Ariens Zoom and ZT Bagger (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

Zoom and ZT Bagger

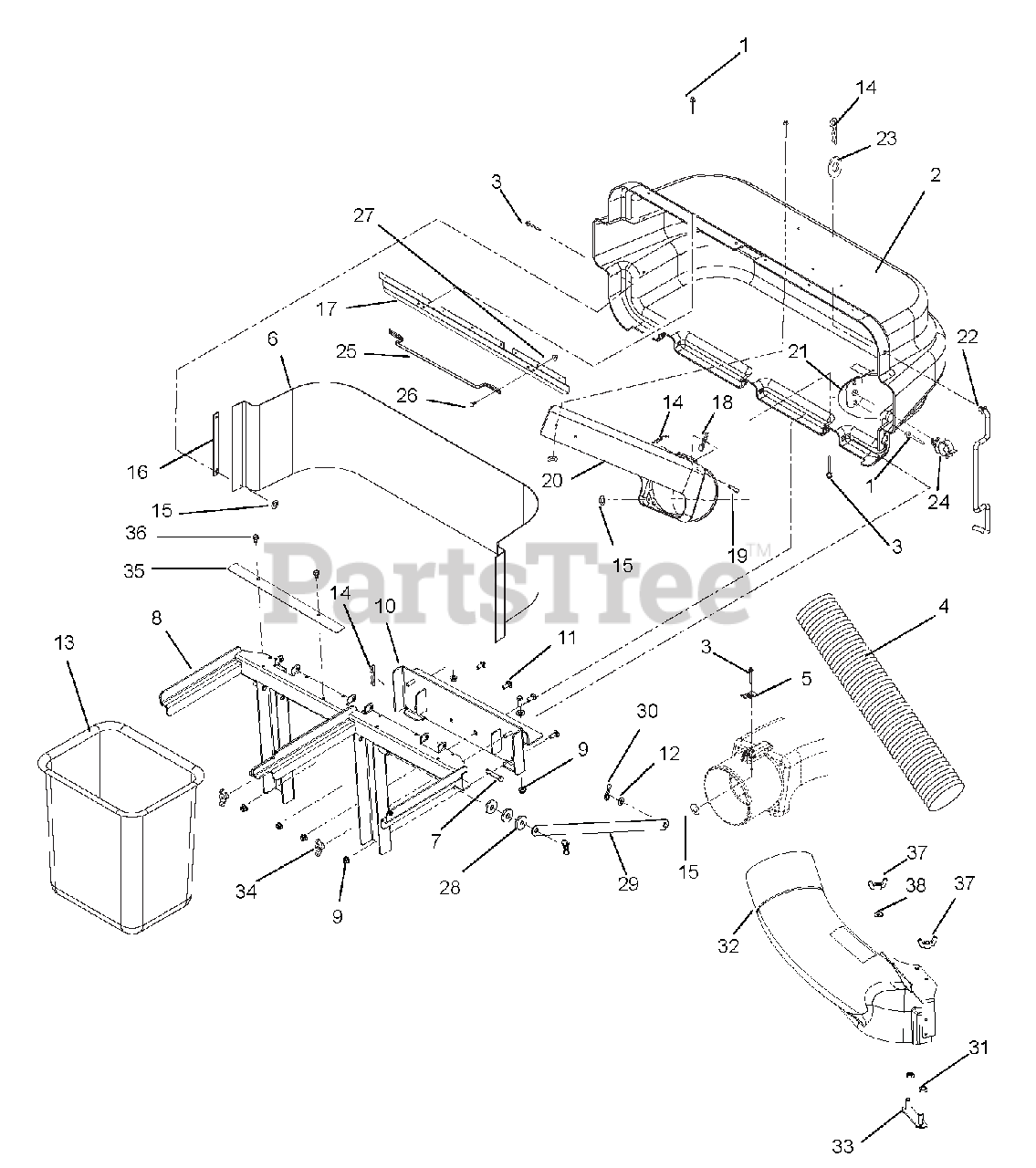

Blower Housing Assembly Parts Diagram

  • Title

1

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

2

Ariens 51513500

BAGGER COVER W/DECAL

$475.99

$

Usually ships in 4-12 days

0

3

Ariens 06807600

RVT-POP .187X.375

$

$

Not available

4

Ariens 04222900

HOSE, FLEXIBLE-47"

$129.99

$

In Stock, Qty 10

0

5

Ariens 07000026

THUMB LATCH

$9.49

$

In Stock, only 2 left!

0

6

Ariens 00166900

SCREEN, BAGGER

$

$

Not available

7

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

8

Ariens 03788251

WMT, BAGGER FRAME

$

$

Not available

9

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03788351

WMT, MOUNTING PLATE

$100.99

$

Usually ships in 4-12 days

0

11

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

12

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03862900

BAG, MESH ZOOM

$56.99

$

In Stock, only 2 left!

0

14

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 00377051

STRAP,COVER

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 00453151

LATCH, BAGGER (MZ)

$

$

Not available

18

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

19

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 00376800

BOOT,UPPER

$82.99

$

Usually ships in 4-12 days

0

21

Ariens 00294400

PLATE, ROD CLIP

$13.99

$

In Stock, only 1 left!

0

22

Ariens 00376900

PROP-ROD,BAGGER

$47.99

$

Usually ships in 4-12 days

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 07534100

CLIP-.38

$9.49

$

Usually ships in 4-12 days

0

25

Ariens 00453000

BAGGER HANDLE

$40.99

$

Usually ships in 4-12 days

0

26

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, Qty 6

0

29

Ariens 06700201

PIN,BOW TIE LOCKING .091X1.875
(Superseded to 06700220)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 03827551

WMT-STRAP, BAGGER

$37.99

$

Usually ships in 4-12 days

0

31

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

32

Ariens 61568500

ASM, BAGGER BOOT

$

$

Not available

33

Ariens 04088800

WMT-BOOT MOUNT STRAP

$45.99

$

Usually ships in 4-12 days

0

34

Ariens 07019300

NUT-WING .38-16
(Superseded to 07500109)

$4.99

$

In Stock, only 1 left!

0

35

Ariens 03844100

BRKT-BAGGER OVERLAP

$

$

Not available

36

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06537100

NUT-NYLK WING .312-18 YWZC

$5.99

$

In Stock, only 1 left!

0

38

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
