815034 - Gravely XL Series Snow Thrower (SN: 000101 & Above) Snow Chute and Chute Crank Parts Diagram

XL Series Snow Thrower

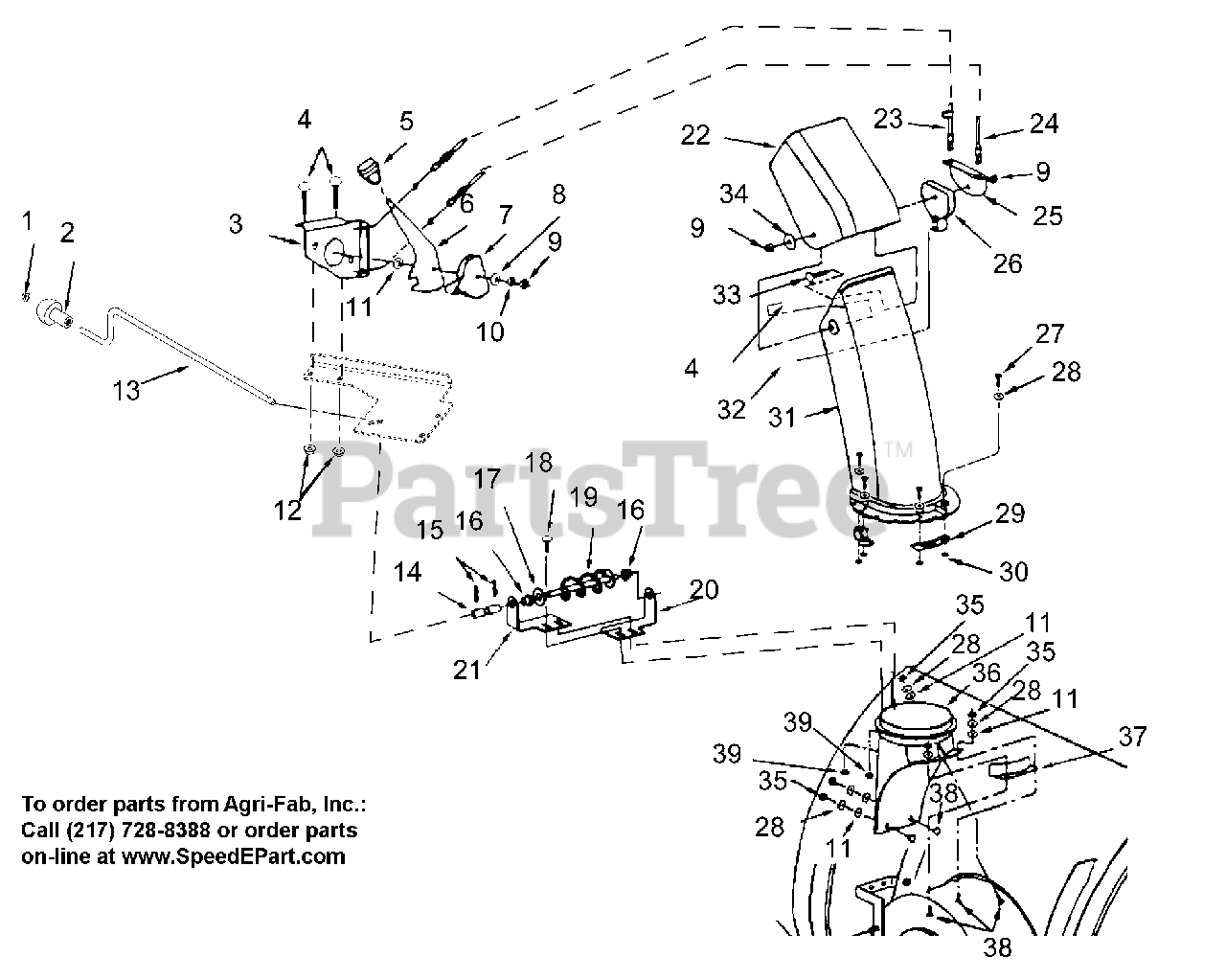

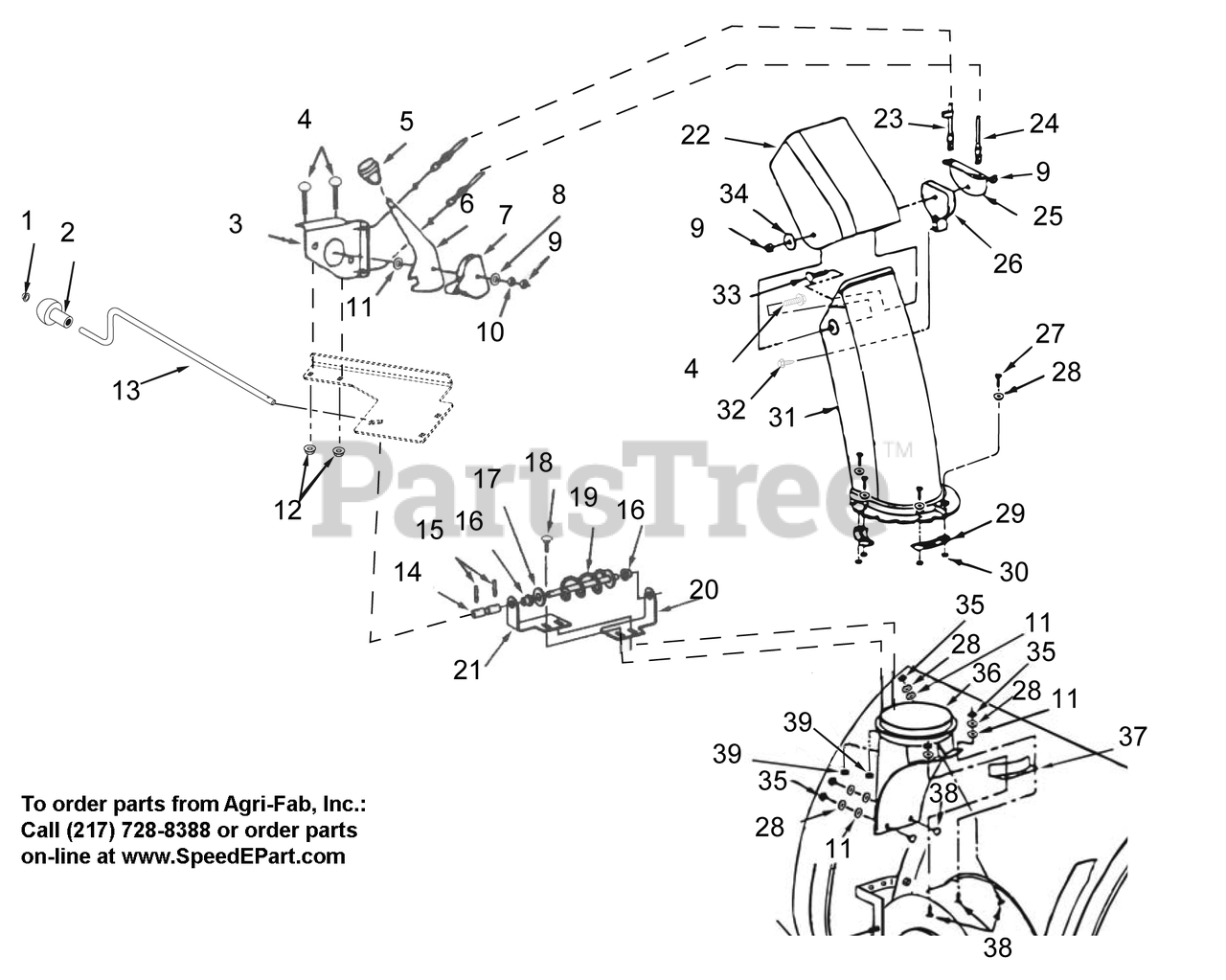

Snow Chute and Chute Crank Parts Diagram

  • Title

1

Gravely 01019800

Cap, .38 Rod

Note: Agri-Fab p/n NA

$2.99

$

In Stock, Qty 15

0

2

Gravely 07508300

Knob

Note: Agri-Fab p/n NA

$13.99

$

In Stock, Qty 7

0

3

NA

Assembly, Chute Tilt Bracket

Note: Agri-Fab p/n 603-0302

$

$

Not available

4

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

Note: NA

$2.49

$

In Stock, Qty 20+

0

5

NA

Knob

Note: Agri-Fab p/n 720-0232

$

$

Not available

6

NA

Handle, Chute Tilt

Note: Agri-Fab p/n 784-5604

$

$

Not available

7

NA

Guide, Cable

Note: Agri-Fab p/n 731-1313C

$

$

Not available

8

Gravely 06437200

Washer, 5/16
(Superseded to 06401017)

Note: Agri-Fab p/n 43081

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06529800

Nut, Hex Lock 5-16-18
(Superseded to 06500826)

Note: Agri-Fab p/n 43064

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

Note: NA

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06433600

Washer, Flat Nylon .375 x .75 x .060

Note: NA

$0.99

$

In Stock, Qty 11

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: NA

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03247700

Crank, Chute

Note: NA

$36.99

$

Usually ships in 4-12 days

0

14

Gravely 02470400

U-Joint

Note: Agri-Fab p/n 784-5149

$129.99

$

Usually ships in 4-12 days

0

15

Gravely 06714500

Pin, Spring Clip

Note: Agri-Fab p/n 43850

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05500006

Plastic Bushing, 3/8

Note: Agri-Fab p/n 741-0475

$

$

Not available

17

Gravely 06436200

Flat Washer, 3/8
(Superseded to 06401013)

Note: Agri-Fab p/n 43070

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06216100

Carriage Bolt, 5/16-18 x 1
(Superseded to 06200231)

Note: Agri-Fab p/n 43079

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00266700

Chute Crank Assembly

Note: Agri-Fab p/n 684-0061

$

$

Not available

20

Gravely 00266900

Chute Crank Bracket, Front

Note: Agri-Fab p/n 24299

$

$

Not available

21

Gravely 00266800

Chute Crank Bracket, Rear

Note: Agri-Fab p/n 24300

$

$

Not available

22

NA

Chute, Upper

Note: Agri-Fab p/n 731-1320

$

$

Not available

23

NA

Cable, Chute Control with Clip

Note: Agri-Fab p/n 746-0929

$

$

Not available

24

NA

Cable, Chute Control

Note: Agri-Fab p/n 746-0928

$

$

Not available

25

NA

Bracket, Cable

Note: Agri-Fab p/n 784-5594

$

$

Not available

26

NA

Guide, Cable

Note: Agri-Fab p/n 731-131C

$

$

Not available

27

Gravely 05947700

Hex Bolt, 1/4-20 x 1
(Superseded to 05901639)

Note: Agri-Fab p/n 43661

$1.49

$

In Stock, Qty 9

0

28

Gravely 06437300

Washer, 1/4
(Superseded to 06401001)

Note: Agri-Fab p/n 43088

$0.99

$

In Stock, Qty 20+

0

29

NA

Chute Keeper

Note: Agri-Fab p/n 731-0851A

$

$

Not available

30

Gravely 06529700

Hex Lock Nut, 1/4
(Superseded to 06500812)

Note: Agri-Fab p/n 47598

$0.99

$

In Stock, Qty 20+

0

31

NA

Chute, Lower

Note: Agri-Fab p/n 731-1300A

$

$

Not available

32

Gravely 06118000

Screw, Machine .25-20 x .75 Hex Washer Head
(Superseded to 05901824)

Note: NA

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06212100

Carriage Bolt, 5/16-18 x 1-1/2
(Superseded to 06200233)

Note: Agri-Fab p/n 43681

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06437200

Washer, 5/16
(Superseded to 06401017)

Note: Agri-Fab p/n 43081

$0.99

$

In Stock, Qty 20+

0

35

Gravely 06529700

Hex Lock Nut 1/4-20
(Superseded to 06500812)

Note: Agri-Fab p/n 43013

$0.99

$

In Stock, Qty 20+

0

36

NA

Chute Adapter

Note: Agri-Fab p/n 731-1379A

$

$

Not available

37

NA

Chute Reinforcement

Note: Agri-Fab p/n 705-5226

$

$

Not available

38

Gravely 06219900

Carriage Bolt, 1/4-20 x 3/4
(Superseded to 06200307)

Note: Agri-Fab p/n 44950

$0.99

$

In Stock, Qty 20+

0

39

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: NA

$1.49

$

In Stock, Qty 20+

0
