815034 - Ariens XL Series Snow Thrower Attachment (SN: 000101 & Above) Snow Thrower and Auger Parts Diagram

XL Series Snow Thrower Attachment

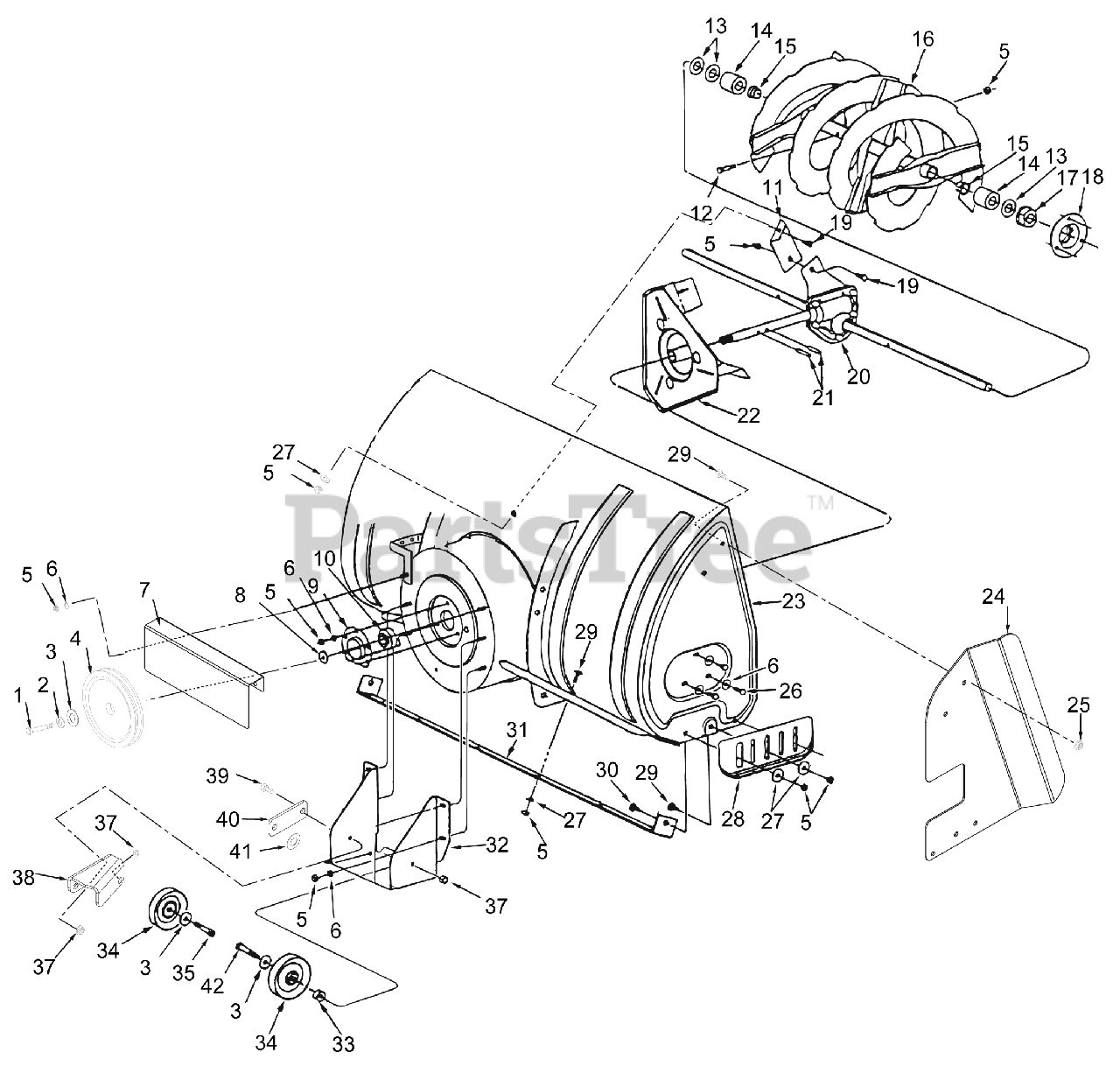

Snow Thrower and Auger Parts Diagram

  • Title

1

Ariens 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

In Stock, only 1 left!

0

2

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

4

Pulley, V-Type

$

$

Not available

5

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00265251

GUARD,FINGER

$

$

Not available

8

Bushing

$

$

Not available

9

Housing, Bearing

$

$

Not available

10

Bearing, Ball

$

$

Not available

11

Bracket, Housing Brace

$

$

Not available

12

Bolt, Shear 5/16-18 x 1-1/2

$

$

Not available

13

Washer, .76 x 1.49 x .06

$

$

Not available

14

Spacer, .75 ID x 1.25 OD x .51

$

$

Not available

15

Bearing, Split, 3/4

$

$

Not available

16

Spiral Assembly, R.H.

$

$

Not available

Spiral Assembly, L. H.

$

$

Not available

17

Bearing Flange

$

$

Not available

18

Housing, Bearing

$

$

Not available

19

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Gear Assembly

$

$

Not available

21

Spiral Pin, 1/4 x 1-1/2"

$

$

Not available

22

Impeller Assembly

$

$

Not available

23

Housing Assembly

$

$

Not available

24

Ariens 00266651

DRIFT-CUTTER RH

$

$

Not available

Ariens 00266551

DRIFT-CUTTER LH

$

$

Not available

25

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 12

0

27

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Skid Shoe

$

$

Not available

29

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

30

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

31

Scraper Plate

$

$

Not available

32

Bracket, Idler

$

$

Not available

33

Ariens 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

Ariens 043922

BSHG-SLV .391X.688X.52 PM
(Superseded to 08553700)

Note: (Gravely Part Number)

$5.99

$

In Stock, only 1 left!

0

34

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

35

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

36

Spacer

$

$

Not available

37

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 00271951

BKT,IDLER SHEAVE

$

$

Not available

39

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00264551

PLATE,SHIM

$

$

Not available

41

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 7

0

42

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0
