815034 - Ariens XL Series Snow Thrower Attachment (SN: 000101 & Above) Snow Chute and Chute Crank Parts Diagram

XL Series Snow Thrower Attachment

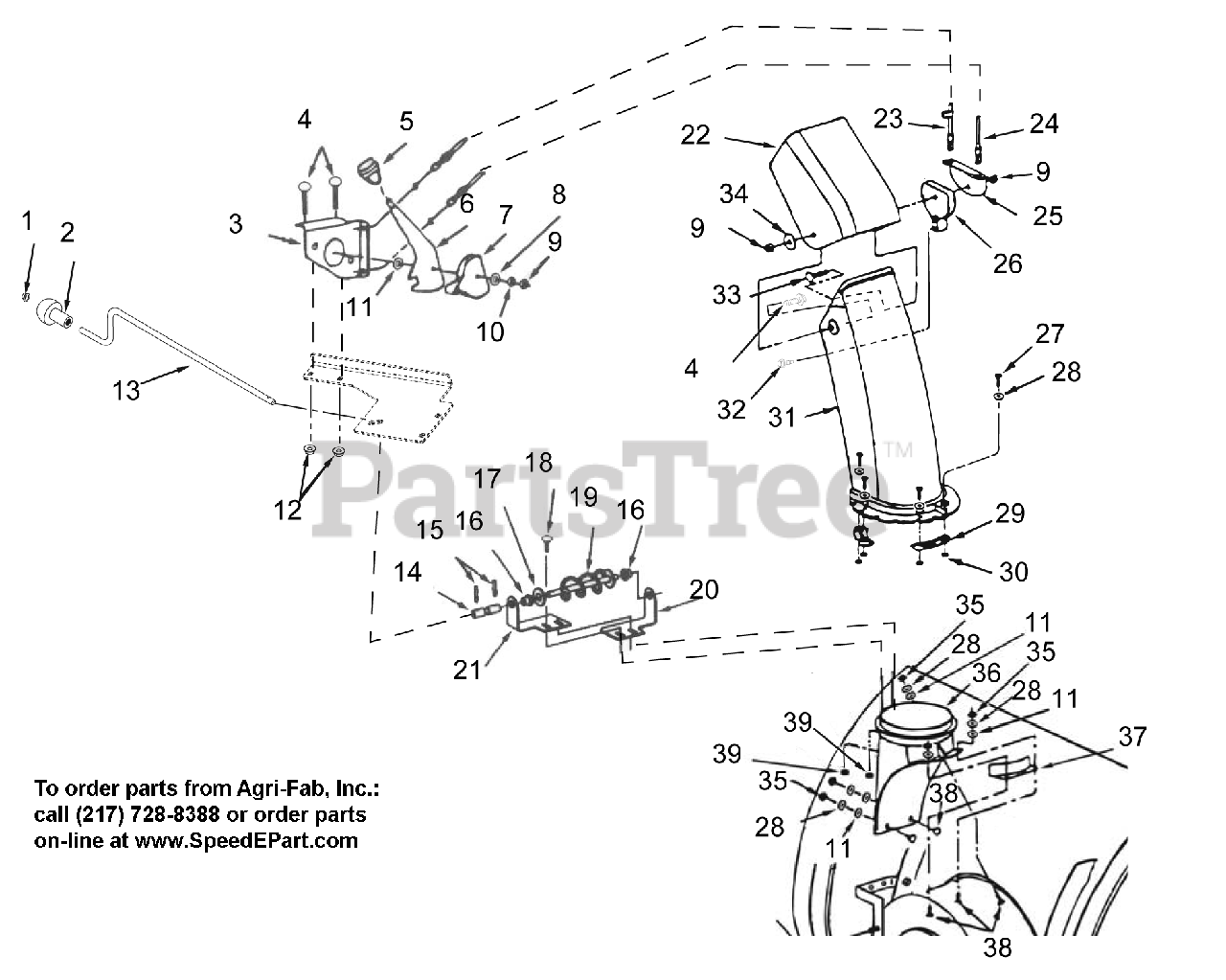

Snow Chute and Chute Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: Agri-Fab p/n NA

$2.99

$

In Stock, Qty 15

0

2

Ariens 07508300

KNOB

Note: Agri-Fab p/n NA

$13.99

$

In Stock, Qty 7

0

3

Assembly, Chute Tilt Bracket

Note: Agri-Fab p/n 603-0302

$

$

Not available

4

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

Note: NA

$2.49

$

In Stock, Qty 20+

0

5

Knob

Note: Agri-Fab p/n 720-0232

$

$

Not available

6

Handle, Chute Tilt

Note: Agri-Fab p/n 784-5604

$

$

Not available

7

Guide, Cable

Note: Agri-Fab p/n 731-1313C

$

$

Not available

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: Agri-Fab p/n 43081

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: Agri-Fab p/n 43064

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: NA

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06433600

WSHR-FL-NY .375X.75X.060

Note: NA

$0.99

$

In Stock, Qty 11

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: NA

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03247700

CRANK, CHUTE

Note: NA

$36.99

$

Usually ships in 4-12 days

0

14

Ariens 02470400

UNIVERSAL JOINT ASS'Y

Note: Agri-Fab p/n 784-5149

$129.99

$

Usually ships in 4-12 days

0

15

Ariens 06714500

PIN, SPRING CLIP

Note: Agri-Fab p/n 43850

$2.49

$

In Stock, Qty 20+

0

16

Ariens 05500006

BUSHING,3/8" (AGRI-FAB)

Note: Agri-Fab p/n 741-0475

$

$

Not available

17

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: Agri-Fab p/n 43070

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

Note: Agri-Fab p/n 43079

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00266700

WORM,CHUTE CRANK

Note: Agri-Fab p/n 684-0061

$

$

Not available

20

Ariens 00266900

BKT,CHUTE CRANK FRONT

Note: Agri-Fab p/n 24299

$

$

Not available

21

Ariens 00266800

BKT,CHUTE CRANK REAR

Note: Agri-Fab p/n 24300

$

$

Not available

22

Chute, Upper

Note: Agri-Fab p/n 731-1320

$

$

Not available

23

Cable, Chute Control with Clip

Note: Agri-Fab p/n 746-0929

$

$

Not available

24

Cable, Chute Control

Note: Agri-Fab p/n 746-0928

$

$

Not available

25

Bracket, Cable

Note: Agri-Fab p/n 784-5594

$

$

Not available

26

Guide, Cable

Note: Agri-Fab p/n 731-131C

$

$

Not available

27

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

Note: Agri-Fab p/n 43661

$1.49

$

In Stock, Qty 9

0

28

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: Agri-Fab p/n 43088

$0.99

$

In Stock, Qty 20+

0

29

Chute Keeper

Note: Agri-Fab p/n 731-0851A

$

$

Not available

30

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: Agri-Fab p/n 47598

$0.99

$

In Stock, Qty 20+

0

31

Chute, Lower

Note: Agri-Fab p/n 731-1300A

$

$

Not available

32

Ariens 06118000

@SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

Note: NA

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

Note: Agri-Fab p/n 43681

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: Agri-Fab p/n 43081

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: Agri-Fab p/n 43013

$0.99

$

In Stock, Qty 20+

0

36

Chute Adapter

Note: Agri-Fab p/n 731-1379A

$

$

Not available

37

Chute Reinforcement

Note: Agri-Fab p/n 705-5226

$

$

Not available

38

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: Agri-Fab p/n 44950

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: NA

$1.49

$

In Stock, Qty 20+

0
