815034 - Ariens XL Series Snow Thrower Attachment (SN: 000101 & Above) Reduction Drive Assembly Parts Diagram

XL Series Snow Thrower Attachment

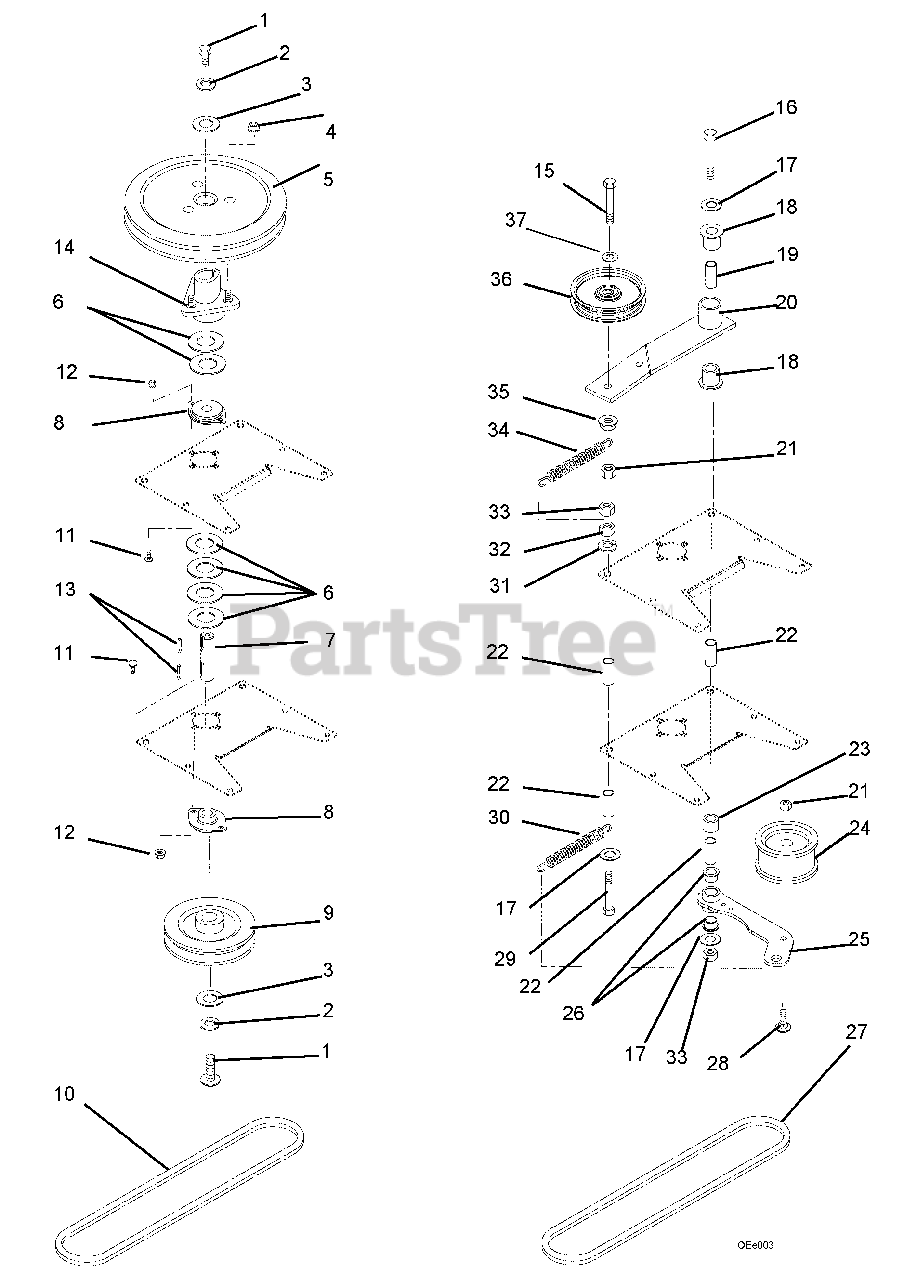

Reduction Drive Assembly Parts Diagram

  • Title

1

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

4

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$51.99

$

In Stock, only 4 left!

0

6

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

7

Ariens 00269200

SHAFT,ZOOM SNO-THRO

$205.99

$

Usually ships in 4-12 days

0

8

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$45.99

$

In Stock, only 2 left!

0

9

Ariens 00169400

SHEAVE, BLOWER - 4.25 DIA.

$45.99

$

In Stock, only 1 left!

0

10

Ariens 07234400

V-BELT, HA-RAW EDGE

Note: (Engine clutch to snow thrower drive pulley.)

$96.99

$

In Stock, only 3 left!

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

14

Ariens 62422300

24389 HUB ASSEMBLY

$

$

Not available

15

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 05900002

BLT-HEX .50-13X7.00 GR5 YWZC
(Superseded to 05901917)

$7.99

$

In Stock, only 1 left!

0

17

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$4.99

$

In Stock, Qty 20+

0

19

Ariens 08815100

BUSH.,S.560X.745X2.04 ST

$21.99

$

In Stock, only 1 left!

0

20

Ariens 00269451

WMT,IDLER

$

$

Not available

21

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

23

Ariens 09215200

BUSHING, .516X1.000X1.050 LG

$34.99

$

Usually ships in 4-12 days

0

24

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

25

Ariens 00473500

WMT, IDLER ARM

$129.99

$

In Stock, only 1 left!

0

26

Ariens 05500039

BSHG-FLG 0.75X0.875X.625X1.125

$7.49

$

In Stock, only 2 left!

0

27

Ariens 07224300

V-BELT, HA-RAW EDGE

Note: (Auger drive belt.)

$42.99

$

In Stock, only 2 left!

0

28

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

30

Ariens 08300507

SPRING, EXTENSION
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

32

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

In Stock, only 3 left!

0

34

Ariens 08300512

SPRING, EXTENSION

$17.99

$

In Stock, Qty 20+

0

35

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 07300028

IDLER, FLG .38ID X 3.50

$39.99

$

In Stock, Qty 20+

0

37

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
