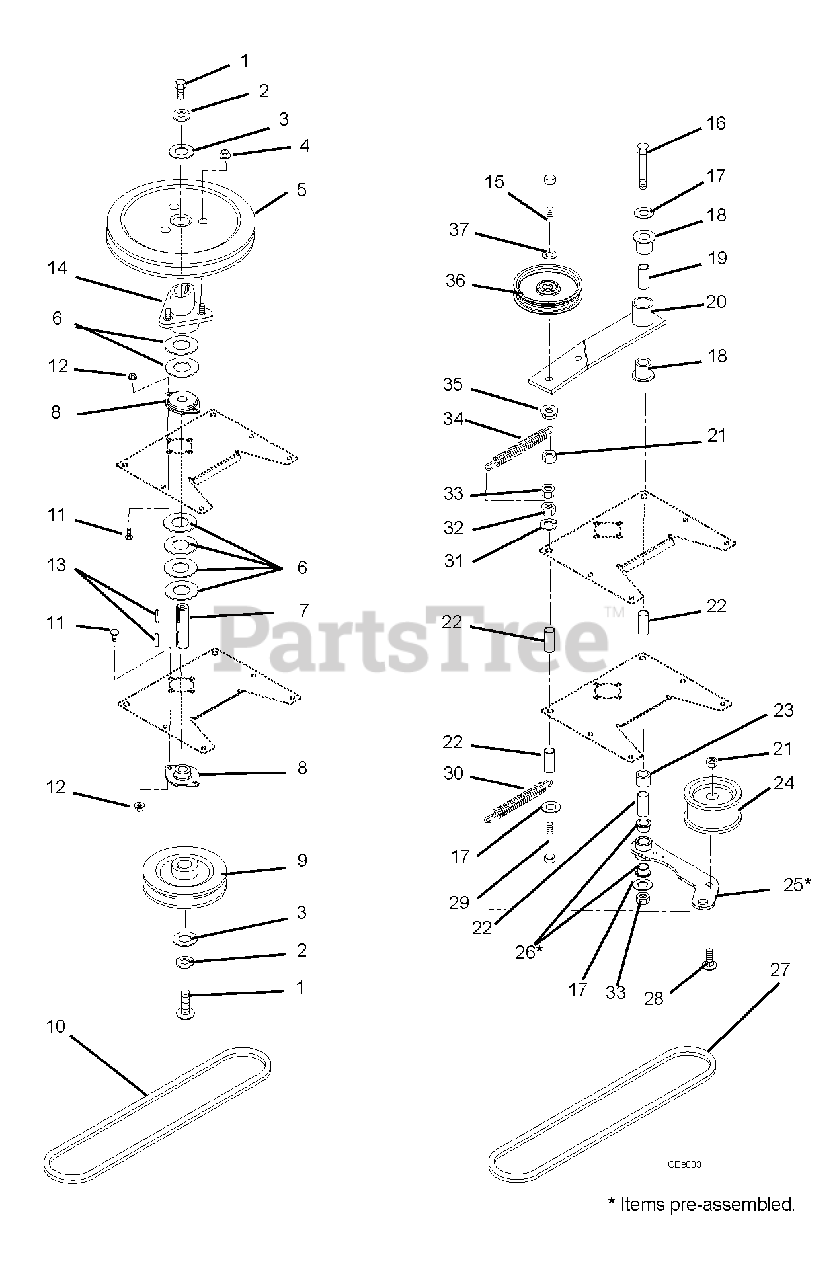

815030 - EverRide Snow Thrower (SN: 000101 & Above) Reduction Drive Assembly Parts Diagram

Snow Thrower

Reduction Drive Assembly Parts Diagram

  • Title

1

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 07307000

Pulley, V 9.0 x 1.25

$51.99

$

In Stock, only 4 left!

0

6

Gravely 06444200

Washer, Flat Steel .755 x 1.25 x .125
(Superseded to 06441500)

$3.99

$

In Stock, Qty 13

0

7

Gravely 00269200

Shaft, Zoom Snow Throw

$205.99

$

Usually ships in 4-12 days

0

8

Gravely 03685300

Bearing, 2 Bolt Flange-.75 ID

$45.99

$

In Stock, only 2 left!

0

9

Gravely 00169400

Sheave, Blower- 4.25 Diameter

$45.99

$

In Stock, only 1 left!

0

10

Gravely 07216500

V-Belt 4L-Section 56.45 x .516

$44.99

$

In Stock, only 1 left!

0

11

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06606000

Key Square .187 x .50 x .187 Hardened

$10.99

$

In Stock, only 1 left!

0

14

Gravely 62422300

Hub Assembly

$

$

Not available

15

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 05900002

Bolt, Hex .50-13 x 7.00
(Superseded to 05901917)

$7.99

$

In Stock, only 1 left!

0

17

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05518400

Bushing, Nylon, Flange .762 x 1.0 x .580 x 1.48

$4.99

$

In Stock, Qty 20+

0

19

Gravely 08815100

Bushing, Steel .560 x .745 x 2.04 Steel

$21.99

$

In Stock, only 1 left!

0

20

Gravely 00269451

Weldment, Idler

$

$

Not available

21

Gravely 06537200

Nut, Locking-Jam-Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05516400

Bushing-Sleeve .500 x .750 x 1.560

$5.99

$

In Stock, only 3 left!

0

23

Gravely 09215200

Bushing, .516 x 1.0 x 1.05

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

25

Gravely 00473500

Weldment, Idler

$129.99

$

In Stock, only 1 left!

0

26

Gravely 05500039

Bushing, Flanged 0.75 x 0.875 x .625 x 1.125

$7.49

$

In Stock, only 2 left!

0

27

Gravely 07200002

V-Belt, 112.3

$74.99

$

In Stock, only 1 left!

0

28

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

29

Gravely 05962200

Bolt, Hex .50-13 x 1.50 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

31

Gravely 06307300

Washer, Locking .50 x .125
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

32

Gravely 06537300

Nut, Hex .50-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

33

Gravely 06519700

Nut, Locking Center Jam .500-13

$2.49

$

In Stock, only 3 left!

0

34

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

35

Gravely 06534900

Nut, Locking Jam Center .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 07327100

Pulley, Idler 4.00

$37.99

$

In Stock, Qty 16

0

37

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
