815022 - Gravely XL Series 3-Bag Bagger (SN: 000101 - 029999) Blower Assembly To Mower Deck - 42" Deck Parts Diagram

XL Series 3-Bag Bagger

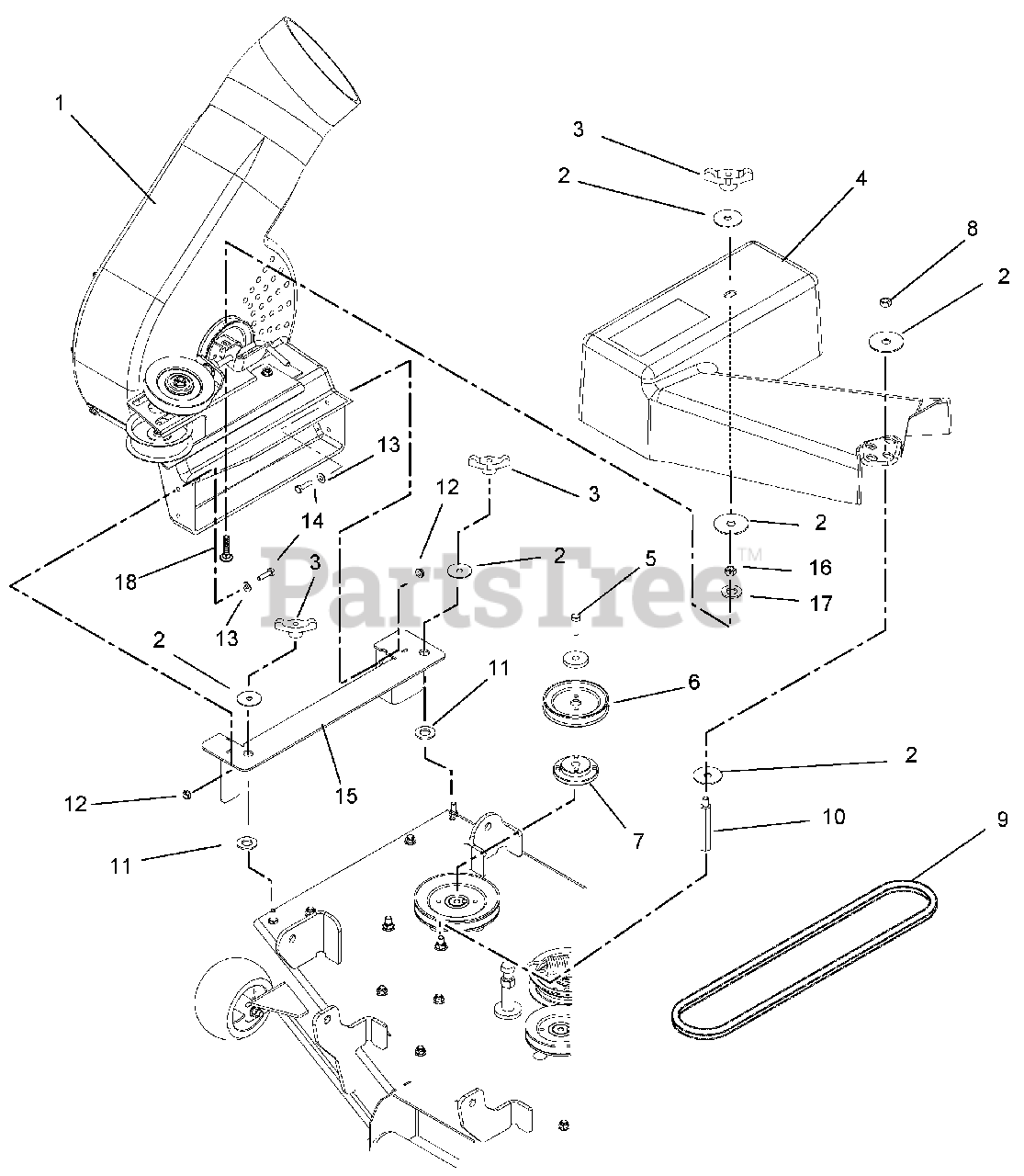

Blower Assembly To Mower Deck - 42" Deck Parts Diagram

  • Title

1

Gravely 51514700

Housing, Blower

$853.99

$

Usually ships in 4-12 days

0

2

Gravely 06439300

Washer, Flat, Steel.38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 01974800

Belt Cover, 42-Inch Decks

$175.99

$

Usually ships in 4-12 days

0

5

Gravely 05980600

Bolt, Hex .38-16 x 1.75 – Grade 8

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 00169600

Sheave, 4.00 Diameter

$20.99

$

In Stock, only 1 left!

0

7

Gravely 00169800

Assembly, Sheave Adapter

$143.99

$

In Stock, only 2 left!

0

7

Gravely 04148200

Assembly, Sheave Adapter

$103.99

$

Usually ships in 4-12 days

0

8

Gravely 06529800

Nut, Locking, Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07212800

V-Belt, HA Wrapped

$39.99

$

In Stock, only 1 left!

0

10

Gravely 00271200

Standoff, 2.75 x 5/16-18

$34.99

$

In Stock, only 2 left!

0

11

Gravely 06430300

Washer, Flat, Steel .656 x 1.25 x .10

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06500012

Nut, Locking-Top-Flange .25-20
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

13

Gravely 06437300

Washer, Flat, Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

15

Gravely 03373251

Bracket, Blower Weldment

$72.99

$

In Stock, only 1 left!

0

16

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06435800

Washer, Flat Steel, .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06212100

Bolt, Round Head Square Neck, .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0
