815022 - Gravely XL Series 3-Bag Bagger (SN: 000101 - 029999) Blower Assembly Parts Diagram

XL Series 3-Bag Bagger

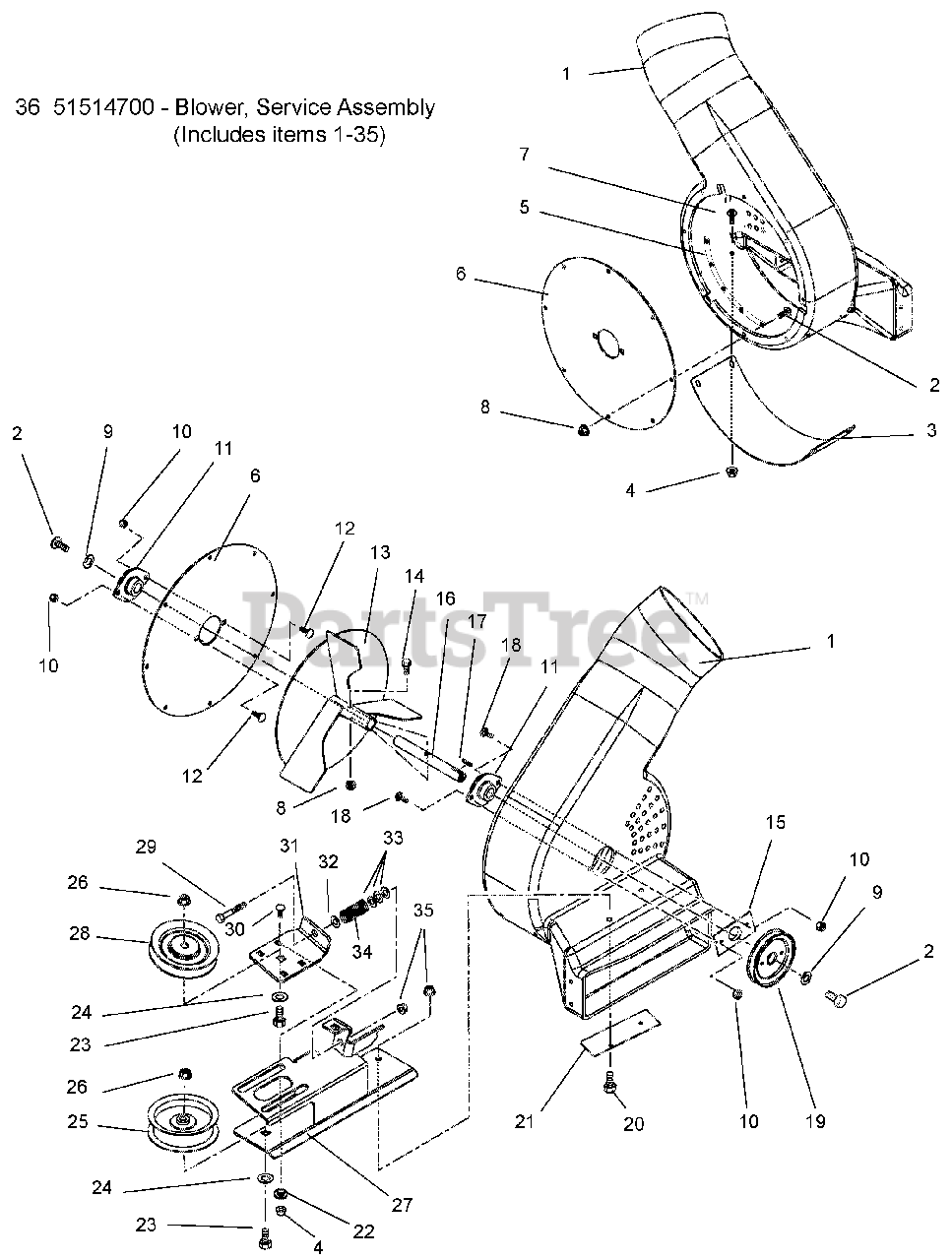

Blower Assembly Parts Diagram

  • Title

1

Gravely 51514700

Housing, Blower

$853.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 00169951

Plate, Skid

$

$

Not available

4

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 03720951

Plate, Mounting Bolt Reinforcing

$28.99

$

Usually ships in 4-12 days

0

6

Gravely 00168051

Plate, Bearing Mount

$86.99

$

Usually ships in 4-12 days

0

7

Gravely 06114400

Screw, Machine .25-20 x .75

$0.99

$

In Stock, Qty 10

0

8

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

9

Gravely 06446300

Washer, Flat-Steel .344 x 1.125 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 06530200

Nut, Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 03685300

Bearing, 2 Bolt Flange - .75 ID

$45.99

$

In Stock, only 2 left!

0

12

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00170000

Weldment, Impeller, 3 Blade

$139.99

$

In Stock, only 1 left!

0

14

Gravely 05952500

Bolt, Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 03721051

Plate, Washer Bearing

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 00168700

Shaft, Impeller

$105.99

$

In Stock, only 3 left!

0

17

Gravely 06606000

Key, Square .187 x .50 x .187 Hardened

$10.99

$

In Stock, only 1 left!

0

18

Gravely 06209500

Bolt, Round Head Square Neck .31-18 x .88 Grade 5

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 00169400

Sheave, Blower 4.25 Diameter

$45.99

$

In Stock, only 1 left!

0

20

Gravely 05947800

Bolt, Hex .31-18 x .875 Grade 5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 00174400

Plate, Back
(Superseded to 00174451)

$19.99

$

Usually ships in 4-12 days

0

22

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

23

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

26

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 00168200

Weldment, Idler Mount

$165.99

$

Usually ships in 4-12 days

0

28

Gravely 07327600

V-Idler, 4.00 x .38

$38.99

$

In Stock, Qty 20+

0

29

Gravely 05963200

Bolt, Hex .31-18 x 4.00 Grade 5
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

31

Gravely 00168100

Bracket, Adjustable Idler

$

$

Not available

32

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06444000

Washer, Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 08312100

Spring, Compression .092 x .77 x 3.13

$11.99

$

In Stock, Qty 6

0

35

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 51514700

Blower, Service Assembly (includes items 1-35)

Note: (includes items 1-35)

$853.99

$

Usually ships in 4-12 days

0
