815022 - Ariens ZT XL And Zoom XL Bagger (SN: 000101 - 029999) Blower Assembly To Mower Deck - 48 & 54 Inch Decks Parts Diagram

ZT XL And Zoom XL Bagger

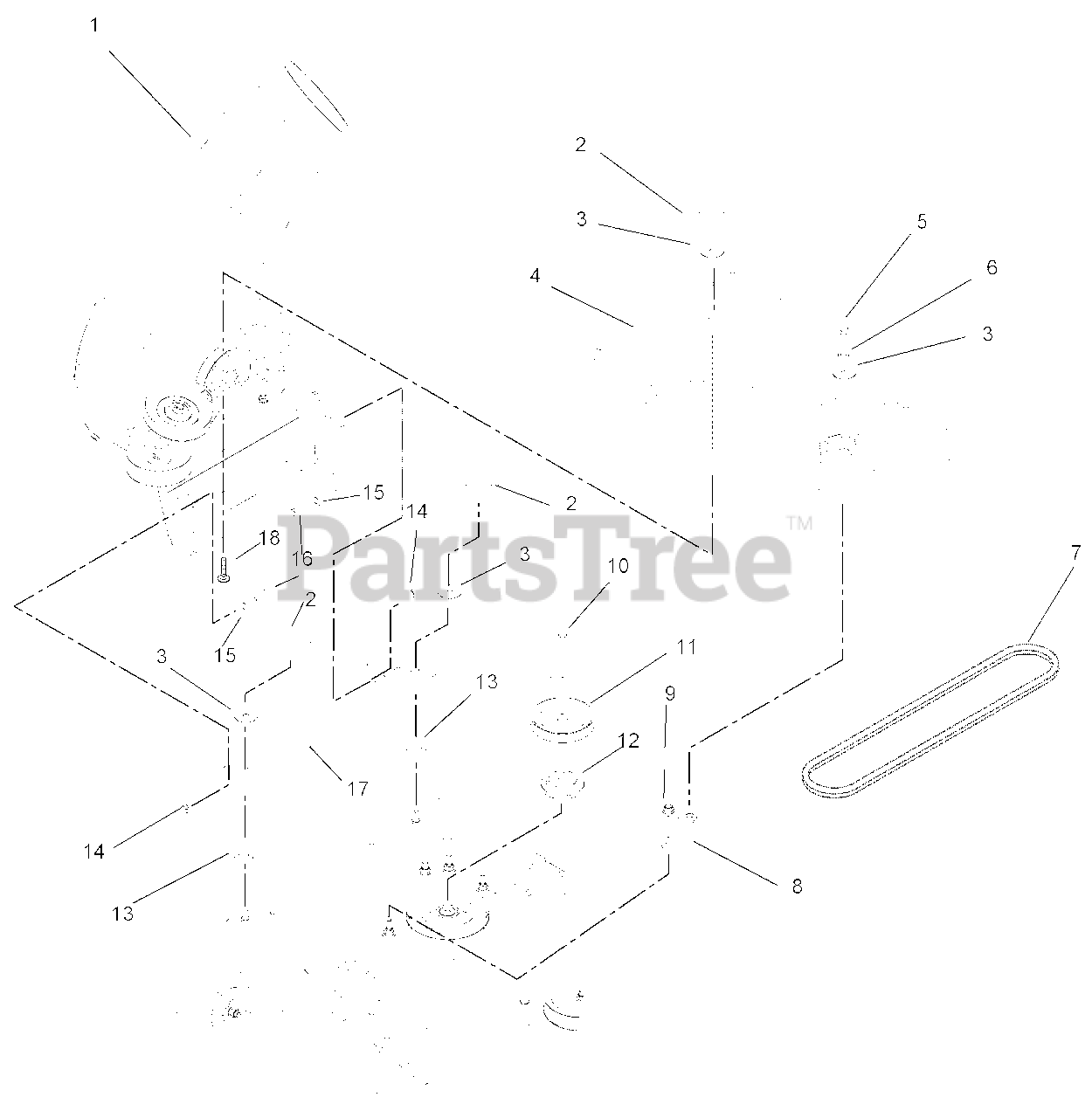

Blower Assembly To Mower Deck - 48 & 54 Inch Decks Parts Diagram

  • Title
1

Ariens 51514700

BLOWER (SERVICE ASSEMBLY)

$853.99

$

Usually ships in 4-12 days

0

2

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

3

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 51511600

BELT COVER W/DECAL

$165.99

$

Usually ships in 4-12 days

0

5

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07216300

V-BELT, 4L-RAW EDGE

Note: (48-Inch Decks)

$42.99

$

In Stock, only 4 left!

0

7

Ariens 07223700

V-BELT, HA-WRAPPED

Note: (54-Inch Decks)

$37.99

$

Usually ships in 4-12 days

0

8

Ariens 03375400

WMT, XL BLOWER COVER STANDOFF

$64.99

$

Usually ships in 4-12 days

0

9

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 00169600

SHEAVE, 4.00 DIA.

$20.99

$

In Stock, only 1 left!

0

12

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$143.99

$

In Stock, only 2 left!

0

12

Ariens 04148200

ASSEMBLY, SHEAVE ADAPTER

Note: (Not Shown)

$103.99

$

Usually ships in 4-12 days

0

13

Ariens 06430300

WSHR-FL-STL .656X1.250X.10 YZC

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

17

Ariens 03373251

WMT, BLOWER BRACKET

$72.99

$

In Stock, only 1 left!

0

18

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0
