815016 - Ariens Mini-Zoom Non-Powered Bagger (SN: 000101 & Above) Boot Assembly Parts Diagram

Mini-Zoom Non-Powered Bagger

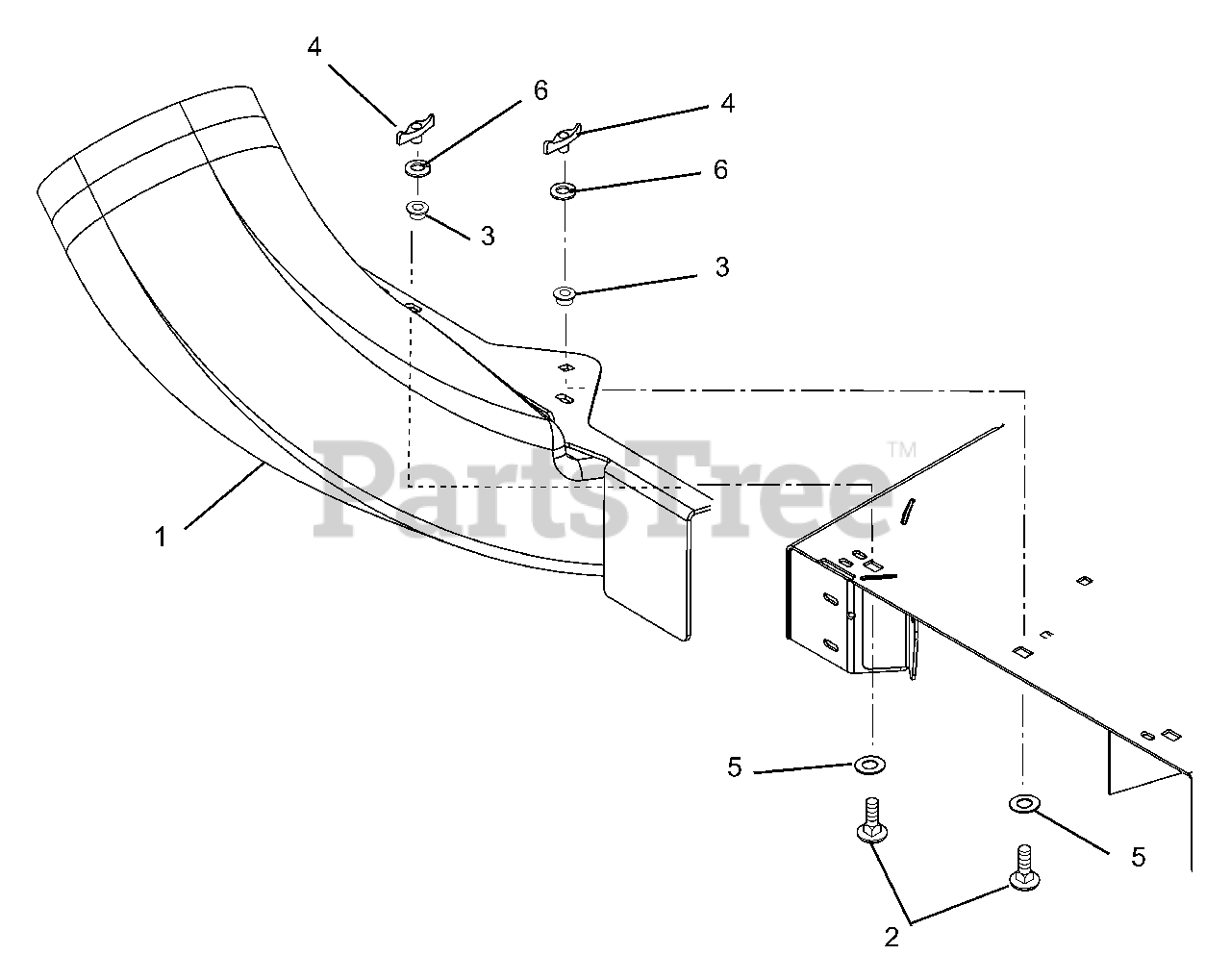

Boot Assembly Parts Diagram

  • Title
1

Ariens 51515400

ASSY, BAGGER BOOT

$

$

Not available

2

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

4

Ariens 07019300

NUT-WING .38-16
(Superseded to 07500109)

$4.99

$

In Stock, only 1 left!

0

5

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0
