815016 - Ariens Mini-Zoom Non-Powered Bagger (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

Mini-Zoom Non-Powered Bagger

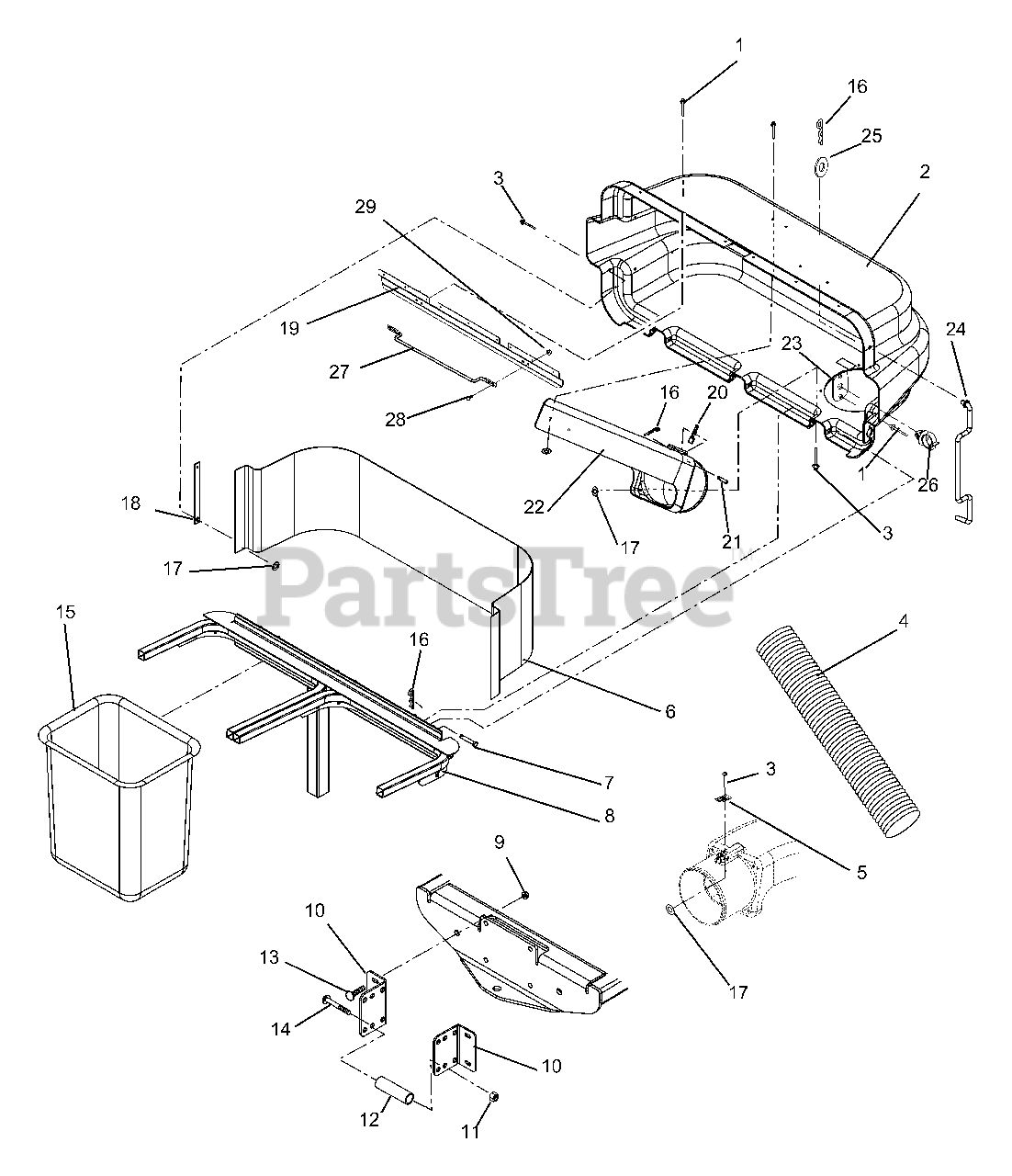

Bagger Cover Assembly Parts Diagram

  • Title
1

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

2

Ariens 51513500

BAGGER COVER W/DECAL

$475.99

$

Usually ships in 4-12 days

0

3

Ariens 06807600

RVT-POP .187X.375

$

$

Not available

4

Ariens 04222900

HOSE, FLEXIBLE-47"

$129.99

$

In Stock, Qty 10

0

5

Ariens 07000026

THUMB LATCH

$9.49

$

In Stock, only 2 left!

0

6

Ariens 00166900

SCREEN, BAGGER

$

$

Not available

7

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

8

Ariens 00279451

WMT,BAGGER FRAME

$

$

Not available

9

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 00200051

BKT,BAGGER MOUNT

$46.99

$

Usually ships in 4-12 days

0

11

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

13

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

15

Ariens 02724400

GRASS BAGGER BASKET

Note: (038328 - Gravely Part Number)

$79.99

$

Usually ships in 4-12 days

0

16

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 00377051

STRAP,COVER

$6.49

$

Usually ships in 4-12 days

0

19

Ariens 00453151

LATCH, BAGGER (MZ)

$

$

Not available

20

Ariens 00168300

INDICATOR, FLOW

$24.99

$

In Stock, only 1 left!

0

21

Ariens 06815300

PIN-CLEV .309 X 1.625 YWZC

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 00376800

BOOT,UPPER

$82.99

$

Usually ships in 4-12 days

0

23

Ariens 00294400

PLATE, ROD CLIP

$13.99

$

In Stock, only 1 left!

0

24

Ariens 00376900

PROP-ROD,BAGGER

$47.99

$

Usually ships in 4-12 days

0

25

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 07534100

CLIP-.38

$9.49

$

Usually ships in 4-12 days

0

27

Ariens 00453000

BAGGER HANDLE

$40.99

$

Usually ships in 4-12 days

0

28

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

29

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0
