815015 - Gravely ZT Three-Bucket Bagger (SN: 000101 & Above) Counterweight Assembly Parts Diagram

ZT Three-Bucket Bagger

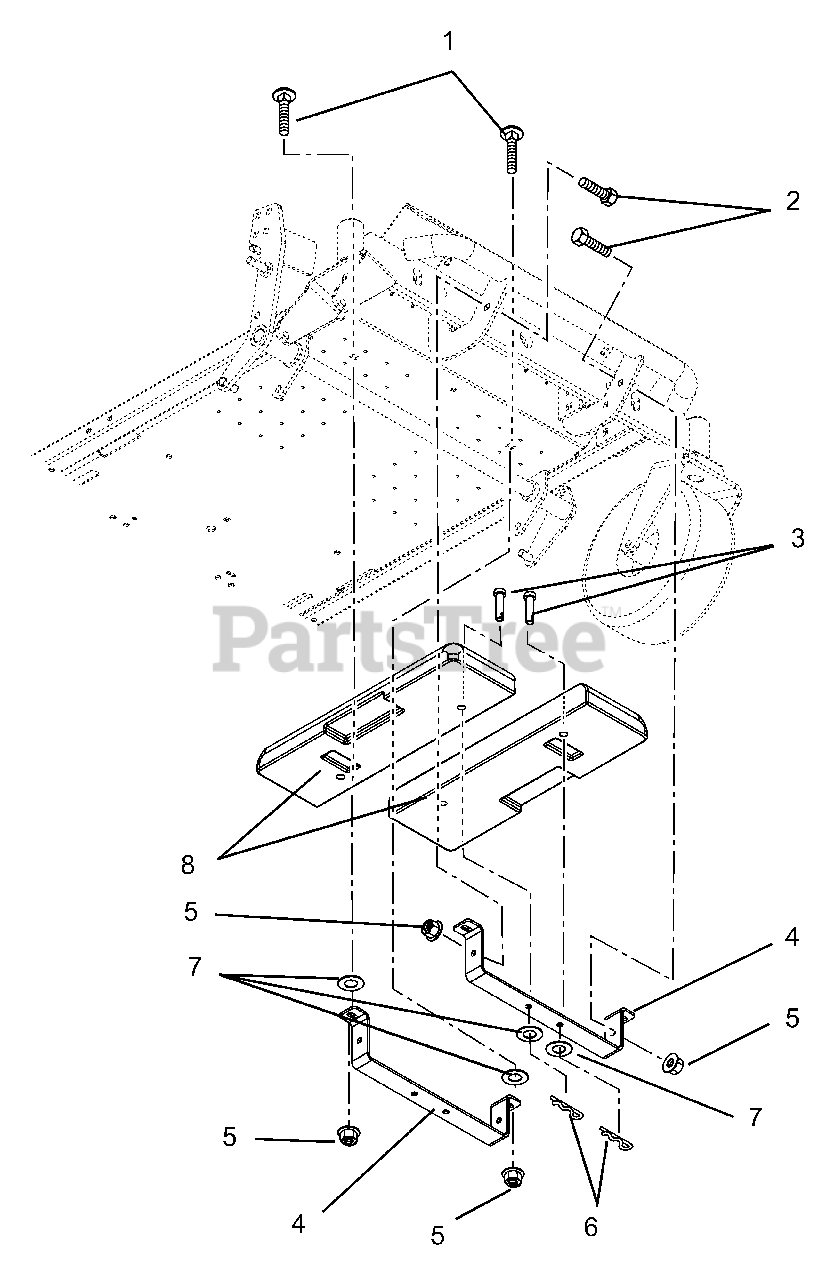

Counterweight Assembly Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

2

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06810700

Pin-Clevis .494 x 2.50

$3.99

$

In Stock, only 1 left!

0

3

Gravely 041754

Pin-Clevis .494 x 2.50
(Superseded to 06810700)

Note: (Gravely Part Number)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 01601851

Bracket, Weight

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06711900

Pin-Hair-External .12 x .31 x 2.37

$2.99

$

In Stock, only 2 left!

0

7

Gravely 06445000

Washer-Flat-Steel .515 x 1.625 x .250

$5.99

$

In Stock, only 3 left!

0

8

Gravely 00172000

Counterweight

$297.99

$

Usually ships in 4-12 days

0
