815014 - Gravely Mini ZT Bagger (SN: 000500 & Above) Blower Assembly To Mower Deck Parts Diagram

Mini ZT Bagger

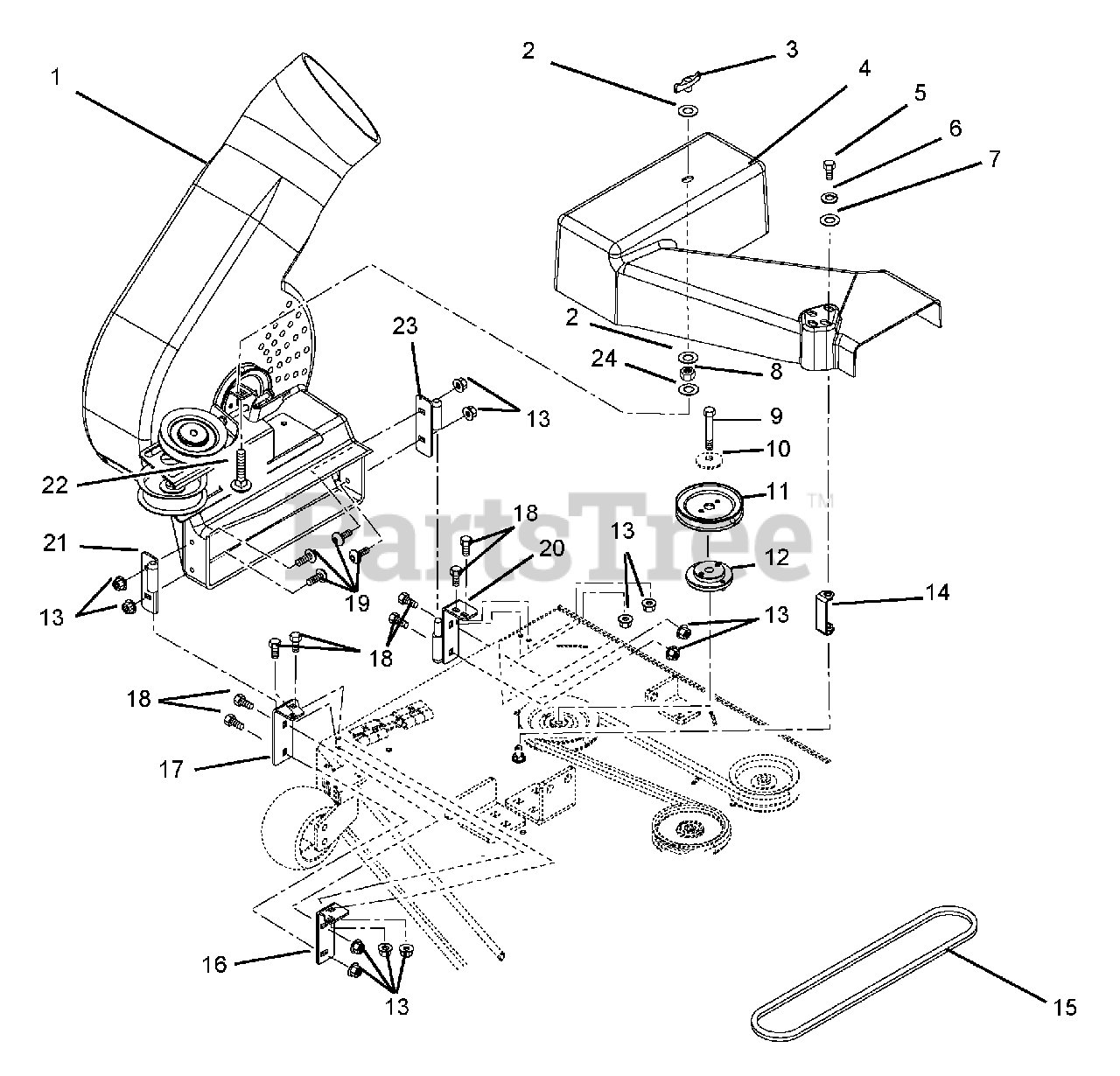

Blower Assembly To Mower Deck Parts Diagram

  • Title

1

Gravely 51511700

Housing, Blower
(Superseded to 51586600)

$319.99

$

Usually ships in 4-12 days

0

2

Gravely 06439300

Washer-Flat-Steel.38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 07531700

Knob- Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 51511600

Belt Cover

$165.99

$

Usually ships in 4-12 days

0

5

Gravely 05959400

Bolt-Hex .38-16 x .75 - Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308800

Washer-Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06536100

Nut-Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05980600

Bolt-Hex .38-16 x 1.75 - Grade 8

$3.99

$

Usually ships in 4-12 days

0

10

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

Note: (comes with mower deck)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 00169500

Sheave, 3.00 Diameter

Note: (40-Inch Mower Deck)

$20.99

$

In Stock, only 2 left!

0

11

Gravely 00169600

Sheave, 4.00 Diameter

Note: (34-Inch Mower Deck)

$20.99

$

In Stock, only 1 left!

0

12

Gravely 00169800

Assembly, Sheave Adapter

$143.99

$

In Stock, only 2 left!

0

13

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00595800

Spacer, Cover

$77.99

$

Usually ships in 4-12 days

0

15

Gravely 035896

V-Belt
(Superseded to 07212800)

$39.99

$

In Stock, only 1 left!

0

15

Gravely 07212800

V-Belt

Note: (Gravely Part Number)

$39.99

$

In Stock, only 1 left!

0

16

Gravely 00169151

Bracket, Front

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 00168800

Weldment, Front Mount Bracket

$77.99

$

Usually ships in 4-12 days

0

18

Gravely 05946800

Bolt-Hex .25-20 x .75 - Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06114400

Screw-Machine .25-20 x .75

$0.99

$

In Stock, Qty 10

0

20

Gravely 00168600

Weldment, Rear Mount Bracket

$76.99

$

Usually ships in 4-12 days

0

21

Gravely 00168900

Weldment, Housing Mount Right Hand

$81.99

$

Usually ships in 4-12 days

0

22

Gravely 06212100

Bolt-Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

23

Gravely 00169000

Weldment, Housing Mount Left Hand

$100.99

$

Usually ships in 4-12 days

0

24

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
