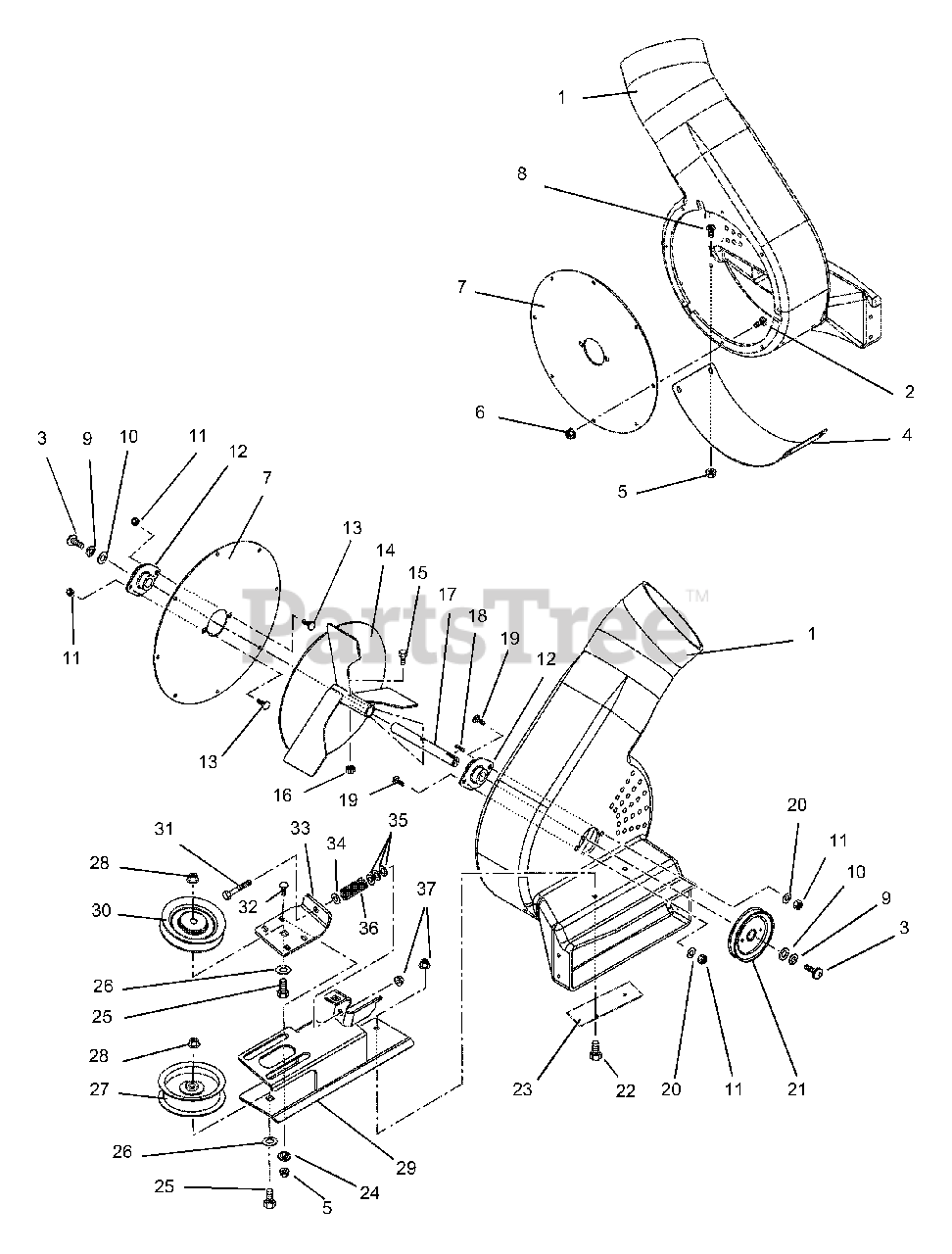

815014 - Ariens Mini-Zoom Bagger (SN: 000101 - 000499) Blower Assembly Parts Diagram

Mini-Zoom Bagger

Blower Assembly Parts Diagram

  • Title

1

Ariens 51511700

BLOWER HSG W/DECAL
(Superseded to 51586600)

$319.99

$

Usually ships in 4-12 days

0

2

Ariens 06100001

SCR-MCH .25-20X.63 TXTR YWZC
(Superseded to 06114400)

$0.99

$

In Stock, Qty 10

0

3

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

4

Ariens 00169951

PLATE, SKID

$

$

Not available

5

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00168051

PLATE, BEARING MOUNT

$86.99

$

Usually ships in 4-12 days

0

8

Ariens 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

11

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$45.99

$

In Stock, only 2 left!

0

13

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00170000

WELDMENT, IMPELLER, 3 BLADE

$139.99

$

In Stock, only 1 left!

0

15

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

17

Ariens 00168700

SHAFT, IMPELLER

$105.99

$

In Stock, only 3 left!

0

18

Ariens 06606000

KEY-SQ .187 X .50 X .187

Note: (026273 - Gravely Part Number)

$10.99

$

In Stock, only 1 left!

0

19

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 00169400

SHEAVE, BLOWER - 4.25 DIA.

$45.99

$

In Stock, only 1 left!

0

22

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

23

Ariens 00174400

PLATE,BACK
(Superseded to 00174451)

$19.99

$

Usually ships in 4-12 days

0

24

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

25

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 00168200

WELDMENT, IDLER MOUNT

$165.99

$

Usually ships in 4-12 days

0

30

Ariens 07327600

V-IDLER, 4.00X.38

$38.99

$

In Stock, Qty 20+

0

31

Ariens 05963200

@BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 00168100

BRACKET, ADJUSTABLE IDLER

$

$

Not available

34

Ariens 06514900

NUT-PUSH .312

Note: (040380 - Gravely Part Number)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

36

Ariens 08312100

SG-COMP .092X.77X3.13 WLD 36

Note: (039129 - Gravely Part Number)

$11.99

$

In Stock, Qty 6

0

37

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 51514700

BLOWER (SERVICE ASSEMBLY)

Note: (includes items 1-37)

$853.99

$

Usually ships in 4-12 days

0
