815012 - Gravely 42", 46" Snow Blower for ZT Series (SN: 001001 & Above) Frame Assembly Parts Diagram

42", 46" Snow Blower for ZT Series

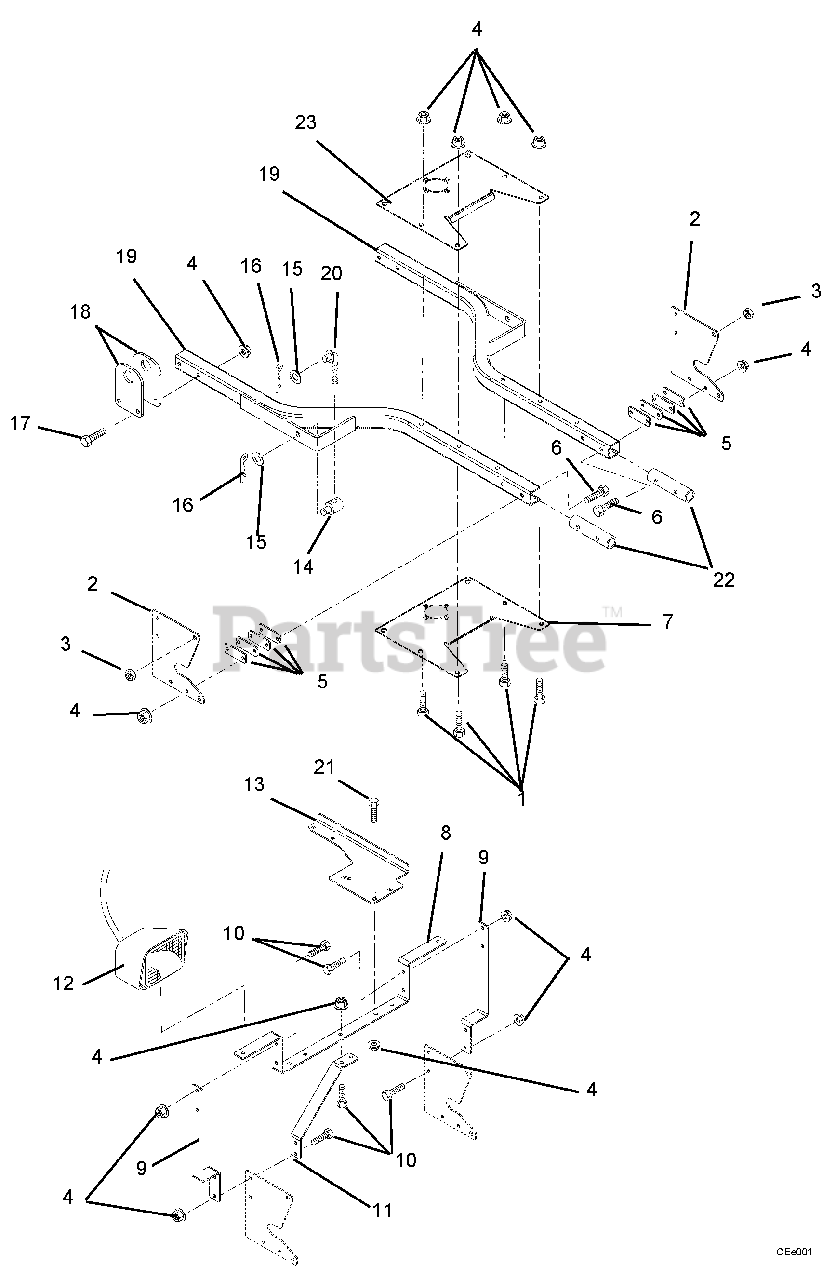

Frame Assembly Parts Diagram

  • Title

1

Gravely 05958400

Hex Bolt, .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

2

Gravely 00263551

Plate, Sno-ThroO Mount

$

$

Not available

3

Gravely 06536300

Nut, Locking, Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06542000

Nut, Locking, Top, Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00264551

Plate, Shim

$

$

Not available

6

Gravely 05957800

Bolt, Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 00260351

Plate, Subframe

$39.99

$

Usually ships in 4-12 days

0

8

Gravely 00263751

Light-Bar, Snow Throw

$

$

Not available

9

Gravely 00263651

Support, Light-Bar, Snow Throw

$

$

Not available

10

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00266151

Gusset, Light-Bar

$

$

Not available

12

Gravely 02463600

Headlight

$83.99

$

Usually ships in 4-12 days

0

13

Gravely 00264451

Bracket, Deflector Control

$

$

Not available

14

Gravely 01590400

Trunnion

$48.99

$

In Stock, only 4 left!

0

15

Gravely 06430200

Flat Steel Washer, .531 x 1.250 x .100
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

Gravely 415543

(Gravely Part Number)
(Superseded to 06441000)

Note: (Gravely Part Number)

$2.99

$

In Stock, Qty 6

0

16

Gravely 06714900

External Hair Pin - #16 Black Zinc

$0.99

$

In Stock, Qty 20+

0

17

Gravely 05958400

Hex Bolt, .38-16 x 2.5 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 00181851

Pivot Bracket

$

$

Not available

19

Gravely 00181751

Weldment, Sub-Frame Tube

$

$

Not available

20

Gravely 02778100

Lift Link

$40.99

$

Usually ships in 4-12 days

0

21

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

22

Gravely 03967500

Tube, Anti-Crush

$

$

Not available

23

Gravely 04446351

Plate, Subframe Top

$25.99

$

Usually ships in 4-12 days

0
