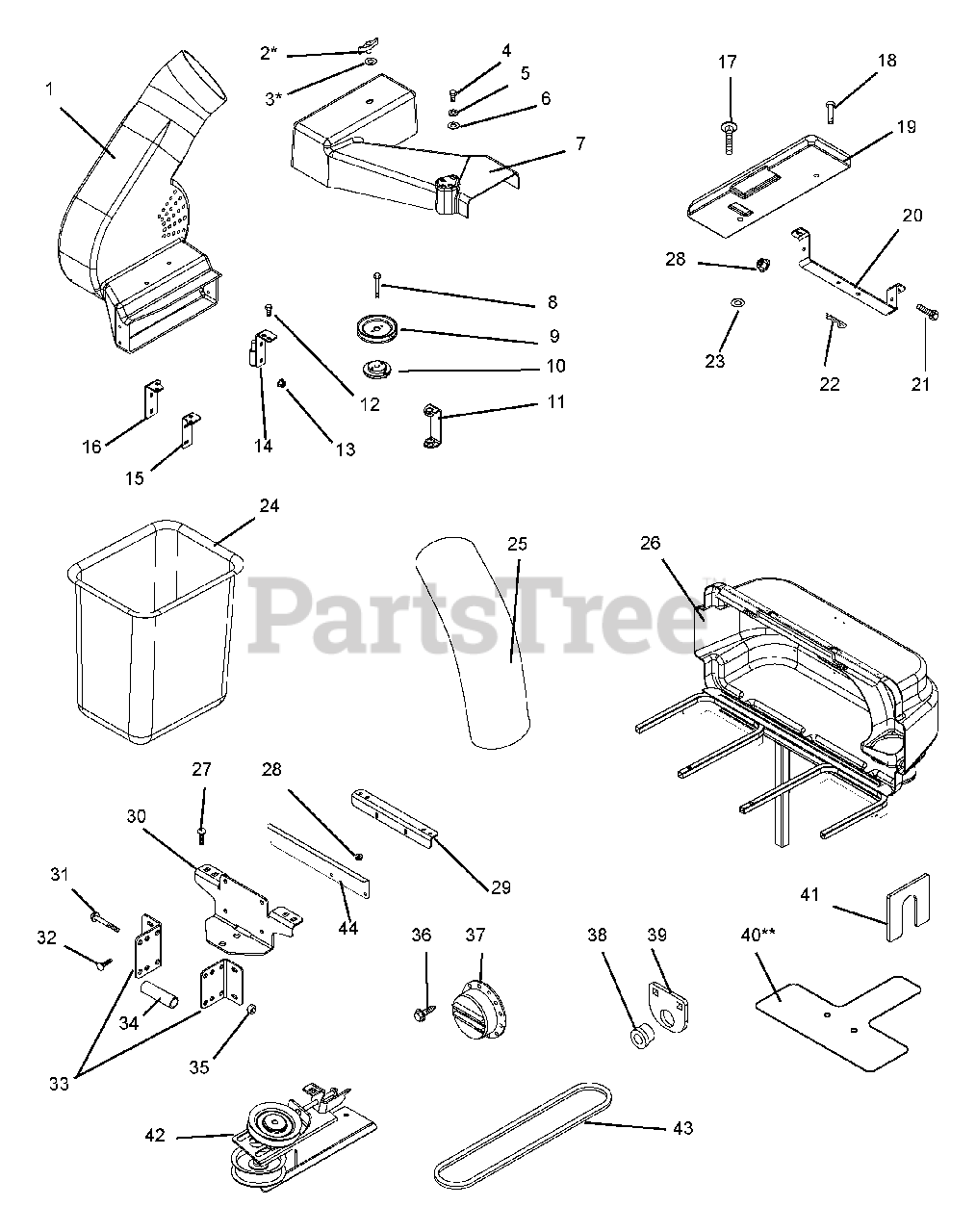

815011 - Gravely ZT Three-Bucket Bagger (SN: 005000 & Above) Three-Bucket Bagger-Assembly Parts Diagram

ZT Three-Bucket Bagger

Three-Bucket Bagger-Assembly Parts Diagram

  • Title

1

Gravely 51514700

Blower Assembly

$853.99

$

Usually ships in 4-12 days

0

2

Gravely 07531700

Wing Knob
(Superseded to 07534800)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06439300

3/8" x 1-1/2" Washer
(Superseded to 06401028)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

4

Gravely 05959400

3/8" x 3/4' Hex Bolt
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06308800

3/8" Lock Washer
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06435900

7/16" x 1" Flat Washer
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 51511600

Belt Cover

$165.99

$

Usually ships in 4-12 days

0

8

Gravely 05980600

3/8" x 1-3/4" Hex Bolt

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 00169500

3-Inch Sheave

Note: (40- and 44-Inch Mower Decks)

$20.99

$

In Stock, only 2 left!

0

9

Gravely 00169600

4-Inch Sheave

Note: (48- and 52-Inch Mower Decks)

$20.99

$

In Stock, only 1 left!

0

10

Gravely 00169800

Sheave Adapter

$143.99

$

In Stock, only 2 left!

0

11

Gravely 00595800

Cover Spacer

$77.99

$

Usually ships in 4-12 days

0

12

Gravely 05946800

1/4" x 3/4" Hex Bolt
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06543500

1/4" Top Lock Flange Nut
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00168600

Rear Mount Weldment Bracket

$76.99

$

Usually ships in 4-12 days

0

15

Gravely 00169151

Front Bracket

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 00168800

Front Mount Weldment Bracket

$77.99

$

Usually ships in 4-12 days

0

17

Gravely 06223600

3/8" x 1" Round Head Square Neck Bolt
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Gravely 041754

Clevis Pin
(Superseded to 06810700)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 00172000

Counterweight

$297.99

$

Usually ships in 4-12 days

0

20

Gravely 01601851

Counterweight Bracket

$28.99

$

Usually ships in 4-12 days

0

21

Gravely 05948700

3/8" x 1" Hex Bolt
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06711900

Hair Pin

$2.99

$

In Stock, only 2 left!

0

23

Gravely 06445000

1/2" x 1-5/8" Flat Washer

$5.99

$

In Stock, only 3 left!

0

24

Gravely 038328

Grass Bagger Basket
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

25

Gravely 00455400

Hose
(Superseded to 04222900)

$129.99

$

In Stock, Qty 10

0

26

NA

Cover Assembly

$

$

Not available

27

Gravely 06224400

3/8" x 2-1/2" Round Head Square Bolt
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

28

Gravely 06542000

3/8" Top Lock Flange Nut
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 01601651

Angle Bracket

$

$

Not available

30

Gravely 51512800

Trailer Hitch

$83.99

$

Usually ships in 4-12 days

0

31

Gravely 05959900

1/2" x 3" Hex Bolt
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

32

Gravely 06224100

3/8" x 1-1/4" Round Head Square Neck Bolt
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

33

Gravely 00200051

Bagger Mount Bracket

$46.99

$

Usually ships in 4-12 days

0

34

Gravely 039598

Pivot Spacer
(Superseded to 03433800)

$

$

Not available

35

Gravely 06543600

1/2" Top Lock Flange Nut
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 07414500

Self-Tapping Screw

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 00171400

Exhaust Deflector

$47.99

$

Usually ships in 4-12 days

0

38

Gravely 036872

Flange Bushing
(Superseded to 05503500)

$12.99

$

In Stock, Qty 20+

0

39

Gravely 00175851

Rear Pivot Bracket

$18.99

$

Usually ships in 4-12 days

0

40

Gravely 00175951

Finger Guard

Note: For 40-inch mower decks only.

$

$

Not available

41

Gravely 00178451

Lift Plate

$7.49

$

Usually ships in 4-12 days

0

42

NA

Idler Assembly

$

$

Not available

43

Gravely 035896

40- and 44-Inch V-Belt
(Superseded to 07212800)

$39.99

$

In Stock, only 1 left!

0

43

Gravely 07217800

48- and 52-Inch V-Belt

$48.99

$

In Stock, only 1 left!

0

44

Gravely 00291551

Exhaust Deflector

$25.99

$

Usually ships in 4-12 days

0
