815011 - Ariens Zoom 3-Bucket Grass Bagger (SN: 005000 & Above) Three-Bucket Bagger-Assembly Parts Diagram

Zoom 3-Bucket Grass Bagger

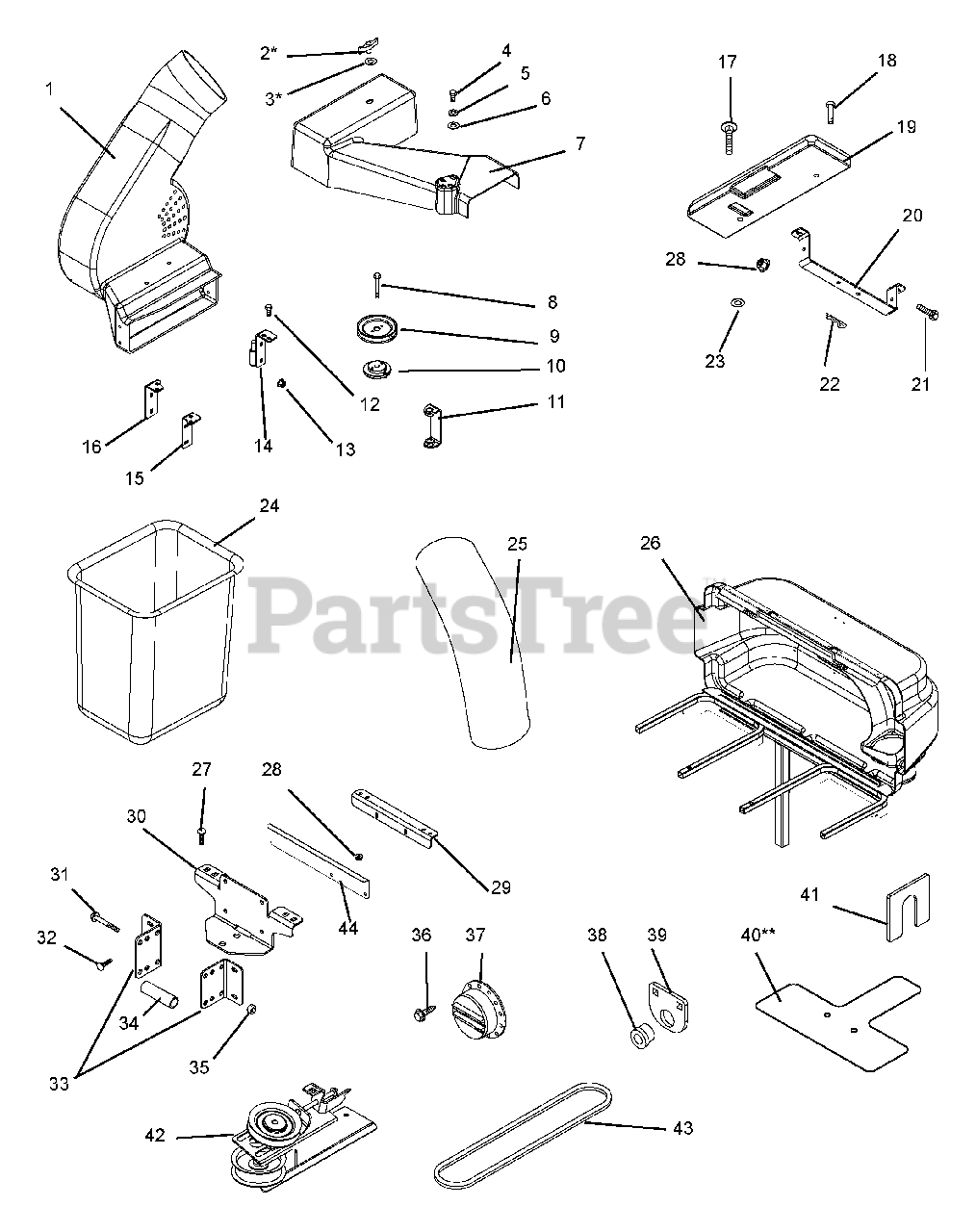

Three-Bucket Bagger-Assembly Parts Diagram

  • Title

1

Ariens 51514700

BLOWER (SERVICE ASSEMBLY)

$853.99

$

Usually ships in 4-12 days

0

2

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

3

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

4

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

5

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 51511600

BELT COVER W/DECAL

$165.99

$

Usually ships in 4-12 days

0

8

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00169500

SHEAVE, 3.00 DIA.

Note: (40- and 44-Inch Mower Decks)

$20.99

$

In Stock, only 2 left!

0

9

Ariens 00169600

SHEAVE, 4.00 DIA.

Note: (48- and 52-Inch Mower Decks)

$20.99

$

In Stock, only 1 left!

0

10

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$143.99

$

In Stock, only 2 left!

0

11

Ariens 00595800

SPACER, COVER

$77.99

$

Usually ships in 4-12 days

0

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 19

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00168600

WELDMENT, REAR MOUNT BRACKET

$76.99

$

Usually ships in 4-12 days

0

15

Ariens 00169151

BRACKET, FRONT

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 00168800

WELDMENT, FRONT MOUNT BRACKET

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Ariens 06810700

PIN-CLEV .494X2.50 BRIGHT ZINC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 00172000

WEIGHT, CAST IRON

$297.99

$

Usually ships in 4-12 days

0

20

Ariens 01601851

BRACKET,WEIGHT

$28.99

$

Usually ships in 4-12 days

0

21

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

23

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

24

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

25

Ariens 00455400

HOSE,7X45 KANAFLEX 165CL
(Superseded to 04222900)

$129.99

$

In Stock, Qty 9

0

26

Cover Assembly

$

$

Not available

27

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

28

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 01601651

BRKT,ANGLE

$

$

Not available

30

Ariens 51512800

TRAILER HITCH W/DECALS

$83.99

$

Usually ships in 4-12 days

0

31

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

32

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

33

Ariens 00200051

BKT,BAGGER MOUNT

$46.99

$

Usually ships in 4-12 days

0

34

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

35

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 00171400

DEFLECTOR,EXHAUST

$47.99

$

Usually ships in 4-12 days

0

38

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

39

Ariens 00175851

BRACKET,REAR PIVOT

$18.99

$

Usually ships in 4-12 days

0

40

Ariens 00175951

GUARD,FINGER

Note: For 40-inch mower decks only.

$

$

Not available

41

Ariens 00178451

PLATE,LIFT

$7.49

$

Usually ships in 4-12 days

0

42

Idler Assembly

$

$

Not available

43

Ariens 07212800

V-BELT, HA-WRAPPED

$39.99

$

In Stock, only 1 left!

0

43

Ariens 07217800

V-BELT, HA-RAW EDGE

$48.99

$

In Stock, only 1 left!

0

44

Ariens 00291551

DEFLECTOR, EXHAUST

$25.99

$

Usually ships in 4-12 days

0
