815009 - Ariens 48" Grass Bagger (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

48" Grass Bagger

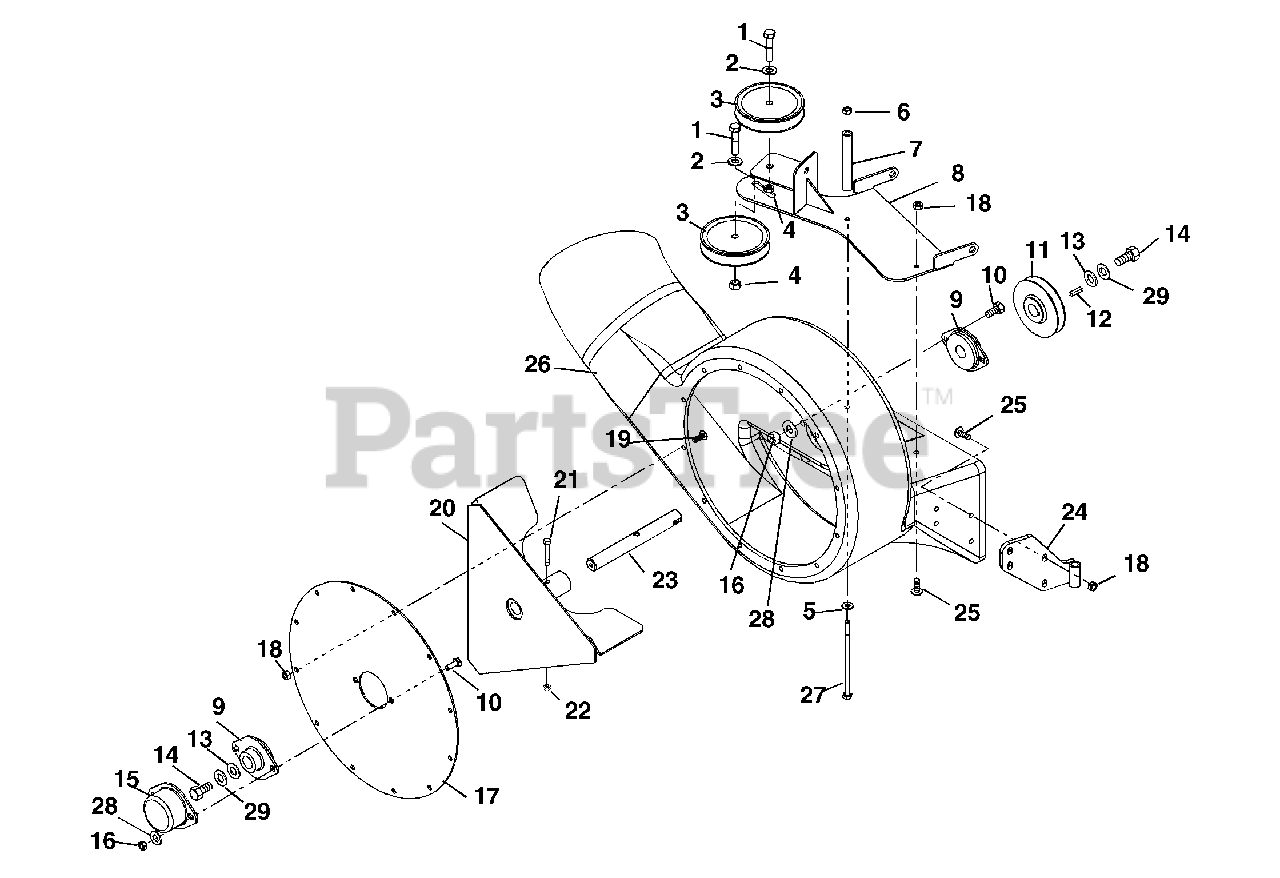

Blower Housing Assembly Parts Diagram

  • Title

1

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

2

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

4

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 03692300

SPACER .334X.500X4.625

$

$

Not available

8

Ariens 03690351

BRACKET COMP-MULE PULLEY

$22.99

$

Usually ships in 4-12 days

0

9

Ariens 03685300

BEARING, 2 BOLT FLANGE -.75 ID

$45.99

$

In Stock, only 2 left!

0

10

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03685400

PULLEY, DRIVEN 3.50

$

$

Not available

12

Ariens 06606000

KEY-SQ .187 X .50 X .187

$10.99

$

In Stock, only 1 left!

0

13

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

14

Ariens 05952300

BLT-HEX .25-28X.75 GR5 YWZC

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 03687400

COVER-BEARING

$41.99

$

Usually ships in 4-12 days

0

16

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03684900

PLATE-BEARING MOUNTING

$

$

Not available

18

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 03685200

IMPELLER, GRASS PUMP

$

$

Not available

21

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03685100

SHAFT, GRASS PUMP - .75 OD

$68.99

$

Usually ships in 4-12 days

0

24

Ariens 03685000

MOUNTING BRACKET COMPLETE

$

$

Not available

25

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

26

Ariens 03684800

HOUSING, BLOWER

$

$

Not available

27

Ariens 05977900

@BLT-HEX .25-20X6.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+
