815008 - Gravely 42" Deck Grass Bagger for ZT Series (SN: 000101 & Above) Bagger Parts Diagram

42" Deck Grass Bagger for ZT Series

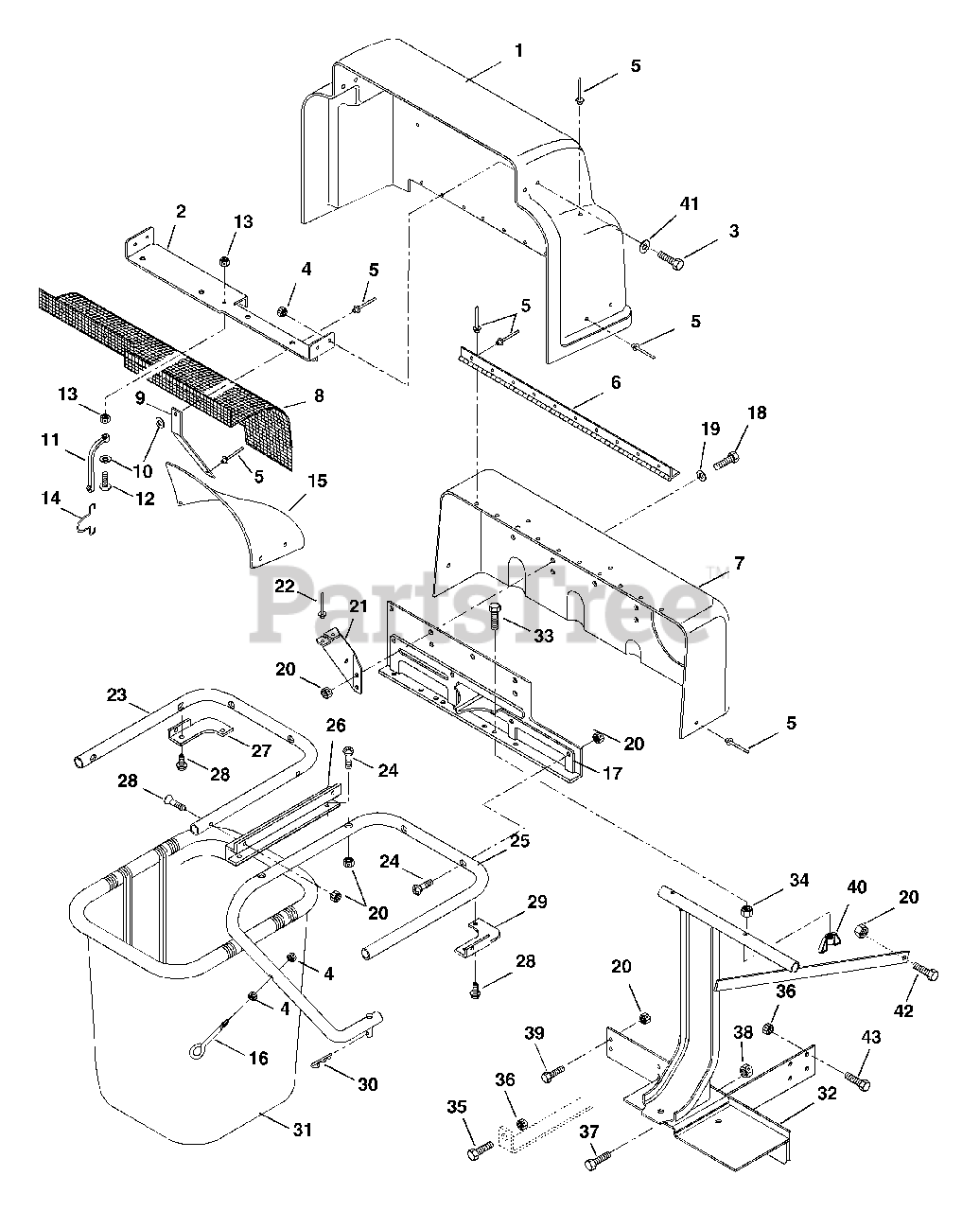

Bagger Parts Diagram

  • Title

1

Gravely 52705600

Hinged Cover w/Decals

$

$

Not available

2

Gravely 02730600

Cover Bracket

$

$

Not available

3

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 2
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

6

Gravely 02725300

Hinge

$

$

Not available

7

Gravely 52705700

Stationary Cover

$

$

Not available

8

Gravely 01585600

Screen

$

$

Not available

9

Gravely 02731100

Brace

$

$

Not available

10

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 035829

Battery Strap
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 06119200

Screw-Machine 10-24 x .88

$

$

Not available

13

Gravely 06536000

Nut-Locking Top 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 035830

Hook
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

15

Gravely 02731200

Baffle

$

$

Not available

16

Gravely 045468

Eyebolt
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 02745800

Mounting Bracket

$

$

Not available

18

Gravely 05947800

Bolt-Hex .31-18 x .88 Grade 2
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 041092

Brace
(Superseded to 02725200)

$

$

Not available

22

Gravely 041098

Rivet-Pop .187 x .527
(Superseded to 06803800)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 02724651

Center Tube

$44.99

$

Usually ships in 4-12 days

0

24

Gravely 06119100

Screw-Machine .31-18 x 1.50

$

$

Not available

25

Gravely 02724800

Right Tube

$

$

Not available

26

Gravely 038323

Tube Bracket
(Superseded to 02724700)

$

$

Not available

27

Gravely 041090

Left Hand Corner Bracket
(Superseded to 02725100)

$

$

Not available

28

Gravely 07411500

Screw-Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 041089

Right Hand Corner Bracket
(Superseded to 02725000)

$

$

Not available

30

Gravely 036075

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

31

Gravely 038328

Grass Bagger Basket
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

32

Gravely 01545400

Bagger Frame
(Superseded to 01586951)

$

$

Not available

33

Gravely 05970900

Bolt-Hex .31-18 x 1.50 Grade 2

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 06529200

Nut-Hex .31-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

35

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06529600

Nut-Locking-Center .38-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

38

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

39

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 06537100

Nut-Wing .312-18

$5.99

$

In Stock, only 1 left!

0

41

Gravely 06437300

Washer-flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

43

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
