815006 - Gravely Front Blade for ZT Series (SN: 000101 & Above) Carriage & Frame Parts Diagram

Front Blade for ZT Series

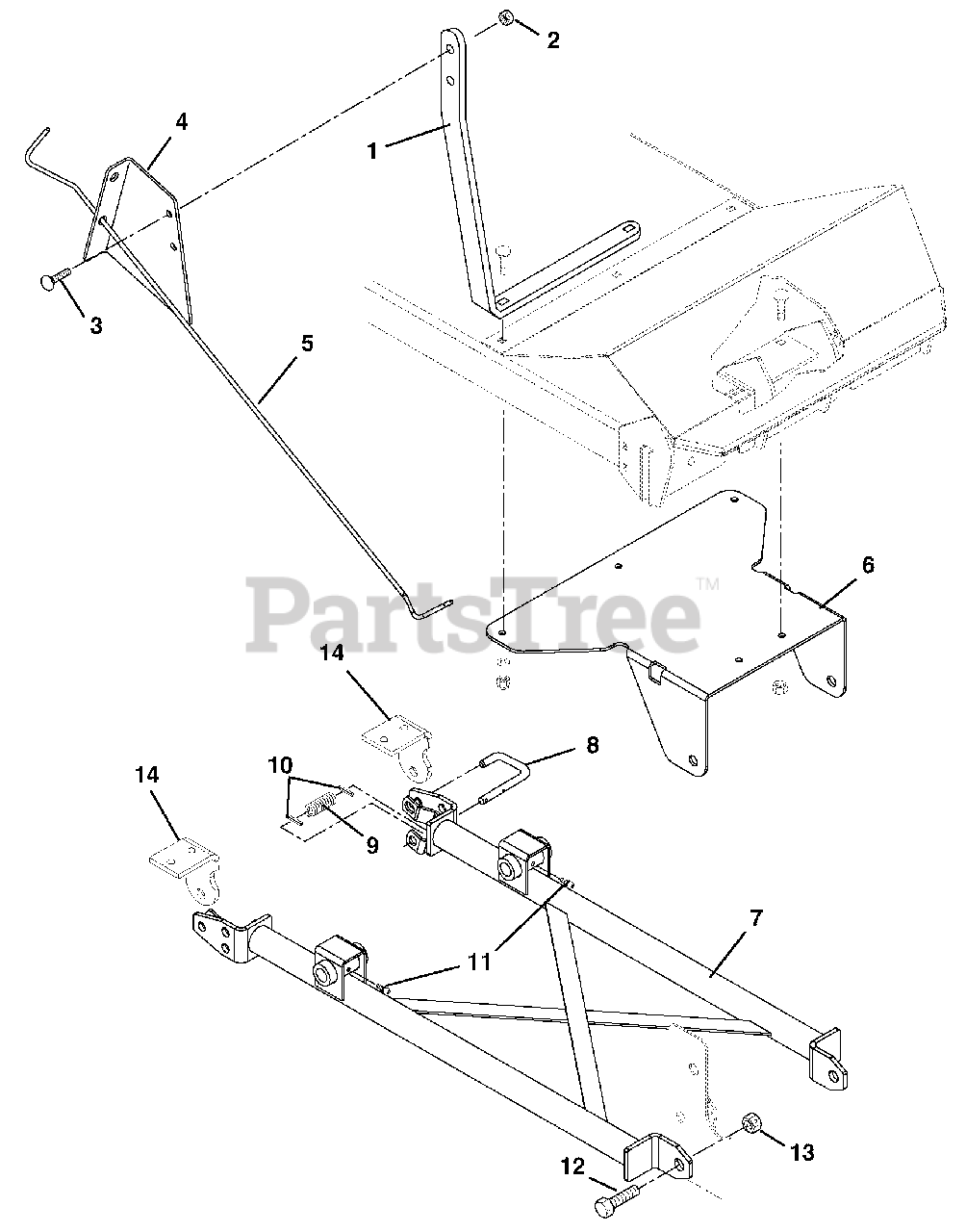

Carriage & Frame Parts Diagram

  • Title

1

Gravely 01560051

Control Support

$

$

Not available

2

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06212000

Bolt-Round Head Square Short Neck .38-16 x .75
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 03630400

Control Bracket
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 01541600

Rod, Control

$

$

Not available

6

Gravely 01532700

Hanger Bracket

$

$

Not available

7

Gravely 01541800

Support Weldment

$

$

Not available

8

Gravely 03584700

Latch Pin

$

$

Not available

9

Gravely 08325900

Spring-Compression .058 x .65 x 2.13

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 05803400

Pin-Roll .125 x .75

$0.99

$

In Stock, Qty 16

0

11

Gravely 07012600

Fitting-Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

12

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

In Stock, only 3 left!

0

13

Gravely 06535300

Nut-Locking-Center .62-11 Grade 2

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 01519500

Rear Bracket
(Superseded to 01519551)

Note: (For models 915013, 015, 307)

$

$

Not available
