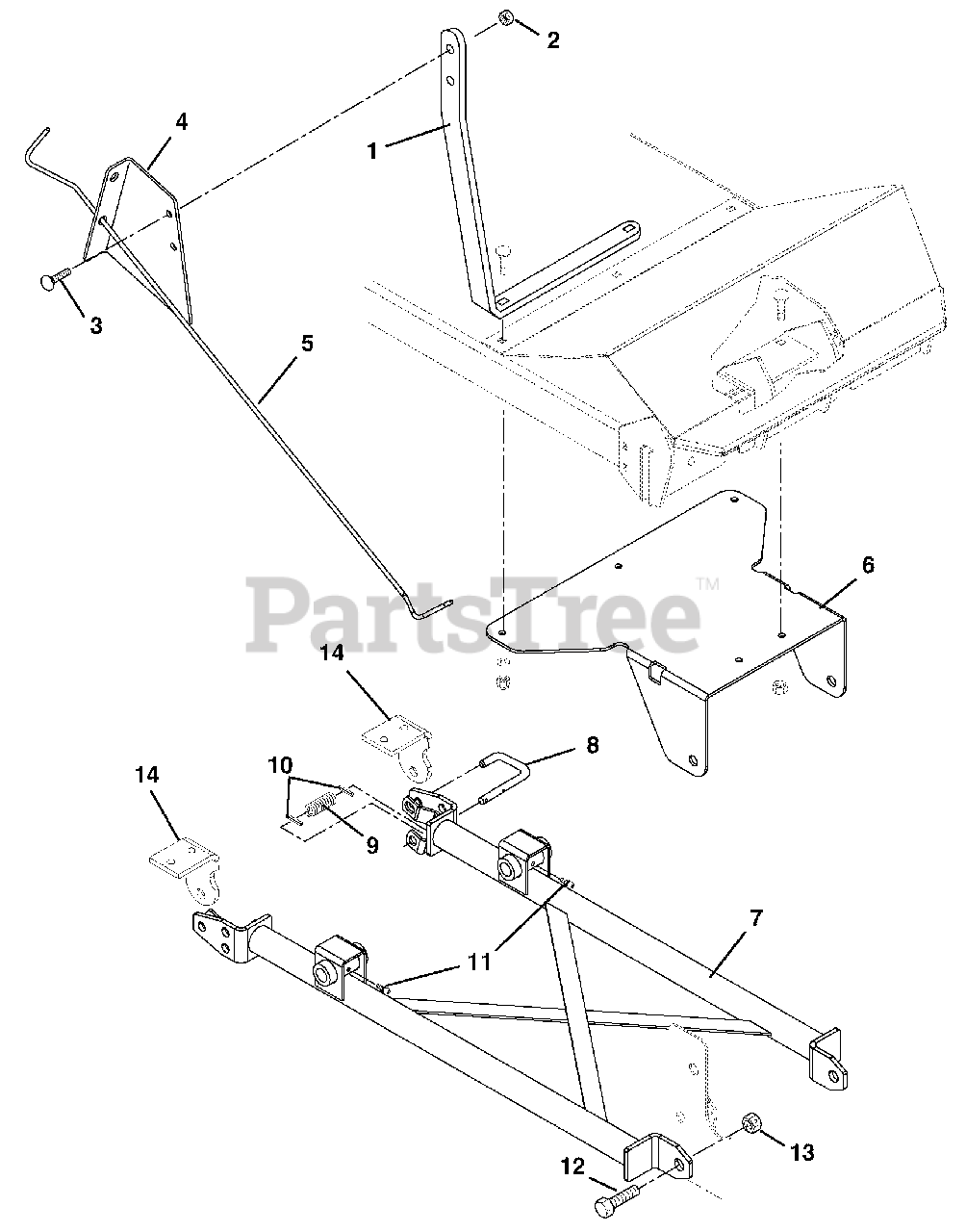

815006 - Ariens EZR Front Dozer Blade (SN: 000101 & Above) Carriage & Frame Parts Diagram

EZR Front Dozer Blade

Carriage & Frame Parts Diagram

  • Title

1

Ariens 01560051

CONTROL SUPPORT

$

$

Not available

2

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 03630400

CONTROL BRACKET
(Superseded to 03630443)

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 01541600

ROD, CONTROL

$

$

Not available

6

Ariens 01532700

HANGER BRACKET

$

$

Not available

7

Ariens 01541800

SUPPORT WELDMENT

$

$

Not available

8

Ariens 03584700

LATCH PIN

$

$

Not available

9

Ariens 08325900

SPRG, COMP .058X.65X2.13 WLD15

$9.49

$

Usually ships in 4-12 days

0

10

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

11

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

12

Ariens 05968700

@BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, only 3 left!

0

13

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

14

Ariens 01519500

REAR HANGER
(Superseded to 01519551)

Note: (For models 915013, 015, 307)

$

$

Not available
