815005 - Gravely 40" Deck Grass Bagger for ZT Series (SN: 000101 & Above) Bagger Parts Diagram

40" Deck Grass Bagger for ZT Series

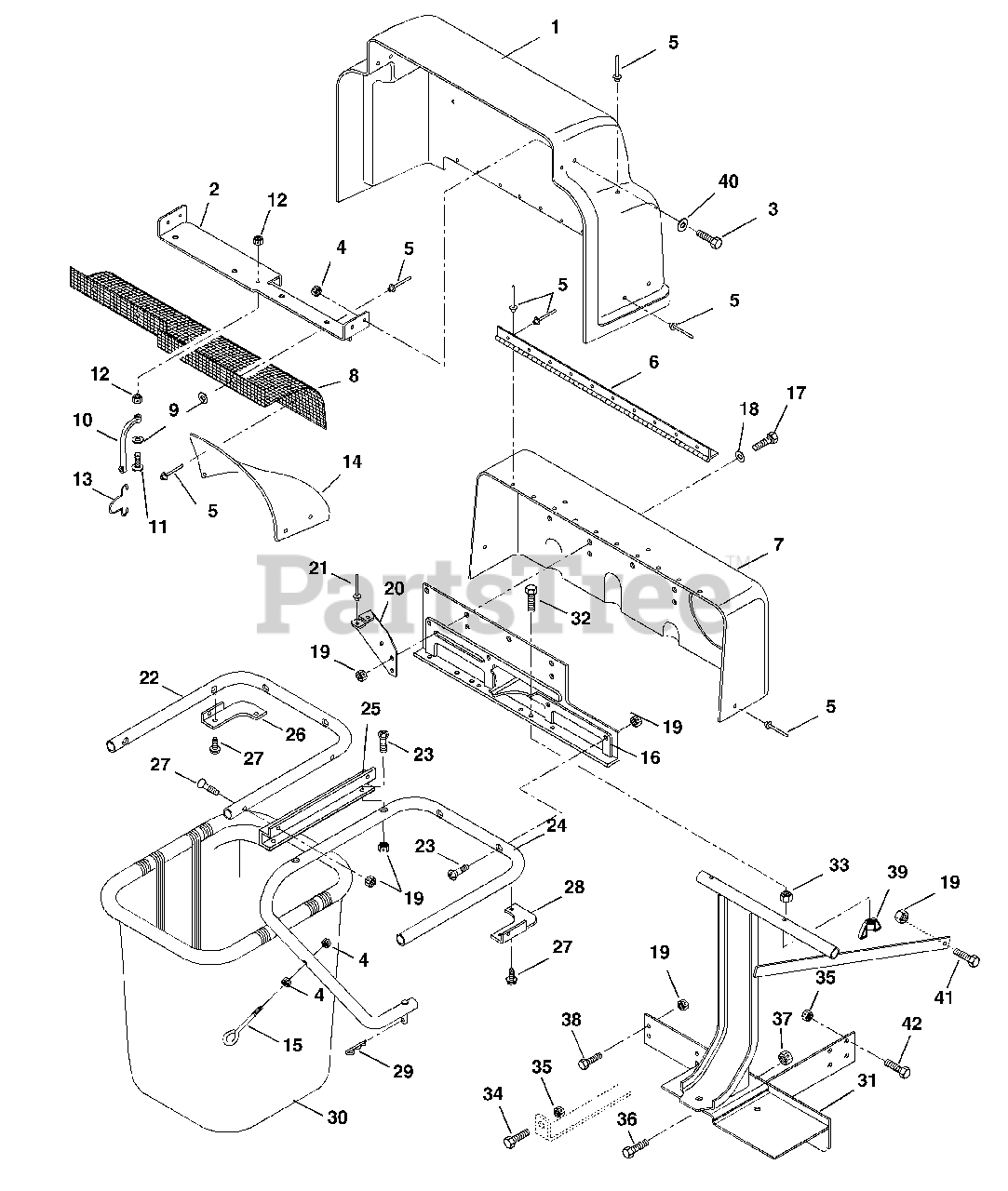

Bagger Parts Diagram

  • Title

1

Gravely 52705600

Hinged Cover w/Decals

$

$

Not available

2

Gravely 02730600

Cover Bracket

$

$

Not available

3

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 2
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06802500

Rivet-Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

6

Gravely 02725300

Hinge

$

$

Not available

7

Gravely 52705700

Stationary Cover

$

$

Not available

8

Gravely 02730500

Screen

$

$

Not available

9

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

10

Gravely 07507500

Battery Strap

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 06119200

Screw-Machine 10-24 x .88

$

$

Not available

12

Gravely 06536000

Nut-Locking Top 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 02738100

Hook

$6.99

$

In Stock, Qty 5

0

14

Gravely 02731200

Baffle

$

$

Not available

15

Gravely 02440100

Eyebolt

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 02745800

Mounting Bracket

$

$

Not available

17

Gravely 05947800

Bolt-Hex .31-18 x .88 Grade 2
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 06439400

Washer-Flat-Steel .328 x .875 x .062

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 06529800

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 02725200

Brace

$

$

Not available

21

Gravely 06803800

Rivet-Pop .187 x .527

$1.49

$

In Stock, Qty 20+

0

22

Gravely 02724651

Center Tube

$44.99

$

Usually ships in 4-12 days

0

23

Gravely 06119100

Screw-Machine .31-18 x 1.50

$

$

Not available

24

Gravely 02724800

Right Tube

$

$

Not available

25

Gravely 02724700

Tube Bracket

$

$

Not available

26

Gravely 02725100

Left Hand Corner Bracket

$

$

Not available

27

Gravely 07411500

Screw-Tapping .31-18 x .50
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 02725000

Right Hand Corner Bracket

$

$

Not available

29

Gravely 06701000

Pin-Hair Internal .08 x .38 x 1.42
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

30

Gravely 02724400

Grass Bagger Basket

$79.99

$

Usually ships in 4-12 days

0

31

Gravely 01545400

Bagger Frame
(Superseded to 01586951)

$

$

Not available

32

Gravely 05970900

Bolt-Hex .31-18 x 1.50 Grade 2

$2.99

$

Usually ships in 4-12 days

0

33

Gravely 06529200

Nut-Hex .31-18 Grade 2
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

34

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06529600

Nut-Locking-Center .38-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

37

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

38

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06537100

Nut-Wing .312-18

$5.99

$

In Stock, only 1 left!

0

40

Gravely 06437300

Washer-flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 05947500

Bolt-Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

42

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
